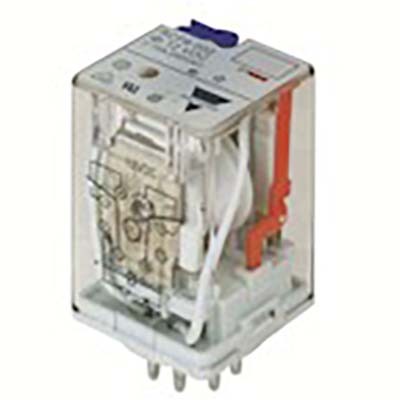

Carlo Gavazzi RCP8002115/120VAC DPDT Socket Mount Octal Relay Plug In 10 A REPLACEMENT RCP8002115120VAC

Product Description

The CARLO GAVAZZI RCP8002115/120VAC is a general purpose relay that provides a reliable switching solution. It features a DPDT contact form, a current rating of 10 A, and is designed for socket mounting with an 8-Pin Octal termination. The relay has a control coil voltage of 115Vac/120Vac and IP40 degree of protection.

• DPDT Contact Form
• Socket Mount with 8-Pin Octal Termination
• 10 A Current Rating

Product Highlights

The CARLO GAVAZZI RCP8002115/120VAC relay is an industrial electromechanical relay with 2-poles (2P) and 2C/O / DPDT contacts. It is designed for PCB connections and plug-in socket mounting.

Product Information

Standard Information

• Brand: CARLO GAVAZZI
• Manufacturer Part Number: RCP8002115/120VAC

Technical Specifications

• Brand: Carlo Gavazzi, Inc.
• Contact Form: DPDT
• Current Rating: 10 A
• Manufacturer Part Number: RCP8002115/120VAC
• Mounting Type: Socket Mount
• Number of Pins: 8
• Series: 740 Series
• Termination: 8-Pin Octal
• Main function: Relay
• Product series / family name: RCP series
• Functions: Industrial electromechanical relay
• Poles: 2-poles (2P)
• Rated current: 10A (250Vac/30Vdc; contact rating; with resistive load)
• Rated power (HP): 1/3HP (120Vac nom.; UL rating)
• Rated Voltage (DC): 240Vdc (max. switching)
• Rated voltage (AC): 500Vac (max. switching)
• Connection type: PCB connections
• Control Voltage (AC): 115Vac/120Vac
• Control Voltage (DC): Pick-up voltage 88Vac (+20°C)
• Mounting mode: plug-in (octal/8-pins) socket mounting
• Speed: Release time at nom. voltage 25ms max.
• Contacts type: 2C/O / DPDT (Double Pole Double Throw) / 2-form-C
• Degree of protection: IP40
• Material: AgSnO2
• Order code / Manufacturer SKU: RCP8002115/120VAC
• Manufacturer product status: Commercialized
• Equivalent to: RCP8002115120VAC
• Compliant with standard(s): UL (E60304)
• Degree of pollution: 2
