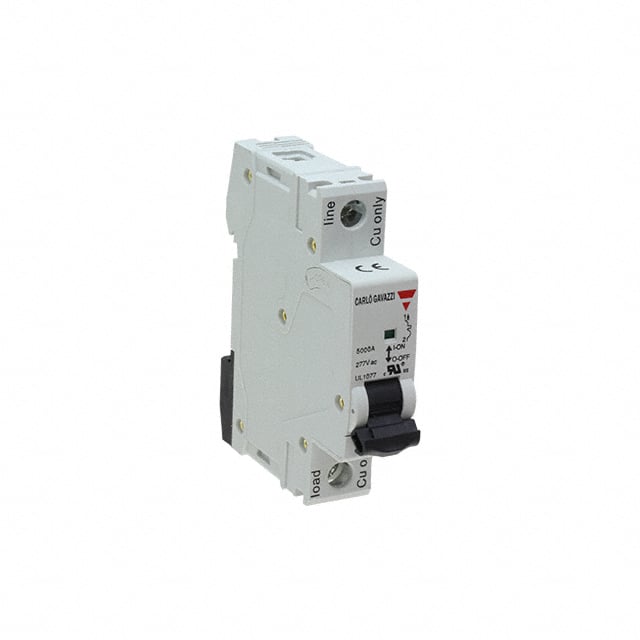

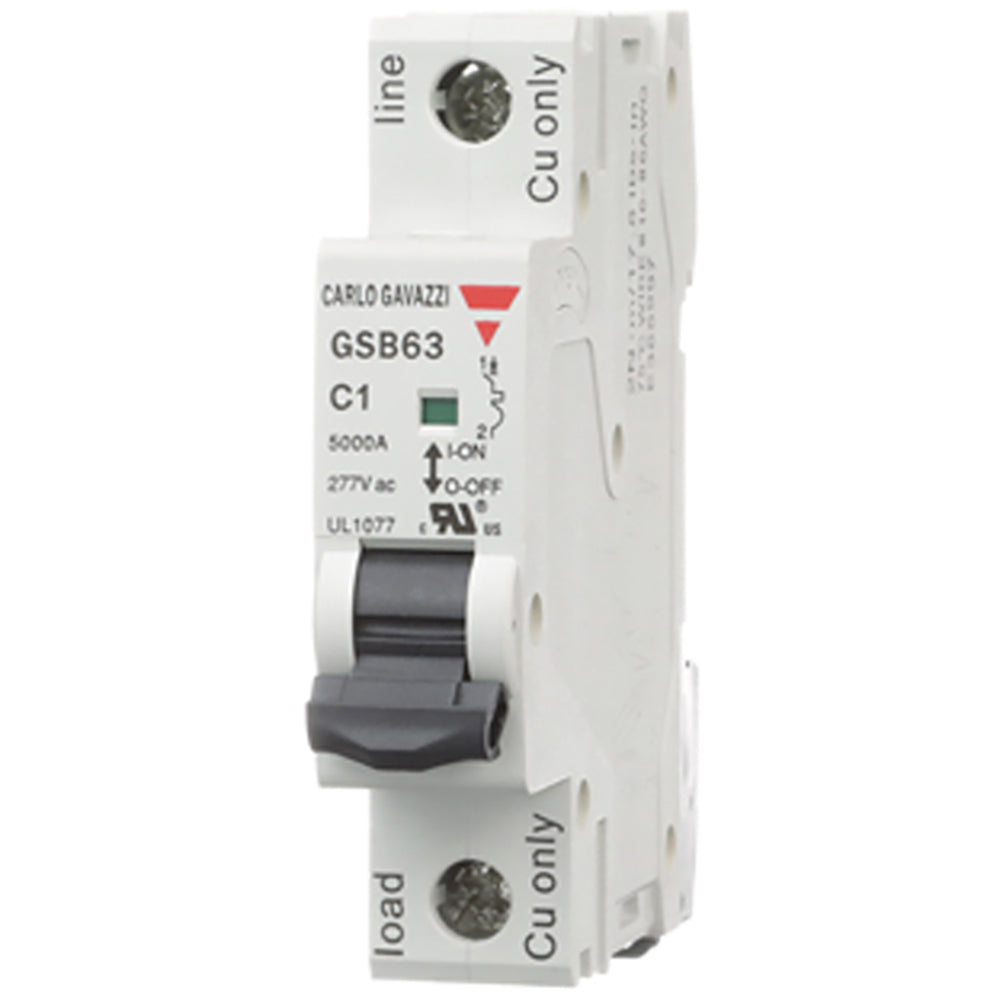

Carlo Gavazzi GSB631PC4 Thermal Magnetic Circuit Breaker 4 A (1 Pole)

Product Description

Carlo Gavazzi GSB631PC4 is a thermal-magnetic circuit breaker rated 4 A and 277 VAC, designed for DIN-rail mounting. The single-pole device provides overload and short-circuit protection using bimetallic and magnetic trip elements and is specified with a C-curve characteristic. It includes a lever actuator, UL 1077 supplementary approval, 5 kA breaking capacity, 500 VAC insulation, and fits EN 60715 35 mm DIN rails for panel-level protection.

• Single-pole thermal-magnetic breaker, 4 A current rating, 277 VAC, DIN-rail mount
• C-curve trip characteristic with UL 1077 approval and 5 kA breaking capacity
• Lever actuator, 500 VAC insulation voltage, IP20 enclosure, fits EN 60715 35 mm DIN rail

Product Highlights

Single-pole 4 A thermal-magnetic DIN-rail breaker with C-curve trip, UL 1077 approval, and 5 kA breaking capacity.

Product Information

Standard Information

• Brand: CARLO GAVAZZI
• Manufacturer Part Number: GSB631PC4

Technical Specifications

• Manufacturer: Carlo Gavazzi
• Manufacturer Part Number: GSB631PC4
• Series: GSB63
• Current Rating: 4 A
• Number of Poles: 1 Pole
• Voltage Rating: 277 VAC
• Mounting Type: DIN rail (EN 60715 35 mm)
• Breaker Type: Thermal magnetic
• Trip Curve: C Curve
• Approval: UL 1077
• Breaking Capacity: 5 kA
• Insulation Voltage: 500 VAC
• Rated Frequency: 50/60 Hz
• Actuator Type: Lever
• IP Rating: IP20
• Connection: Line-in top, line-out bottom
• RoHS Status: RoHS compliant
