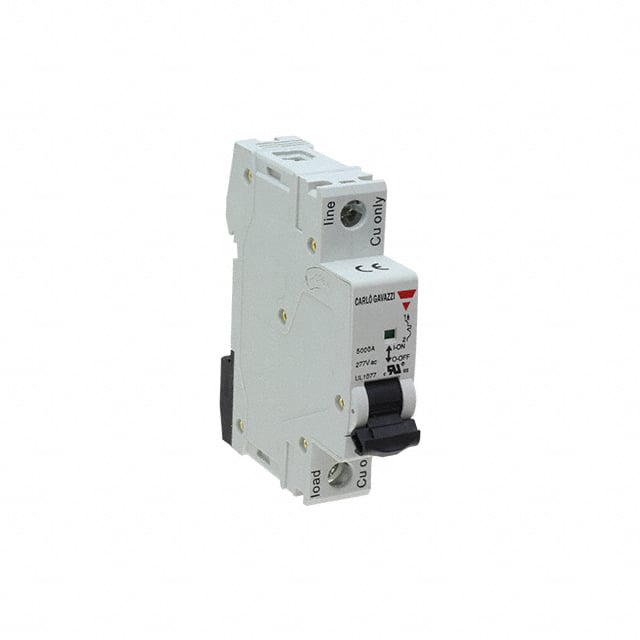

Carlo Gavazzi GSB631PC2 Circuit Breaker 2 A (Pack 12) 225-GSB631PC2

Product Description

Carlo Gavazzi GSB631PC2 is a miniature thermal-magnetic circuit breaker in the GSB63 series rated at 2 A with a C trip curve and UL1077 supplementary approval. The single-pole device is DIN-rail mountable and provides overload and short-circuit protection with a rated breaking capacity of 5 kA and insulation voltage of 500 VAC. Voltage ratings include 277 VAC (single-phase) and up to 480 V for AC/DC systems.

• Thermal-magnetic single-pole breaker, 2 A rating, C trip curve, UL1077 certified
• DIN-rail mounting (EN 60715 35 mm), line-in top and line-out bottom connections, IP20
• Rated breaking capacity 5 kA; insulation voltage 500 VAC; rated for 277 VAC and up to 480 V AC/DC

Product Highlights

GSB63 series 1P miniature circuit breaker; 2 A C-curve; UL1077 supplementary protection; DIN-rail mount; 5 kA breaking capacity.

Product Information

Standard Information

• Brand: CARLO GAVAZZI
• Manufacturer Part Number: GSB631PC2
• Country of Origin: China

Technical Specifications

• Manufacturer: Carlo Gavazzi
• Manufacturer Part Number: GSB631PC2
• Series: GSB63
• Product Category: Circuit Breakers
• Description: Miniature thermal-magnetic circuit breaker, UL1077 supplementary protector
• Number of Poles: 1 (single pole)
• Trip Curve: C
• Rated Current: 2 A
• Breaker Type: Thermal magnetic
• Standards/Certification: UL1077
• RoHS Status: RoHS3 compliant
• Mounting Type: DIN rail (EN 60715 35 mm)
• Voltage Rating (AC/DC): 277 VAC (single-phase); up to 480 V AC/DC
• Insulation Voltage: 500 VAC
• Rated Frequency: 50/60 Hz
• Rated Breaking Capacity: 5 kA
• Short Circuit Capacity (Icn): 5 kA
• IP Rating: IP20
• Actuator Type: Lever
• Connection: Line-in on top, line-out on bottom
• Packaging: Bulk (factory pack quantity: 12)
• Factory Pack Quantity: 12
• Mounting Orientation: Vertical on DIN rail
• Base Product Number: GSB631
• Mouser Part Number: 225-GSB631PC2
• DigiKey Part Number: 1864-2324-ND
• Moisture Sensitivity Level (MSL): Not Applicable
• Country of Origin: China
