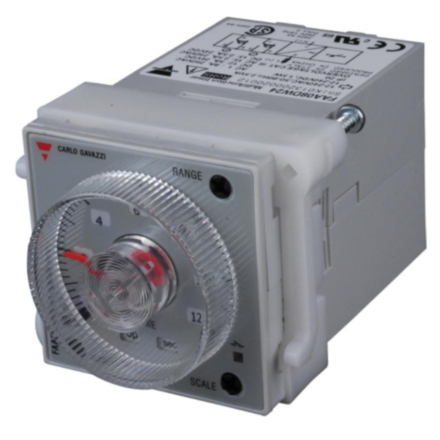

Carlo Gavazzi FAA08DW24 Multifunctions Timer 0.05 s to 300 hr

Product Description

The CARLO GAVAZZI FAA08DW24 is a multifunction timer with selectable time ranges from 0.05 seconds to 300 hours. This timer features a 48x48mm housing with 8 pins and offers 4 operating modes: delay on operate, symmetrical recycler ON first, interval, and one shot. It has LED indication for relay status and power supply.

• Time range of 0.05 seconds to 300 hours
• Knob selection of time range and adjustable time setting
• 48 x 48 mm housing for front panel mounting

Product Highlights

The FAA08 series timer has automatic start and +/-0.2% on full-scale repeatability. Certifications include UL Listed, CSA, and CE.

Product Information

Standard Information

• Brand: CARLO GAVAZZI
• Manufacturer Part Number: FAA08DW24

Technical Specifications

• Amperage Rating: 8 A
• Certifications: UL Listed | CSA |CE
• Contact Form: 2 Form C DPDT
• Display Type: LED
• Enclosure Type: IP50
• Mounting Type: Front/Socket
• Number of Pins: 8
• Series: FAA08
• Temperature Rating: -10 to 55 deg C
• Time Setting: 0.05 s to 300 hr
• Type: Multifunctions Timer
• Voltage Rating: 12 to 240 V AC/DC
