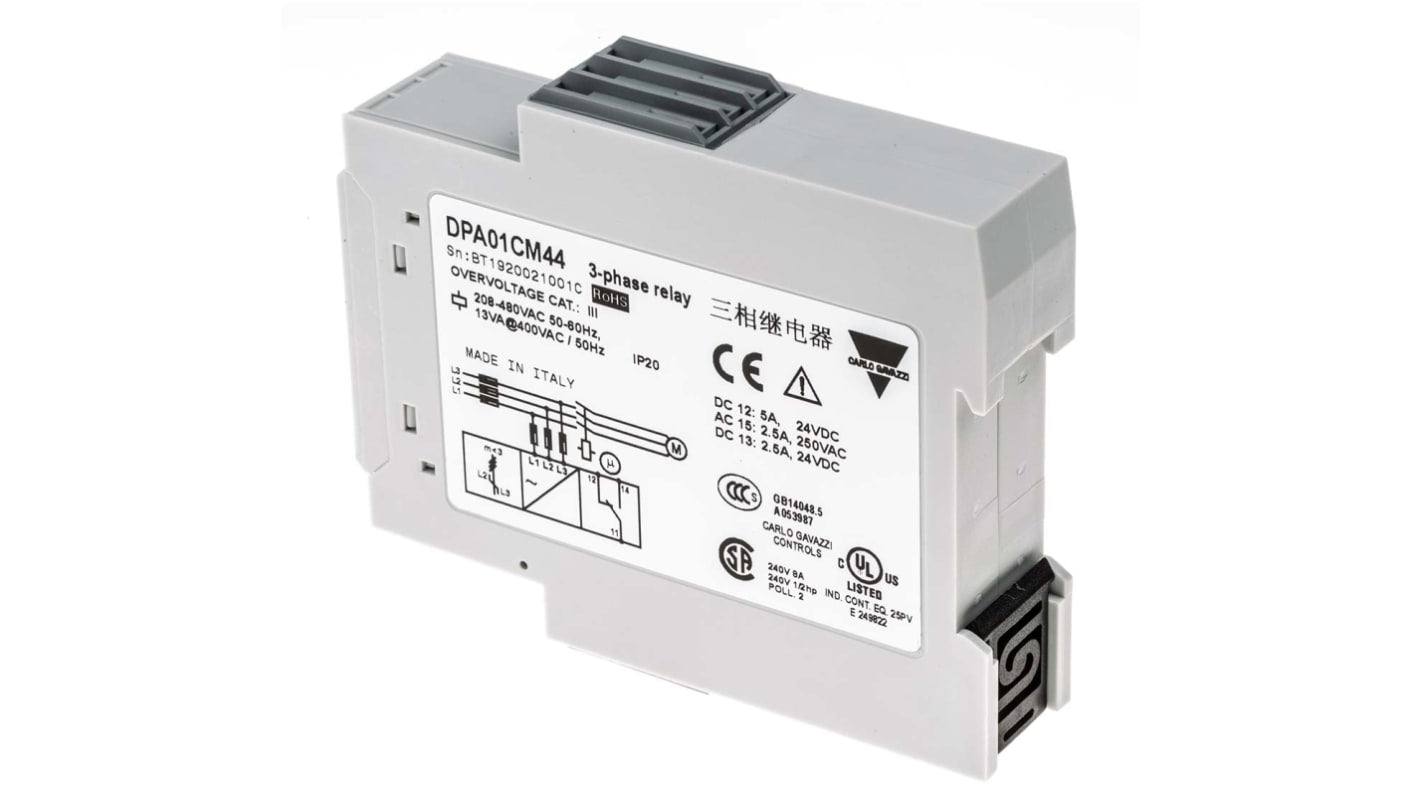

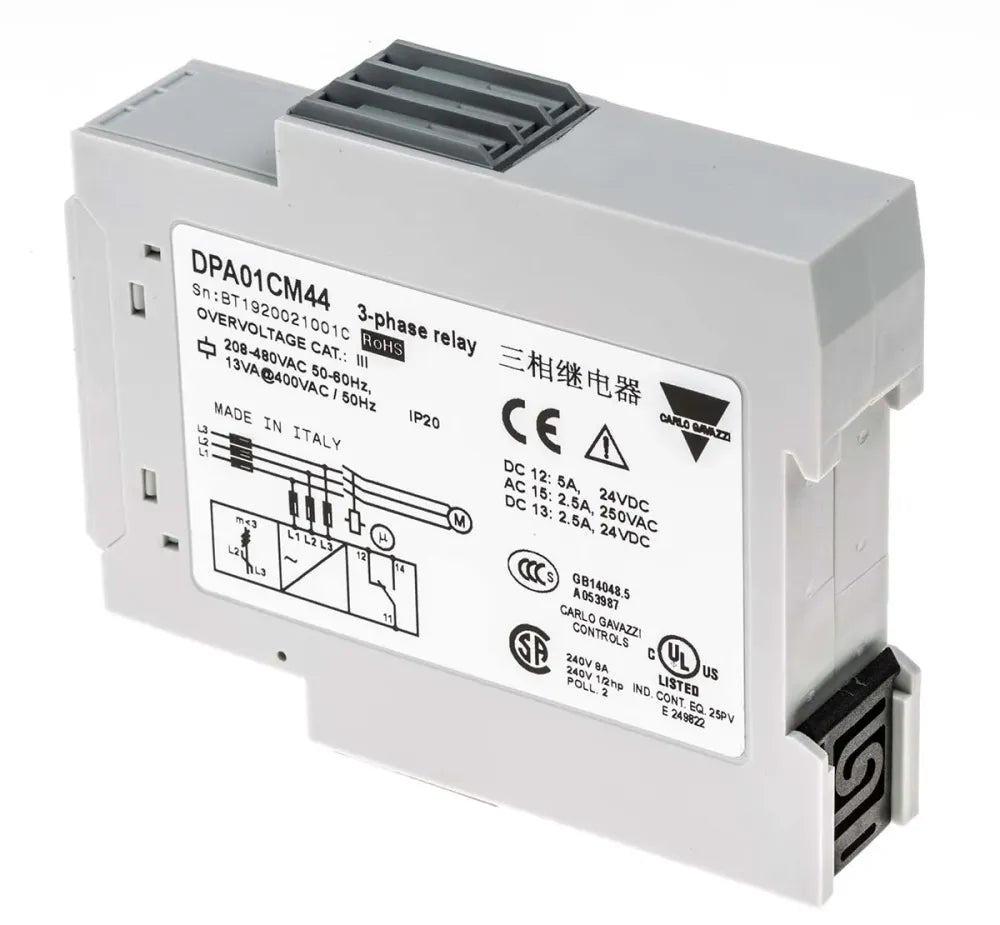

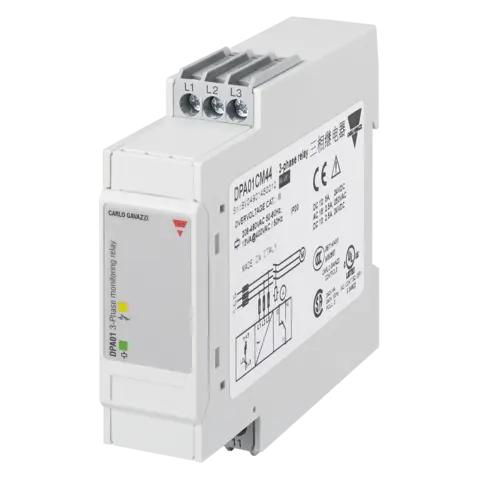

Carlo Gavazzi DPA01CM44 Phase, Voltage Monitoring Relay 208-480 V AC

Product Description

The CARLO GAVAZZI DPA01CM44 is a 3-phase loss and sequence monitoring relay with a nominal range of 208-480 V AC. It features an SPDT relay output, regenerated voltage detection, and a 22.5 mm DIN-rail housing. This relay is designed for industrial DIN-rail mounting and provides reliable phase loss and phase sequence monitoring.

• 3-phase loss monitoring
• Phase sequence monitoring
• Nominal range 208-480 V AC
• SPDT relay output
• Regenerated voltage detection
• 22.5 mm DIN-rail housing

Product Highlights

Phase loss and sequence monitoring relay with SPDT relay output and DIN-rail housing.

Product Information

Standard Information

• Brand: CARLO GAVAZZI
• Manufacturer Part Number: DPA01CM44
• Country of Origin: IT

Technical Specifications

• Mounting: Industrial DIN-rail
• Function: Phase loss; Phase sequence
• 3-phase voltage range: 208-240 Vac; 208-480 Vac; 380-480 Vac; 440-480 Vac
• Frequency range: 50-60 Hz
• Output: 1 relay
• Time delay: No delay adjustment
• Voltage - Supplied: 208 ~ 480VAC
• Manufacturer: Carlo Gavazzi Inc.
• Output Type: Relay
• Series: DPA01
• Circuit: SPDT (1 Form C)
• Contact Rating @ Voltage: 8A @ 250VAC
• Product Status: Active
• Mounting Type: DIN Rail
• Type: Phase Loss, Phase Sequence
• Operating Temperature: -20 C ~ 50 C
• Base Product Number: DPA01C
• Trip Range: 177 ~ 550V AC
• Electrical Phase: 3
• Contact Configuration: SPDT
• Power Consumption: 10VA
• Terminal Type: Screw
• IP Rating: IP20
• Monitoring Voltage Range: 177/550 V ac
• Minimum Operating Temperature: -20 C
• Contact Current: 8A
• Maximum Operating Temperature: 60 C
• Standards/Approvals: EN 61000-6-3, IEC 60664, CSA, RoHS, IEC 60038, UL EN 61000-6-2
• Monitoring Application: Phase, Voltage
• Voltage Sensing Range: 177 - 550V ac
• Phase Sensitivity: Phase Loss, Phase Sequence
• Maximum Voltage Sensed: 550V ac
• Minimum Voltage Sensed: 177V ac
