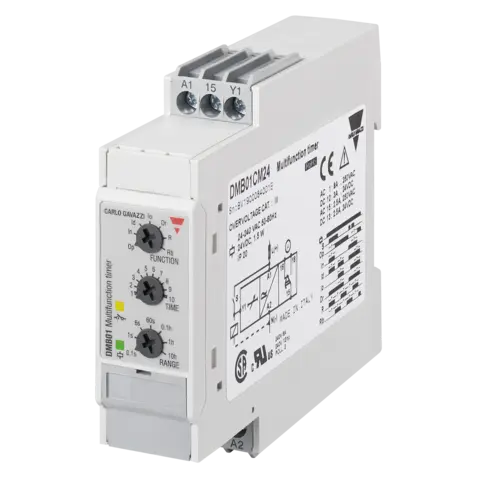

Carlo Gavazzi DMB01CM24 Multifunction Timer 24VDC 24-240VAC

Product Description

The CARLO GAVAZZI DMB01CM24 is a multifunction timer with knob-selectable functions and time ranges from 0.1s to 100h. Suitable for DIN rail mounting, it features a 22,5x80x99,5mm Euronorm housing and screw terminals for connection. The timer supports a supply voltage of 24-240Vac and 24Vdc and includes an 8A SPDT relay output.

• Multifunctions Timer
• DIN rail mount
• Selectable time ranges 0,1s - 100h

Product Highlights

Multi-voltage timer with knob-selectable functions and time ranges. Designed for DIN rail mounting.

Product Information

Standard Information

• Brand: CARLO GAVAZZI
• Manufacturer Part Number: DMB01CM24
• Country of Origin: Italy

Technical Specifications

• Mounting: Industrial DIN-rail
• Trigger input: Automatic; Manual
• Interval sub-function: Double interval; Interval on trigger open
• Recycler sub-function: Symmetrical recycler
• Output: 1 relay
• Manufacturer Part Number: DMB01CM24
• Manufacturer: Carlo Gavazzi, Inc.
• UNSPSC Code: 39120000
• Unit of Measure: EA
• Series: 640 Series
• Function: Multi-Function
• Current Rating: 8 A
• Analog/Digital: Analog
• Modes: 7 Mode
• Poles: SPDT
• Size: 22.5 mm
• Type of Product: Timer
• All - Voltage: 24VDC, 24-240VAC
• Brand: Carlo Gavazzi
• MPN: DMB01CM24
• Country of Origin: Italy
• Product Range: DMB01 Series
• Timer Functions: Multifunction
• Time Min: 0.1s
• Time Max: 100h
• No. of Timing Ranges: 7Ranges
• Timer Output: 1 Changeover Relay
• Supply Voltage Max: 240VAC
• Current Rating Nom: 8A
• Connection / Termination: Screw Terminals
• SVHC: No SVHC (21-Jan-2025)
• RoHS Compliant: Yes
• RoHS Phthalates Compliant: Yes
• US ECCN: Unknown
• EU ECCN: Unknown
