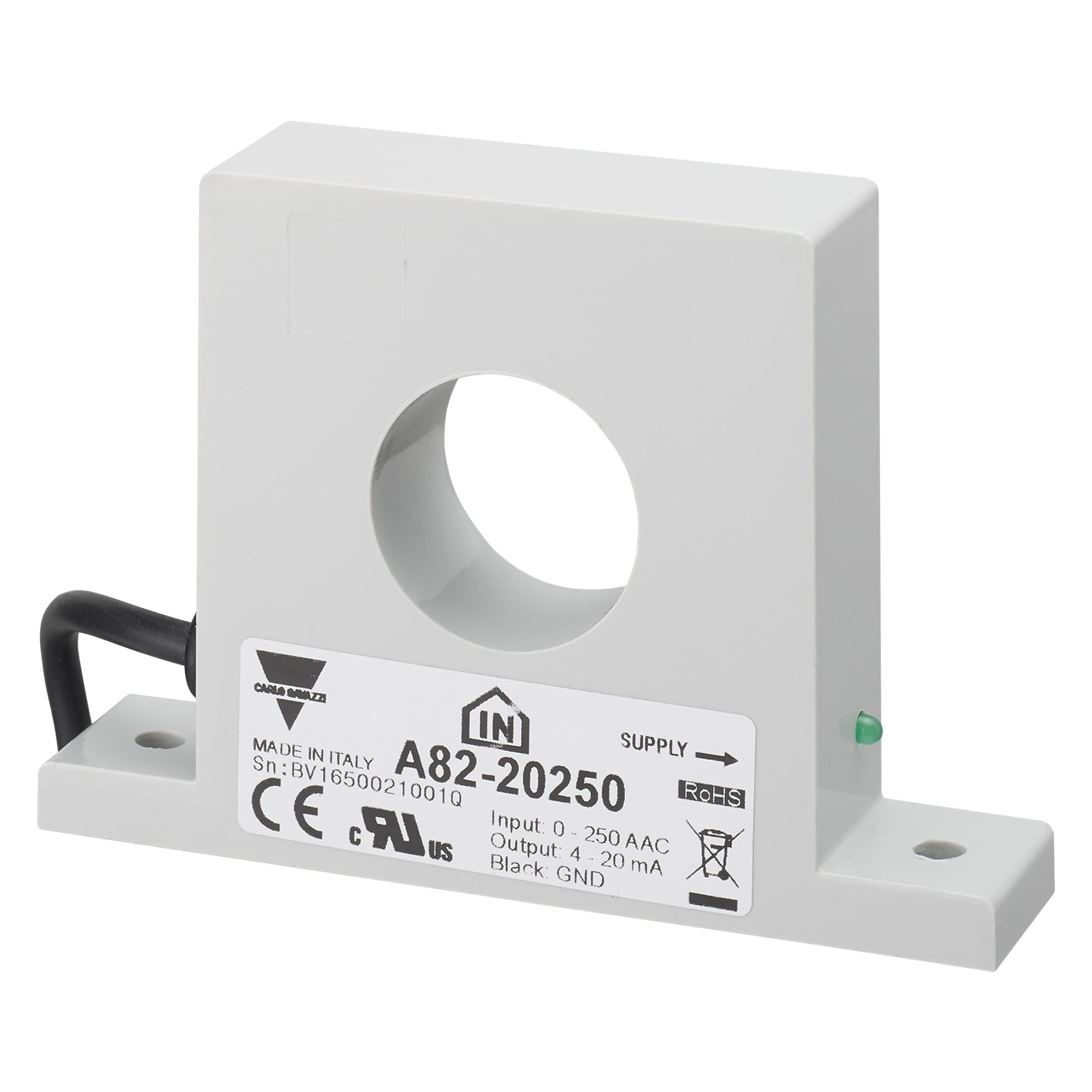

Carlo Gavazzi A82-20250 AC Current Transducer 250 A

Product Description

The CARLO GAVAZZI A82-20250 is an AC current transducer with an input range up to 250 A AC and a 4-20 mA DC analogue output. It is powered by loop voltage and designed for wall mounting. This true RMS AC current transformer offers an easy interface to PLC or setpoint relays. It can be used with monitoring relays DIB01, PIB01, DIC01 or PIC01.

• Input range up to 250 A AC
• 4-20 mA DC analogue output
• Powered by loop voltage

Product Highlights

AC current transducer with 250 A AC input, 4-20 mA DC output, and wall mounting design.

Product Information

Standard Information

• Brand: CARLO GAVAZZI
• Manufacturer Part Number: A82-20250

Technical Specifications

• Adjustable settings: No
• Max input current: 250 A
• Analogue output: 4-20 mA
• Wall mounting/direct mounting: Yes
• Rail mounting possible: No
• With approval according to UL: Yes
• Mfr. #: A82-20250
• Mfr.: Carlo Gavazzi
• Monitoring Relay Type: Current
• Phase: See Spec or N/A
• Poles: See Spec or N/A
• All - Voltage: See Spec or N/A
• Product Type: Current Transformer
• Manufacturer Series: 630
• Manufacturer Part Number: A82-20250
• Manufacturer: Carlo Gavazzi, Inc.
• UNSPSC Code: 41110000
• Unit of Measure: EA
• Series: 630 Series
• IP Rating: IP40
• Measurement Range: 250 A
• Switching Current: 30 mA
• Technology: Inductive
• Function: Current
• Type: Inductive
• Output: Relay
• Termination: Cable
• Overview: Proportional 2-wire sinking.
• Thru-Hole: 1.06". CE compliant.
• Brand: Carlo Gavazzi
• Part Number #: A82-20250
• SKU #: 2205049
• UNSPSC: 39121032
• UPC: 05709870081601
