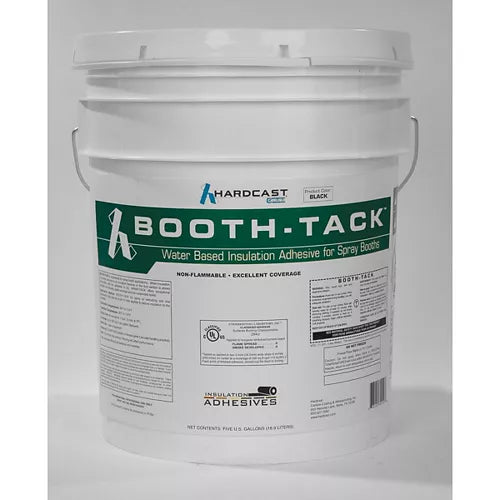

Carlisle 308585A Booth-tack Water-based Insulation Adhesive 5 Gallon Pail

Product Description

The Carlisle 308585A Booth-Tack is a quick-tack, nonflammable, water-based insulation adhesive designed for spray booth applications in HVAC duct fabrication and insulation work. This synthetic latex adhesive is engineered for situations where duct insulation must be held in place quickly before an insulation fastener is applied, or where duct sections are stored horizontally while the adhesive cures. HVAC contractors, sheet metal fabricators, and insulation installers rely on Booth-Tack for its reliable bond, fast dry time, and ease of application in controlled shop environments. The adhesive delivers high bond strength with a low viscosity formula, meaning it sprays evenly and covers large surface areas efficiently. Each 5 gallon pail provides coverage of up to 530 square feet per gallon when sprayed, making it a cost-effective solution for high-volume insulation jobs. Dry time is approximately 20 minutes, allowing crews to move through fabrication steps without long delays. The formula contains 53 percent solids content plus or minus 2 percent, and its viscosity ranges from 8,500 to 9,500 cps, which supports consistent spray application without clogging equipment. Because Booth-Tack is water-based and nonflammable, it is safe for use in enclosed spray booth environments and complies with SCAQMD Rule 1168 for low VOC adhesives. It is also LEED compliant and has received City of Los Angeles Approval RR 8069. The adhesive meets ASTM C916 and ASTM E84 standards and is UL 723 Listed, satisfying the compliance requirements that commercial and industrial HVAC projects commonly demand. Application temperature ranges from 35 degrees F to 110 degrees F, and the product maintains performance at service temperatures from -20 degrees F to 200 degrees F. Shelf life is one year unopened when stored within the recommended temperature range.

• Quick-tack, nonflammable, water-based synthetic latex insulation adhesive built for spray booth use
• Covers up to 530 square feet per gallon when sprayed, with a 20-minute dry time for fast fabrication workflows
• UL 723 Listed, ASTM C916 and E84 rated, LEED compliant, and approved under SCAQMD Rule 1168

Product Highlights

The Carlisle 308585A Booth-Tack delivers fast tack, broad coverage, and full compliance in a nonflammable, water-based formula trusted by HVAC fabricators and insulation contractors working in spray booth environments.

Product Information

Standard Information

• Brand: CARLISLE
• Manufacturer Part Number: 308585A

Technical Specifications

• Type: Insulation Adhesive
• Composition: Synthetic Latex
• Container Type: Pail
• Size: 5 Gallon
• Weight: 50 pounds
• Height: 14.25 inches
• Length: 12 inches
• Width: 12 inches
• Coverage: Up to 530 sq. ft. per gallon (sprayed)
• Dry Time: 20 minutes
• Viscosity: 8,500 to 9,500 cps
• Solids Content: 53% (+/-2%)
• Application Temperature: 35 degrees F to 110 degrees F
• Service Temperature: -20 degrees F to 200 degrees F
• Storage Temperature: 35 degrees F to 110 degrees F
• Shelf Life: 1 year unopened
• Solvent-Based: No
• Ratings: ASTM C731, ASTM C916, ASTM E84, UL 723 Listed
• Compliance: LEED Compliant, SCAQMD Rule 1168, City of Los Angeles Approval RR 8069
• Prop 65: Yes
• Country of Origin: USA
