Carlisle 1gnb Insulation Fastener 1 Inch 1000 Count

Product Description

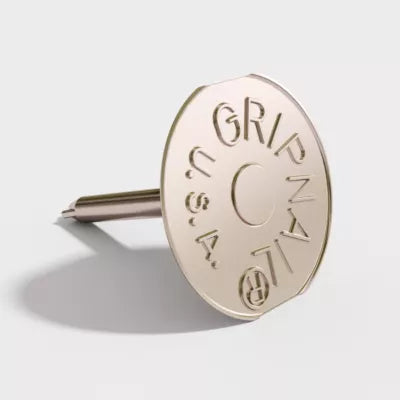

The CARLISLE 1gnb is a mechanical insulation fastener designed to attach acoustical duct liner to the interior of sheet metal HVAC ductwork. Known as a Gripnail, this fastener features a grip length of 0.525 inches and is recommended for use with 1-inch insulation at 1.5 lb density. The point, shank, and head are heat treated and tempered to a Rockwell C-50 hardness. A zinc plating of 0.0002 to 0.0003 inches with a final chromate dip exceeds current SMACNA standards for corrosion resistance. Licensed HVAC fabricators and sheet metal workers install these fasteners during ductwork manufacturing.

The 1gnb is used in residential and commercial HVAC duct fabrication where acoustical liner must be secured to the inside of sheet metal ducts. It is applied during the manufacturing stage before duct assembly is complete. The retaining cap is sized to depress the insulation surface without tearing or cutting it, and it does not protrude into the airstream. This design prevents noise generation and avoids interference with airflow inside the duct. Each plastic tub contains 1000 fasteners, supporting production-level quantities for fabrication shops.

Key Features

• Grip length of 0.525 inches, recommended for 1-inch insulation at 1.5 lb density
• Heat-treated and tempered to Rockwell C-50 hardness for consistent penetration and holding strength
• Zinc plating of 0.0002 to 0.0003 inches plus chromate dip exceeds SMACNA corrosion resistance standards
• Retaining cap will not tear, cut, or protrude into the airstream
• Rated for operating temperatures from 32 degrees F to 250 degrees F; unaffected from 0 degrees F to 550 degrees F
• Resistant to vibration fatigue in high-velocity air handling systems
• Non-toxic and environmentally safe per current Federal Standards when used as intended

Compatibility

Designed for fastening acoustical duct liner to sheet metal HVAC ductwork; recommended for 1-inch insulation at 1.5 lb density. Corrosion resistance meets current SMACNA standards.

Installation Notes

These fasteners are typically applied by sheet metal workers during ductwork fabrication using a Gripnail installation tool. Safety glasses must be worn at all times when applying fasteners. Follow applicable SMACNA guidelines for duct liner installation and fastener spacing. Inspect the retaining cap after application to confirm the insulation surface is properly compressed without damage.

Technical Specifications

• Grip Length: 0.525 inches
• Recommended Insulation Thickness: 1 inch
• Recommended Insulation Density: 1.5 lb
• Hardness: Rockwell C-50 (point, shank, and head)
• Zinc Plating Thickness: 0.0002 to 0.0003 inches
• Finish: Zinc plated with chromate dip
• Operating Temperature Range: 32 degrees F to 250 degrees F
• Non-Adverse Temperature Range: 0 degrees F to 550 degrees F
• Quantity: 1000 per plastic tub
• Corrosion Standard: Exceeds SMACNA requirements

Standard Information

• Brand: CARLISLE
• Manufacturer Part Number: 1gnb
