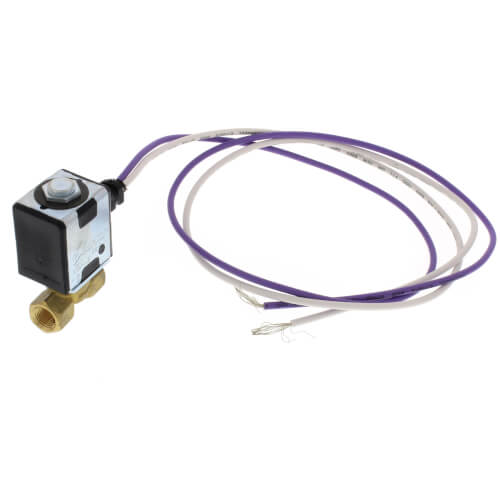

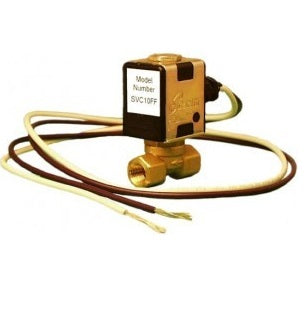

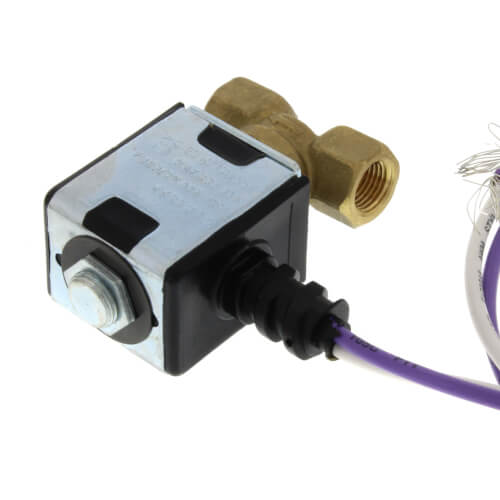

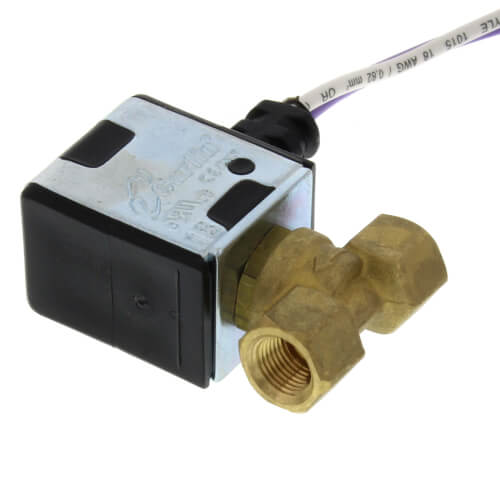

Carlin Combustion Technology SVC10FFS Oil Valve

Product Description

The Carlin Combustion Technology SVC10FFS oil valve is designed for use on EZ1/EZ2/EZ3/EZ66/99FRD/100CRD/102CRD/201CRD/301CRD oil burners. This normally closed, two-way valve features instant opening and is suitable for Carlin EZ Oil, 201CRD, 302CRD, 99FRD, 100CRD, and 102CRD burners. It operates at 120 VAC and 50/60 Hz.

• Normally closed valve
• Instant opening
• Two-way valve

Product Highlights

The Carlin SVC10FFS is a two-way, normally closed oil valve with instant opening, designed for use with various oil burners.

Product Information

Standard Information

• Brand: CARLIN COMBUSTION TECHNOLOGY
• Manufacturer Part Number: SVC10FFS
• Country of Origin: Italy

Technical Specifications

• catalog number: SVC10FFS
• category: HVAC/R & Fans
• item: Oil Valve
• manufacturer name: Carlin Combustion Technology
• manufacturer part number: SVC10FFS
• unspsc code: 40101800
• used on: EZ1/EZ2/EZ3/EZ66/99FRD/100CRD/102CRD/201CRD/301CRD Oil Burner
• Product Type: Valve
• Brand: Carlin
• Type: Solenoid Valve
• MPN: SVC10FFS, SVC10FF
• Valve Outlet: 2-Way
• Valve Operation: Normally Closed
• Approvals: UL Recognized
• Valve Size: 1/8"
• Voltage: 120V
• Frequency: 50/60 Hz
• Status: Active
• Production Status: Active
