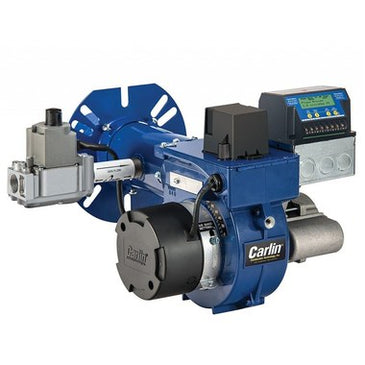

Carlin Combustion Technology 98954fr3 ez-gas 10 inches b g03

Product Description

The CARLIN COMBUSTION TECHNOLOGY 98954FR3 EZ-GAS is a gas burner designed for natural fuel. It features a 10-inch length fitting size and includes an air tube, diffuser, and a 1-slot air band. The burner has an input BTU rating of 50000 to 175000 BTU/Hour and an insertion depth of 3-1/8 Inch. It is approved by CUL and CSA2.7 and adheres to ANSI Z21.17 standards.

• Natural fuel type
• 10 Inch Length Fitting Size
• Input BTU Rating 50000 to 175000 BTU/Hour

Product Highlights

Gas burner with 10-inch fitting, designed for natural gas and approved by CUL and CSA2.7.

Product Information

Standard Information

• Brand: CARLIN COMBUSTION TECHNOLOGY
• Manufacturer Part Number: 98954FR3

Technical Specifications

• Approval: CUL, CSA2.7
• Category: HVAC/R & Fans
• Fuel Type: Natural
• Fitting Size: 10 Inch Length
• Orifice Size: #1, 1/4 Inch (Natural Gas) and #15, 7/32 Inch (Propane Gas)
• Series/Model: EZGas Pro
• UNSPSC Code: 40101834
• CATALOG NUMBER: 98954FR3
• Manufacturer Name: Carlin Combustion Technology
• Input BTU Rating: 50000 to 175000 BTU/Hour
• Insertion Depth: 3-1/8 Inch
• Includes: Air Tube, Diffuser, 1-Slot Air Band, Orifice
• Applicable Standard: ANSI Z21.17
• Brand: Carlin
• Collection: Gas Burners
• Product Type: EZGas Pro
• Used on: Weil-McLain GO3
