Carlin Combustion Technology 9859210FRU Universal Ez-Gas

Product Description

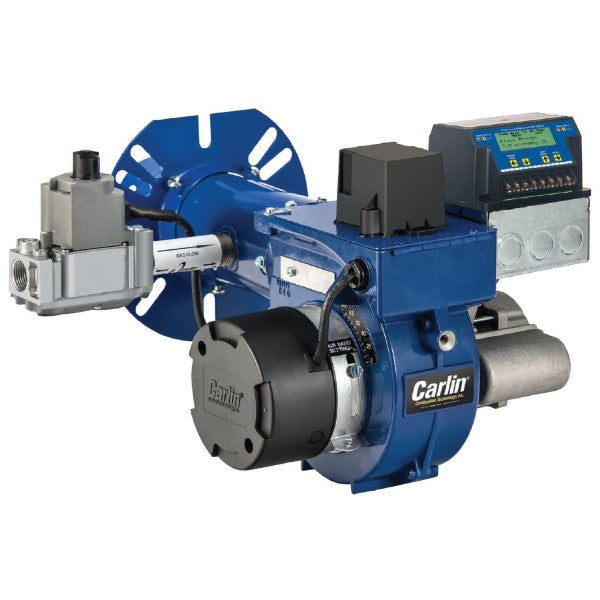

The Carlin Combustion Technology 9859210FRU Universal Ez-Gas is a boiler gas burner designed for residential conversion, boilers, and heating appliances. It supports both natural and propane fuel types with a solid-state igniter and direct spark ignition. The burner includes an air tube, diffuser, air band, and adjustable flange. It is suitable for various BTU input ranges.

• Ideal for residential conversions with an input range of 50,000 to 275,000 BTUH.
• Features a solid-state igniter with direct spark ignition.
• Includes air tube, diffuser, air band, and adjustable flange.

Product Highlights

The Carlin Universal Ez-Gas burner offers a cost-effective alternative to replacing heating appliances, converting oil-fired systems to natural gas or propane.

Product Information

Standard Information

• Brand: CARLIN COMBUSTION TECHNOLOGY
• Manufacturer Part Number: 9859210FRU

Technical Specifications

• Type: Universal
• Application: Residential Conversion Burner, Boiler, Heating Appliance
• Approval: CUL, CSA2.7
• Fuel Type: Natural/Propane
• Ignition Source: Solid State Igniter, Direct Spark
• Fitting Size: 3-1/2 Inch Diameter x 10 Inch Length
• Orifice Size: #2, 0.242 Inch (Natural Gas) and #18, #11 (Propane Gas)
• UNSPSC Code: 40101834
• Series/Model: EZGas Pro
• Manufacturer Name: Carlin Combustion Technology
• Manufacturer Part Number: 9859210FRU
• Voltage Rating: 120 Volt AC 60 Hertz 1-Phase
• Current Rating: 2 Amp
• Input BTU Rating: 150000 to 275000 BTU/Hour, 50000 to 175000 BTU/Hour, 70000 to 230000 BTU/Hour
• Manifold Pressure Rating: 3.5 Inch WC
• Supply Pressure Rating: 5 to 14 Inch WC
• Motor Power Rating: 1/15 HP
• Speed Rating: 3450 RPM
• Applicable Standard: ANSI Z21.17
• Input: 50,000 to 275,000 BTUHs
• Electrical Power: 120 vac, 60Hz, 1-Phase
• Electrical Current: Approximately 2.0 Amps
• Limit Circuit Input: 120 vac, 60 Hz
• Motor: 1/15 HP, 3450 RPM, 60 Hz
• Motor Frame: 48 Frame, “M” Flange
• Fuel Valve Power: 120 vac, 60 Hz
• Ignition: Carlin Model 41800 Solid State Electronic Ignition Ignition Voltage: 9,000 volts
• Agencies: UL Listed: US & Canada – US per ANSI Z21.17, Canada per CSA 2.7
• Item Package Quantity: 1
