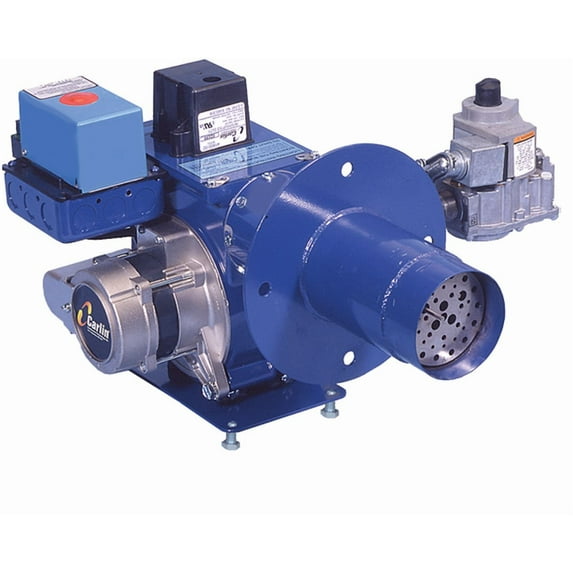

Carlin Combustion Technology 9859210BFR1 Ez-Gas Burner 50000-175000 BTU/Hour

Product Description

The Carlin Combustion Technology 9859210BFR1 Ez-Gas Burner is a multi-bit type gas burner for residential conversion. It supports natural gas and propane fuels with a solid-state igniter and direct spark ignition. The burner has a fitting size of 3-1/2 Inch Diameter x 10 Inch Length and an input BTU rating of 50000 to 175000 BTU/Hour. It operates at 120 Volt AC.

• Ideal for residential conversion with an input range of 50,000 to 275,000 BTUH.
• Fast and easy to install.
• Includes air tube, diffuser, matching air band, and adjustable flange.

Product Highlights

This burner is a cost-effective alternative to replacing the entire heating appliance, designed for easy installation and broad residential conversion applications.

Product Information

Standard Information

• Brand: CARLIN COMBUSTION TECHNOLOGY
• Manufacturer Part Number: 9859210BFR1

Technical Specifications

• Type: Multi-Bit
• Application: Residential Conversion Burner
• Approval: CUL, CSA2.7
• Fuel Type: Natural/Propane
• Fitting Size: 3-1/2 Inch Diameter x 10 Inch Length
• Orifice Size: #2, 0.242 Inch (Natural Gas) and #18, #11 (Propane Gas)
• Ignition Source: Solid State Igniter, Direct Spark
• UNSPSC Code: 40101834
• Voltage Rating: 120 Volt AC 60 Hertz 1-Phase
• Current Rating: 2 Amp
• Input BTU Rating: 50000 to 175000 BTU/Hour
• Manifold Pressure Rating: 3.5 Inch WC
• Supply Pressure Rating: 5 to 14 Inch WC
• Motor Power Rating: 1/15 HP
• Speed Rating: 3450 RPM
• Applicable Standard: ANSI Z21.17
• Manufacturer Name: Carlin Combustion Technology
• Manufacturer Part Number: 9859210BFR1
• Catalog Number: 9859210BFR1
• Series/Model: EZGas Pro
• Category: HVAC/R & Fans
• Air Tube Size: 3-1/2" Diameter x 10" Length
• Control Type: Microprocessor
