Carlin Combustion Technology 76893 Red Electrode Setting Gauge Replacement 99-102CRD

Product Description

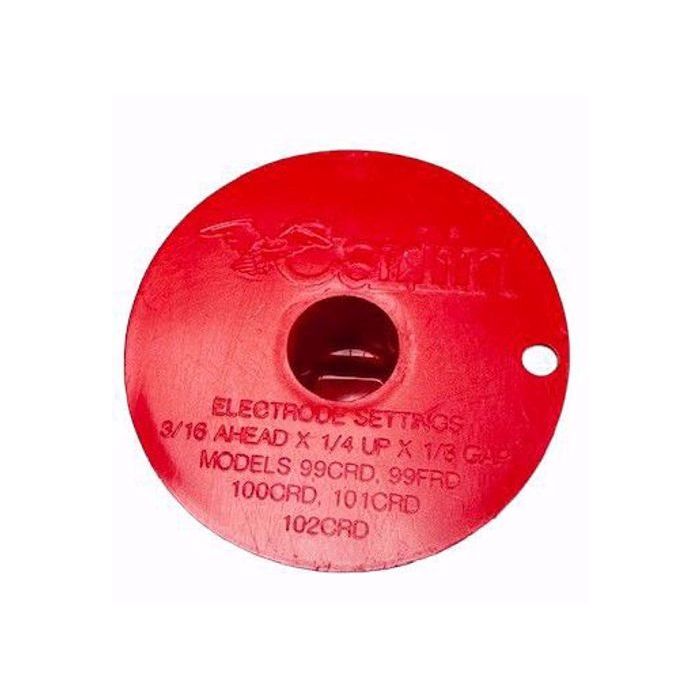

The Carlin Combustion Technology 76893 Red Electrode Setting Gauge is a precision tool designed for oil burner technicians and HVAC service professionals who need accurate electrode positioning during burner setup, maintenance, and tune-up procedures. Proper electrode gap and position are critical to reliable ignition in oil-fired heating systems. Even small deviations from the manufacturer-specified electrode settings can lead to hard starts, misfires, sooting, or lockout conditions. The 76893 gauge eliminates guesswork by providing a physical reference for setting electrodes to the exact specifications required by Carlin burners, including those in the 99-102CRD series. This type of setting gauge is a standard tool in any oil burner technician's kit. It allows the technician to quickly and consistently position the electrodes at the correct gap and angle relative to the nozzle, ensuring clean, reliable ignition on every startup. The gauge is color-coded red for easy identification in a toolbox or service bag. Using the correct electrode setting gauge for your specific burner model is essential. Generic gauges may not reflect the precise tolerances required by Carlin combustion equipment. The 76893 is purpose-built for Carlin burners, making it the right choice for service technicians working on residential and light commercial oil heating systems. Whether performing a seasonal tune-up, replacing worn electrodes, or commissioning a new burner installation, the 76893 Red Electrode Setting Gauge helps ensure the job is done right the first time. Compatible with Carlin 99-102CRD burner models.

• Precision electrode setting gauge for Carlin oil burners, including 99-102CRD series models
• Color-coded red for quick identification during field service and burner tune-up work
• Ensures accurate electrode gap and positioning for reliable ignition and clean combustion

Product Highlights

The Carlin Combustion Technology 76893 Red Electrode Setting Gauge is a purpose-built service tool for HVAC and oil burner technicians. It provides accurate, repeatable electrode positioning to support reliable ignition in Carlin oil-fired heating equipment.

Product Information

Standard Information

• Brand: CARLIN COMBUSTION TECHNOLOGY
• Manufacturer Part Number: 76893

Technical Specifications

• UPC / GTIN: 086764105922
• Compatible Burner Series: 99-102CRD
• Color: Red
• Product Type: Electrode Setting Gauge
