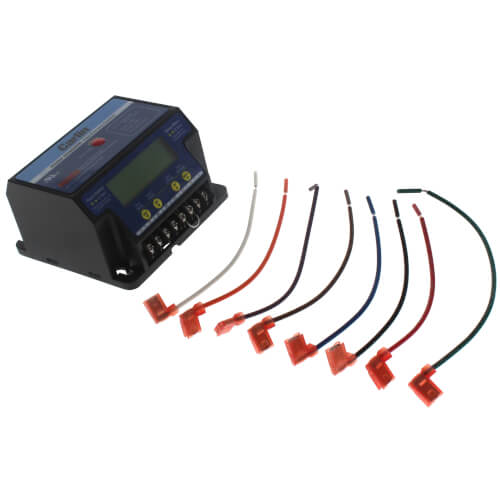

Carlin Combustion Technology 60200FRS Gas Burner Primary Control Flame Rod

Product Description

The CARLIN COMBUSTION TECHNOLOGY 60200FRS is a gas burner primary control flame rod, designed for use on the 60200FR primary control. It features interrupted duty ignition and recycle on flame failure. It also has serviceman reset protection. The control has diagnostic and flame indicator LEDs.

• Interrupted Duty Ignition
• Recycle on Flame Failure
• Serviceman Reset Protection

Product Highlights

This gas burner primary control flame rod is for use with EZ-Gas, EZ-Gas Pro & 201GAS Burners.

Product Information

Standard Information

• Brand: CARLIN COMBUSTION TECHNOLOGY
• Manufacturer Part Number: 60200FRS

Technical Specifications

• CATALOG NUMBER: 60200FRS
• Category: HVAC/R & Fans
• Description: Gas Burner Primary Control Flame Rod; Item Primary Control Flame Rod, Microprocessor; Used On 60200FR Primary Control
• Item: Primary Control Flame Rod, Microprocessor
• Manufacturer Name: Carlin Combustion Technology
• Manufacturer Part Number: 60200FRS
• UNSPSC Code: 40101800
• Used On: 60200FR Primary Control
• Product Type: Control
• TFI (secs): Programmable
• Pre purge: 0, 10, 30, 90
• Post purge: 0, 10, 15, 30, 60, 120
• Recycles: NO
• MPN: 60200FRS

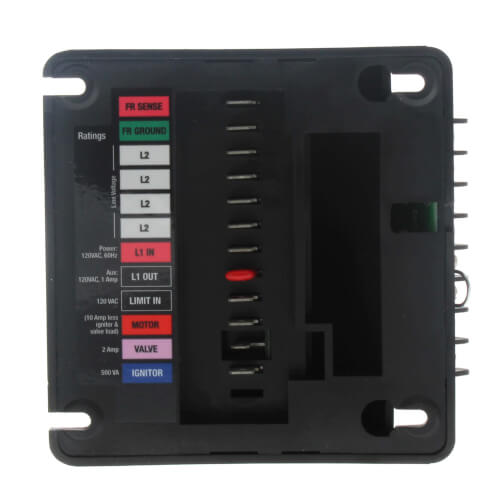

• Power Input (Red/White Wire): 120 vac, 60 Hz, 9 VA
• Limit Circuit Input (Black Wire): 120 vac, 60 Hz
• Motor Load: 120 vac, 60 Hz, 10 FLA, 60 LRA
• Ignitor Load: 120 vac, 60 Hz, 500 VA
• Valve Load: 120 vac, 60 Hz, 2.0 Amps
• Alarm Contacts: 24V, AC/DC, 2 Amps
• Operating Temperature Limits: +32°F to + 140°F
• Storage Temperature Limits: -40°F to +185°F
• Thermostat Anticipator Current: 0.2A, AC
• Flame Current (Minimum): 0.8 Microamp DC
