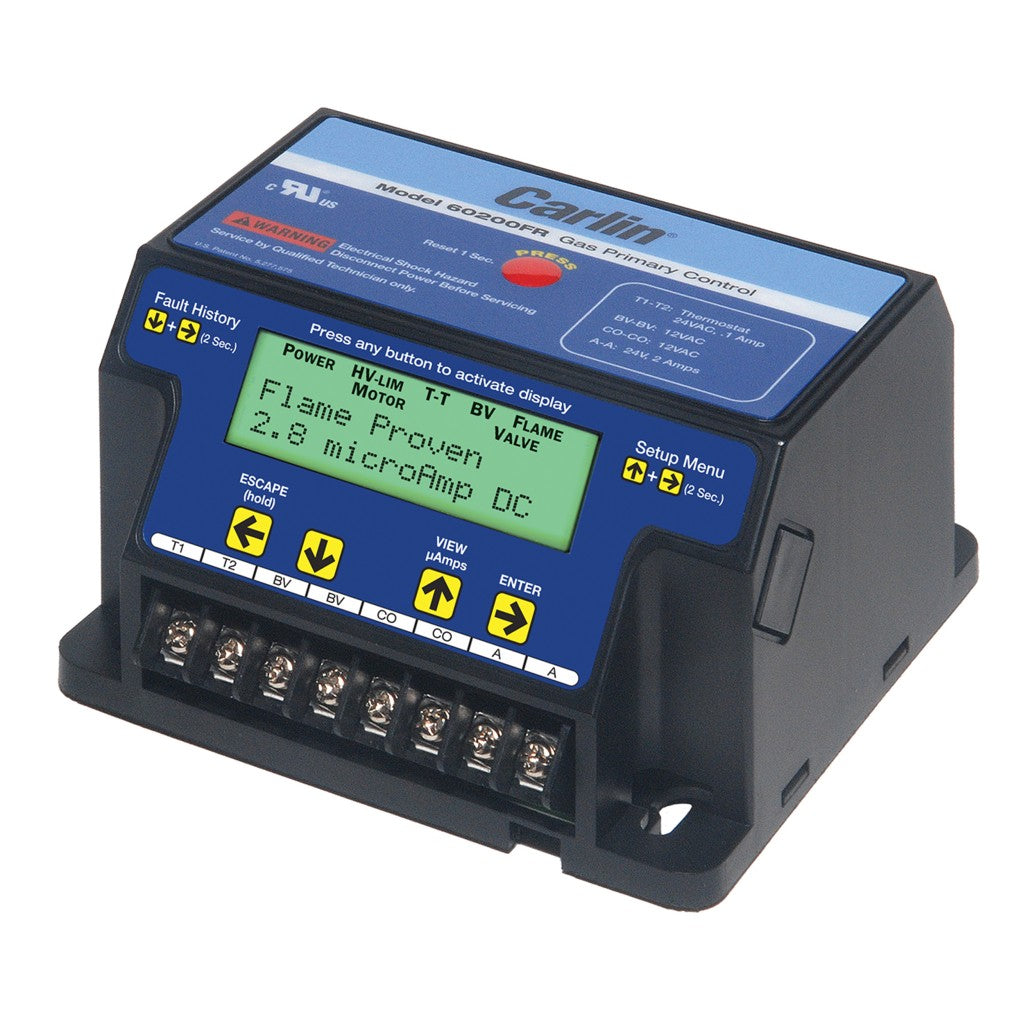

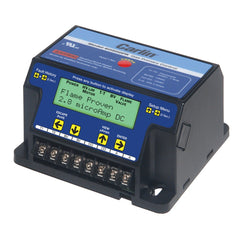

Carlin Combustion Technology 60200FRNS 60200FR primary programmable control no recycl

Product Description

The Carlin Combustion Technology 60200FRNS is a primary programmable control designed for gas burners. It features a fixed 4-second Trial for Ignition (TFI), a 30-second pre-purge, and a 30-second post-purge. This control operates with interrupted duty ignition and includes serviceman reset protection, preventing lockout after three consecutive failures. It is compatible with thermostats and aquastats, and incorporates SMC (Safety Monitoring Circuit) Technology for enhanced operational safety. The unit is UL and CUL Recognized.

• Fixed 4-second Trial for Ignition (TFI) with 30-second pre-purge and 30-second post-purge.
• Features interrupted duty ignition and serviceman reset protection after three consecutive lockouts.
• Includes diagnostic and flame indicator LEDs, alarm contacts, and SMC (Safety Monitoring Circuit) Technology.

Product Highlights

This primary programmable control ensures safe and efficient operation of gas burners with precise timing and safety features.

Product Information

Standard Information

• Brand: CARLIN COMBUSTION TECHNOLOGY
• Manufacturer Part Number: 60200FRNS

Technical Specifications

• TFI: Fixed 4 seconds
• Pre Purge: 30 seconds
• Post Purge: 30 seconds
• Recycles: No
• Product Type: Control
• Power Input: 120 VAC, 60 Hz, 9 VA
• Limit Circuit Input: 120 VAC, 60 Hz
• Motor Load: 120 VAC, 60 Hz, 10 FLA, 60 LRA
• Ignitor Load: 120 VAC, 60 Hz, 500 VA
• Valve Load: 120 VAC, 60 Hz, 2.0 Amps
• Alarm Contacts: 24V AC/DC, 2 Amps
• Operating Temperature: +32°F to +140°F
• Storage Temperature: -40°F to +185°F
• Thermostat Anticipator Current: 0.2A AC
• Flame Current Minimum: 0.8 Microamp DC
• Certifications: UL & ULC Recognized Component United States & Canada
