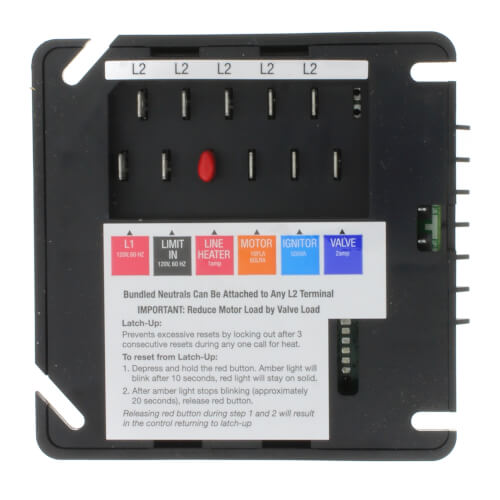

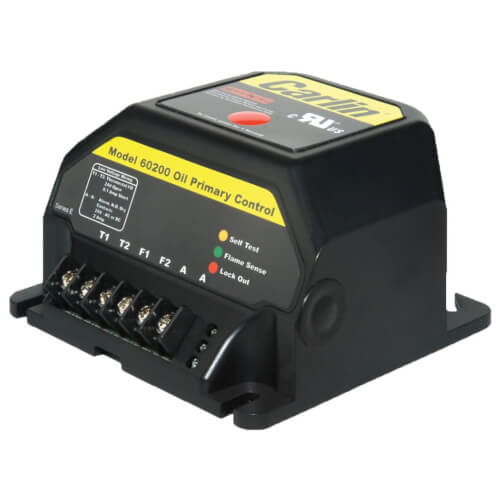

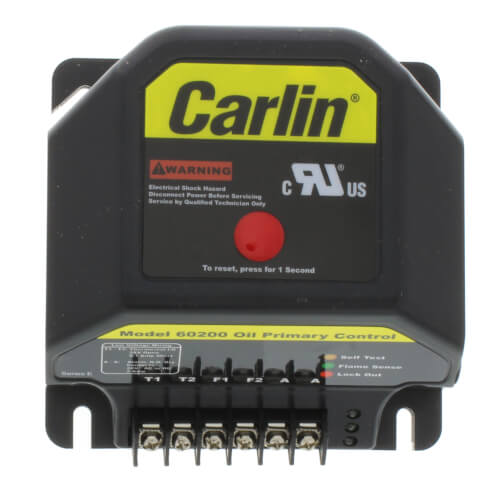

Carlin Combustion Technology 6020002S relay w/purge

Product Description

The Carlin COMBUSTION TECHNOLOGY 6020002S is a burner primary control designed for interrupted duty. It is used on EZ1/EZ2/EZ3/EZ66/99FRD/100CRD/102CRD/201CRD/301CRD/601CRD/701CRD/702CRD/801CRD/1050FFD/1150FFD oil burners and features a 15-second trial for ignition (pre/post). It also includes an alarm contact.

• Burner Primary Control
• Item Primary Control, Interrupted Duty
• Includes Alarm Contact

Product Highlights

This primary control is suitable for residential/commercial boiler oil burner applications. It operates at 120 Volt AC at 60 Hertz and has a flame establishing period of 10 seconds.

Product Information

Standard Information

• Brand: CARLIN COMBUSTION TECHNOLOGY
• Manufacturer Part Number: 6020002S
• Country of Origin: United States

Technical Specifications

• Catalog Number: 6020002S
• Category: HVAC/R & Fans
• Item: Primary Control, Interrupted Duty
• Manufacturer Name: Carlin Combustion Technology
• Manufacturer Part Number: 6020002S

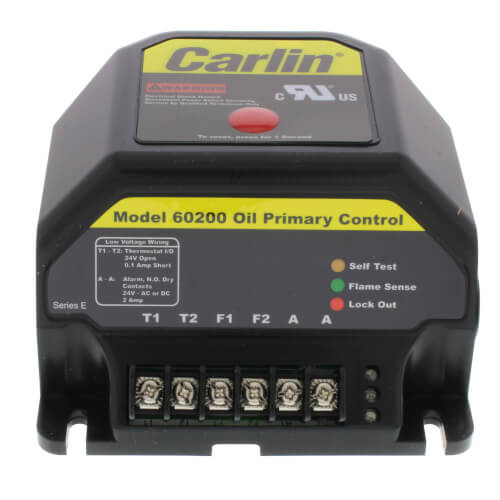

• Series/Model: 60200
• Used On: EZ1/EZ2/EZ3/EZ66/99FRD/100CRD/102CRD/201CRD/301CRD/601CRD/701CRD/702CRD/801CRD/1050FFD/1150FFD Oil Burner
• Product Type: Oil Control
• TFI (secs): Fixed 15
• Pre purge: 15
• Post Purge: 15
• Recycles: Yes
• Ignition Type: Interuptted
• Brand: Carlin
• MPN: 6020002S
• Manufacturer: Carlin
• Country of Origin: United States
• Type: Furnace/Wall Mount
• Flame Establishing Period: 10 Second
• Pilot Type: Interrupted
• Voltage Rating: 120 Volt AC at 60 Hertz
• Operating Temperature: 32 to 140 Deg F
• Application: Residential/Commercial Boiler Oil Burner
• Approval: UL (Canada and US)
• Storage Temperature: -40 to 185 Deg F
• CAD Cell Resistance: 1500 Ohms
• Thermostat Anticipator Current Rating: 0.1 Amp
• Motor Load: 10 FLA/60 LRA
• Ignitor Load: 120 Volt AC at 60 Hertz
• Model: 60200-02
• Production Status: Active
