Carlin Combustion Technology 5020002S Cntl W/ Alarm Cntc 15 Second Trial

Product Description

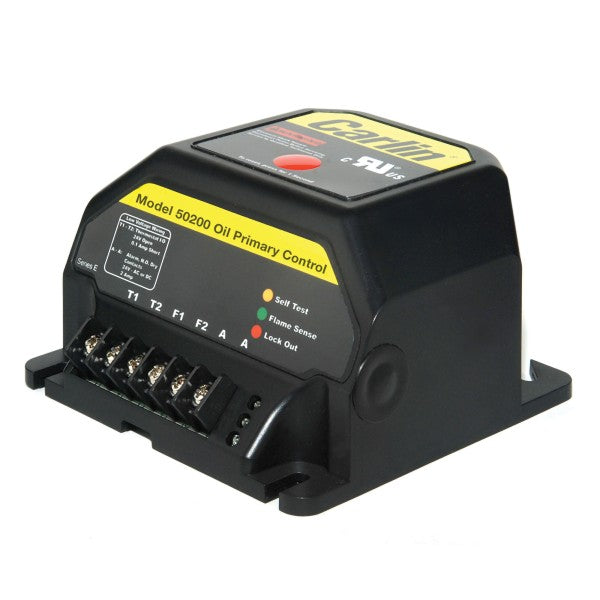

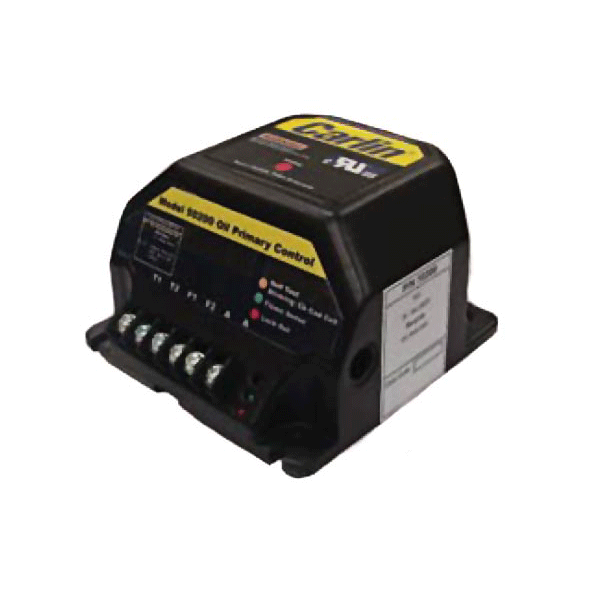

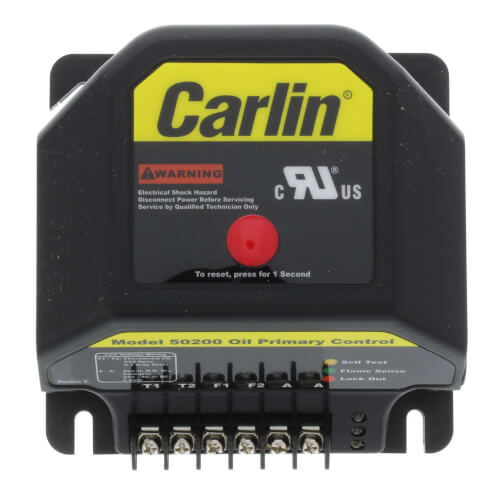

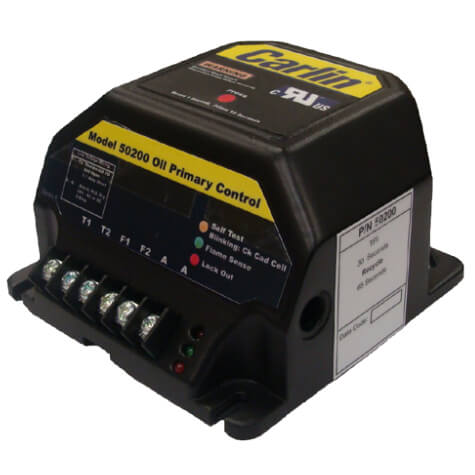

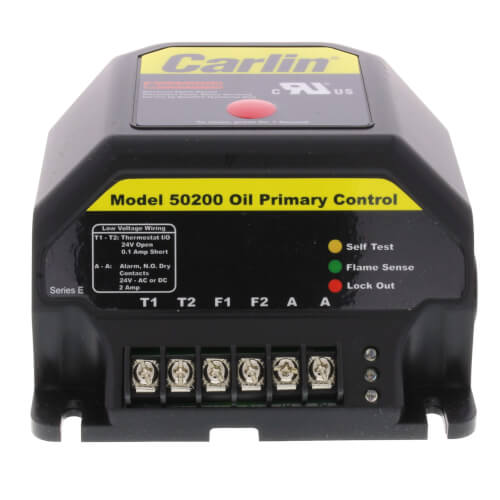

The CARLIN COMBUSTION TECHNOLOGY 5020002S is a burner primary control designed for interrupted duty. It is used on EZ1/EZ2/EZ3/EZ66/99FRD/100CRD/102CRD/201CRD/301CRD/601CRD/701CRD/702CRD/801CRD/1050FFD/1150FFD oil burners and features a 15-second trial for ignition and includes an alarm contact. It provides precise control and dependable performance for industrial ignition needs.

• Burner Primary Control
• Item Primary Control, Interrupted Duty
• Includes Alarm Contact

Product Highlights

The Carlin Combustion Technology 5020002S ensures optimal operation and safety with its real-time monitoring and alerts.

Product Information

Standard Information

• Brand: CARLIN COMBUSTION TECHNOLOGY
• Manufacturer Part Number: 5020002S

Technical Specifications

• Additional Information: Trial for Ignition 15 Second; Includes Alarm Contact
• CATALOG NUMBER: 5020002S
• Category: HVAC/R & Fans
• Description: Burner Primary Control; Item Primary Control, Interrupted Duty; Used On EZ1/EZ2/EZ3/EZ66/99FRD/100CRD/102CRD/201CRD/301CRD/601CRD/701CRD/702CRD/801CRD/1050FFD/1150FFD Oil Burner; Trial for Ignition 15 Second; Includes Alarm Contact
• Item: Primary Control, Interrupted Duty
• Manufacturer Name: Carlin Combustion Technology
• Manufacturer Part Number: 5020002S
• Series/Model: 50200
• UNSPSC Code: 40101800
• Used On: EZ1/EZ2/EZ3/EZ66/99FRD/100CRD/102CRD/201CRD/301CRD/601CRD/701CRD/702CRD/801CRD/1050FFD/1150FFD Oil Burner
• Trial for Ignition: 15 Second
• Product Type: Oil Control
• TFI (secs): Fixed 15
• Pre purge: N/A
• Post purge: N/A
• Recycles: Yes
• Ignition Type: Interuptted
• Power Input (From Limit Circuit): 120 vac, 60 Hz, 9 VA
• Motor Load: 10 FLA/60 LRA
• Ignitor Load: 120 vac, 60 Hz, 500 VA
• Alarm Contacts: 24 V, AC/DC, 2 A
• Operating Temperature Limits: + 32ºF to + 140ºF
• Storage Temperature Limits: -40ºF to +185ºF
• Thermostat Anticipator Current: 0.1 A, AC
• Agencies: UL & ULC Recognized Component United States & Canada
• Brand: Carlin
