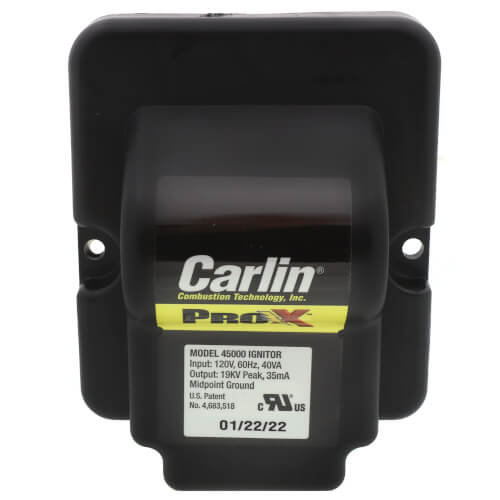

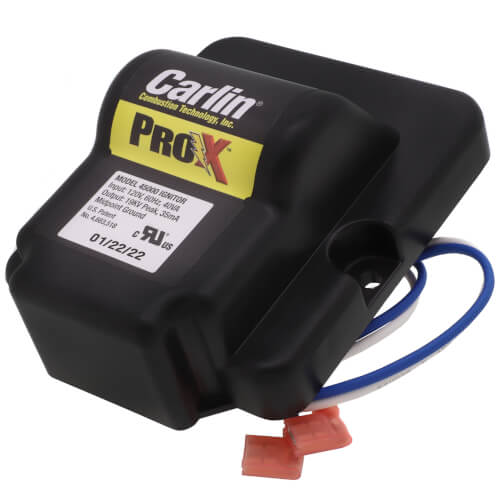

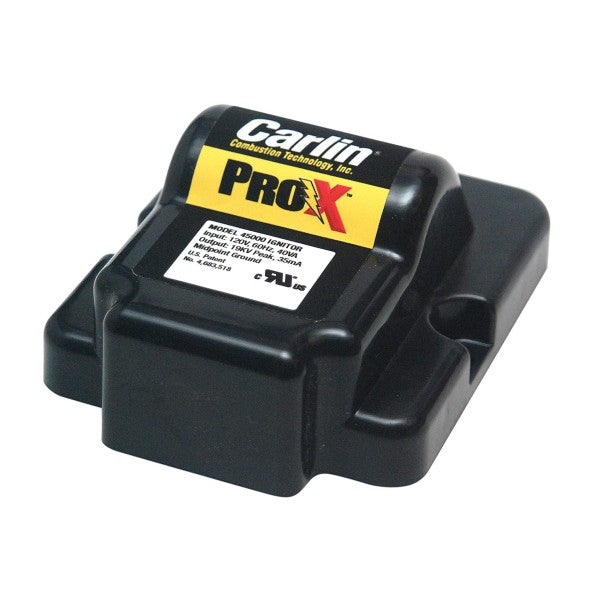

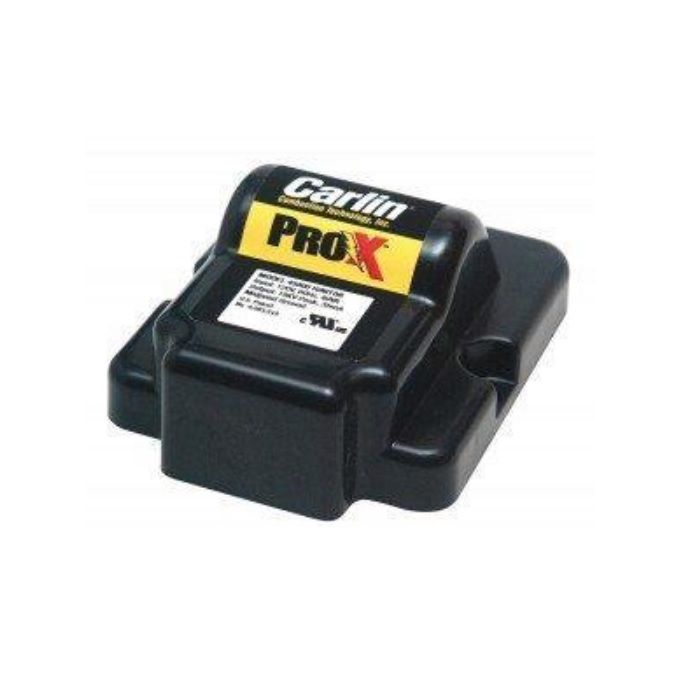

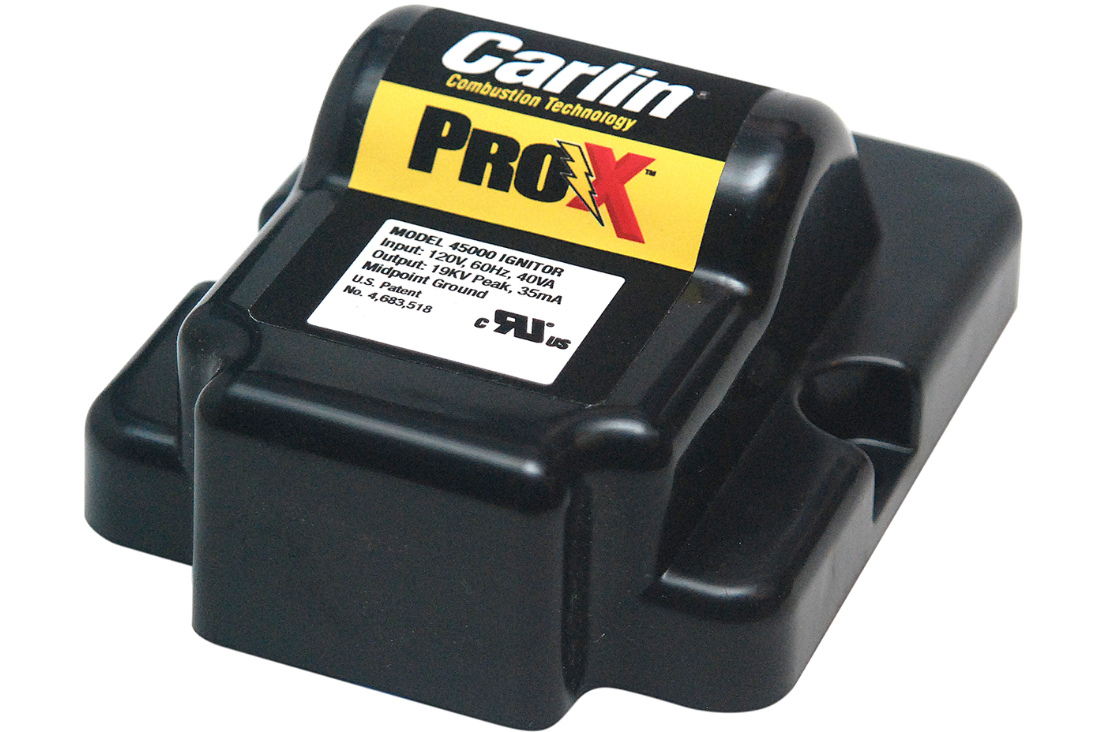

Carlin Combustion Technology 45000S Heavy Duty Universal Ignitor 110V

Product Description

The CARLIN COMBUSTION TECHNOLOGY 45000S is a heavy-duty, universal ignitor designed for oil burners. It is compatible with EZ1/EZ2/EZ3/EZ66/99FRD/100CRD/102CRD oil burners and features a base plate mounting type. The ignitor operates at 110V and is built with a rugged thermoplastic housing. It is suitable for various burner brands and mounting locations.

• Heavy Duty Igniter Mounts to any Base Plate
• Universal fit for virtually any burner, any brand
• Durable construction

Product Highlights

This universal ignitor is designed for durability and broad compatibility, ensuring reliable ignition across different oil burner models.

Product Information

Standard Information

• Brand: CARLIN COMBUSTION TECHNOLOGY
• Manufacturer Part Number: 45000S

Technical Specifications

• Item: Igniter, Heavy Duty, Universal
• Used On: EZ1/EZ2/EZ3/EZ66/99FRD/100CRD/102CRD Oil Burner
• Voltage Rating: 110 Volt
• Mounting Type: Base Plate
• Product Type: Ignitor
• Voltage: 110v
• Power Input: 120 vac, 60 hz, 40 va
• Ignitor Output: 19 kv, 35mA RMS
• Secondary Grounding: Midpoint
• Operating Temperature Limits: +32 ºF to +140 ºF
• Storage Temperature Limits: -40 ºF to + 185 ºF
• Agencies: UL Recognized U.S and Canada
• Manufacturer Part Number: 45000S
