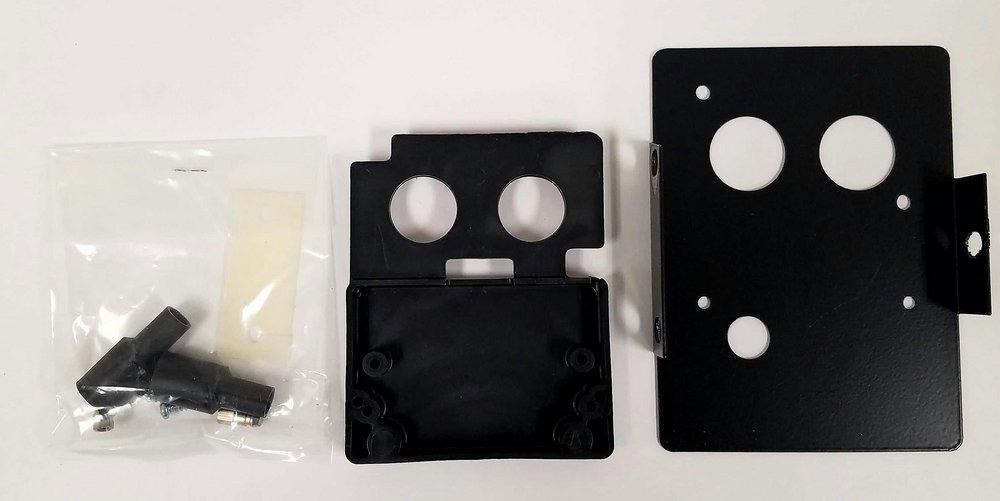

Carlin Combustion Technology 4102000WA3 Burner Baseplate Kit

Product Description

The CARLIN COMBUSTION TECHNOLOGY 4102000WA3 is a burner baseplate kit designed for use on Wayne M burners. It features solid state technology for high performance and durability. The epoxy sealant provides water resistance and heat dissipation. It has a 14,000 volt output for smoother ignition and low current draw to save electricity.

• Used On Wayne M Burner
• Solid state technology yields high performance, long life and durability constant-duty rated
• Epoxy sealant provides water resistance and heat dissipation

Product Highlights

Burner baseplate kit used for ignitor mounting on Wayne M burners. Features 14,000 volt output for smoother ignition.

Product Information

Standard Information

• Brand: CARLIN COMBUSTION TECHNOLOGY
• Manufacturer Part Number: 4102000WA3

Technical Specifications

• catalog number: 4102000WA3
• category: HVAC/R & Fans
• description: Burner Baseplate Kit; Item Baseplate Kit; Used On Wayne M Burner
• item: Baseplate Kit
• manufacturer name: Carlin Combustion Technology
• manufacturer part number: 4102000WA3
• unspsc code: 40101800
• used on: Wayne M Burner
• Brand Model Compatibility: Wayne Combustion Systems™ Burners
• UPC: 086764109944
• Power Input: 120 vac, 60 Hz, 40 VA
• Ignitor Output: 14KV 35 mA RMS
• Secondary Grounding: Midpoint
• Operating Temperature Limits: +32F to +140F
• Storage Temperature Limits: -40F to +185F
• Agencies: UL Recongnized (US), CSA Certified (Canada)
