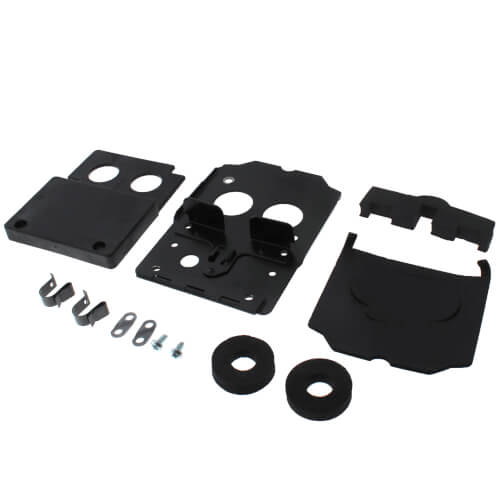

Carlin Combustion Technology 4102000BK1 Base Plate Kit

Product Description

The CARLIN COMBUSTION TECHNOLOGY 4102000BK1 is a burner baseplate kit designed for use on Beckett burners. It features solid state technology for high performance and durability. The ignitor output provides 14,000 volt and 20,000 volt output for smoother ignition. The epoxy sealant provides water resistance and heat dissipation.

• Used on Beckett Burner
• Solid state technology yields high performance, long life and durability
• Low current draw saves electricity

Product Highlights

This baseplate kit is designed for Beckett AF & AFG burners. It offers consistent voltage output and easy testing.

Product Information

Standard Information

• Brand: CARLIN COMBUSTION TECHNOLOGY
• Manufacturer Part Number: 4102000BK1

Technical Specifications

• Catalog Number: 4102000BK1
• Category: HVAC/R & Fans
• Item: Baseplate Kit
• Manufacturer Name: Carlin Combustion Technology
• Manufacturer Part Number: 4102000BK1
• UNSPSC Code: 40101800
• Used On: Beckett Burner
• Product Type: Accessory
• Type: Kit
• Used With: Beckett AF, Beckett AFG
• Power Input: 120 vac, 60 Hz, 40 VA
• Ignitor Output: 14KV 35 mA RMS
• Secondary Grounding: Midpoint
• Operating Temperature Limits: +32F to +140F
• Storage Temperature Limits: -40F to +185F
• Agencies: UL Recongnized (US), CSA Certified (Canada)
