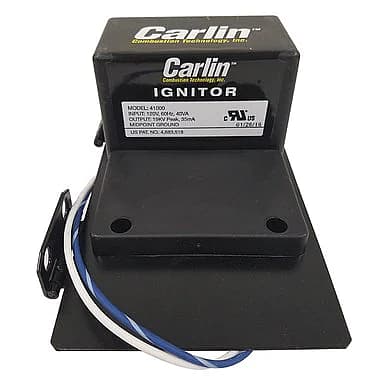

Carlin Combustion Technology 41000S0WA2 Ign/Base Wyne E

Product Description

The Carlin Combustion Technology 41000S0WA2 igniter base is designed for use with Wayne E burners. This igniter/base provides 14,000 Volt and 20,000 Volt output for smoother ignition. Solid state technology ensures high performance and durability. The epoxy sealant offers water resistance and heat dissipation.

• Used on Wayne E Burners
• Constant-Duty Rated
• Epoxy Sealant Provides Water Resistance and Heat Dissipation

Product Highlights

Designed for use with Wayne E burners, this igniter base offers reliable ignition and durability.

Product Information

Standard Information

• Brand: CARLIN COMBUSTION TECHNOLOGY
• Manufacturer Part Number: 41000S0WA2

Technical Specifications

• catalog number: 41000S0WA2
• category: HVAC/R & Fans
• item: Igniter/Base
• manufacturer name: Carlin Combustion Technology
• manufacturer part number: 41000SOWA2
• UNSPSC code: 40101800
• used on: Wayne E Burner
• Type: Constant Duty, Ignitor Spark
• Flame Sense Type: Electrode
• Ignition Source: Solid State Electronic Spark Ignitor
• Electrical Rating: 40 VA 120 Volt AC 60 Hertz
• Temperature Rating: 32 to 140 Deg F
• Application: Burner
• Approval: UL (Canada and US)
• Ignitor Output: 14 Kilo Volt, 35 Milliamp RMS
• Secondary Grounding: Midpoint
• Storage Temperature: -40 to 185 Deg F
• Includes: Base Plate
• Brand: Carlin
• Frequency: 60HZ
• Primary Voltage: 120V
• Product Type: Oil Constant Duty
• Standard: UL and CSA
