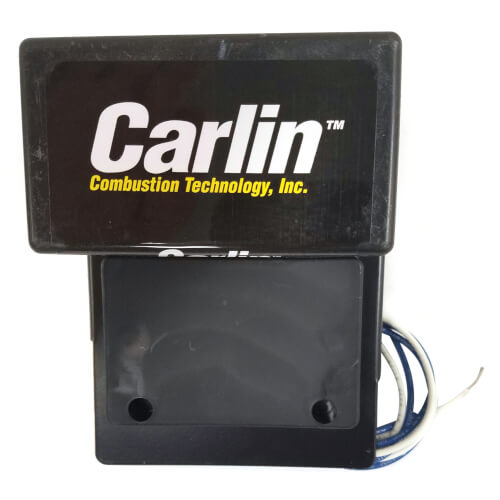

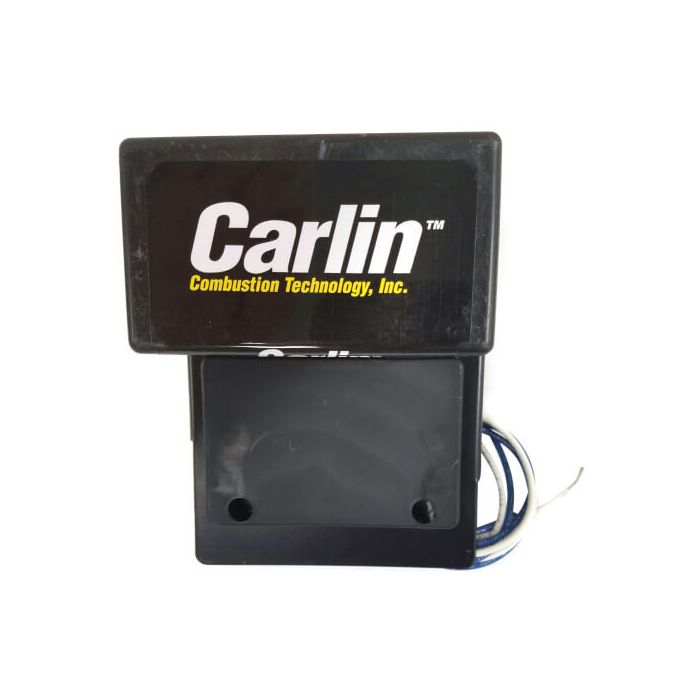

Carlin Combustion Technology 41000S0SC Igniter/Base

Product Description

The CARLIN COMBUSTION TECHNOLOGY 41000S0SC igniter/base is designed for use on 201CRD/301CRD gas burners. This igniter produces a 14,000 volt output for smoother ignition and is manufactured with solid state technology for durability and long life. Energy savings are maximized by its low current draw. It is epoxy sealed for better heat dissipation and water resistance.

• Designed for use on 201CRD/301CRD gas burners
• Features solid state technology for durability and long life
• Epoxy sealed for better heat dissipation and water resistance

Product Highlights

The 41000S0SC igniter/base provides reliable ignition for gas burners with durable construction and efficient operation.

Product Information

Standard Information

• Brand: CARLIN COMBUSTION TECHNOLOGY
• Manufacturer Part Number: 41000S0SC

Technical Specifications

• catalog number: 41000S0SC
• category: HVAC/R & Fans
• item: Igniter/Base
• manufacturer name: Carlin Combustion Technology
• manufacturer part number: 41000SOSC
• unspsc code: 40101800
• used on: 201CRD/301CRD Gas Burner
• Voltage: 120V
• Ignitor Output: 14 kV, 35 mA RMS
• Secondary Grounding: midpoint
• Operating temperatures: 32 to 140 Deg F
• Type: Constant Duty, Ignitor Spark
• Flame Sense Type: Electrode
• Ignition Source: Solid State Electronic Spark Ignitor
• Electrical Rating: 40 VA 120 Volt AC 60 Hertz
• Temperature Rating: 32 to 140 Deg F
• Application: Burner
• Approval: UL (Canada and US)
• Storage Temperature: -40 to 185 Deg F
• Includes: Base Plate
• Brand: Carlin
• Collection: Oil Burner Parts
• Frequency: 60HZ
• Primary Voltage: 120V
• Standard: UL and CSA
