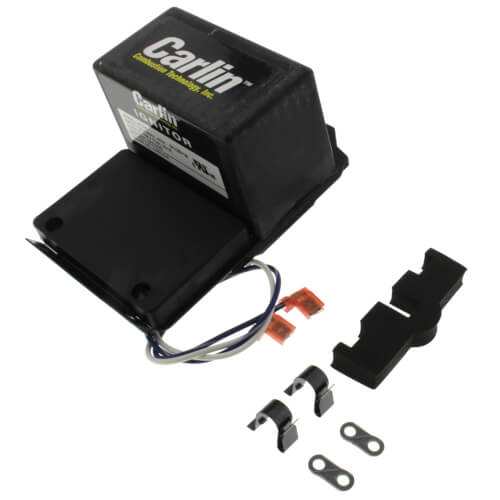

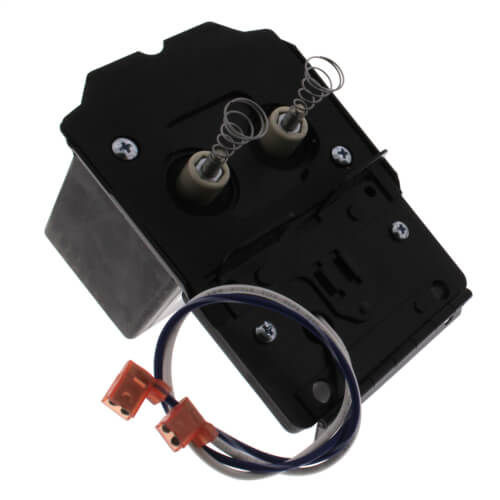

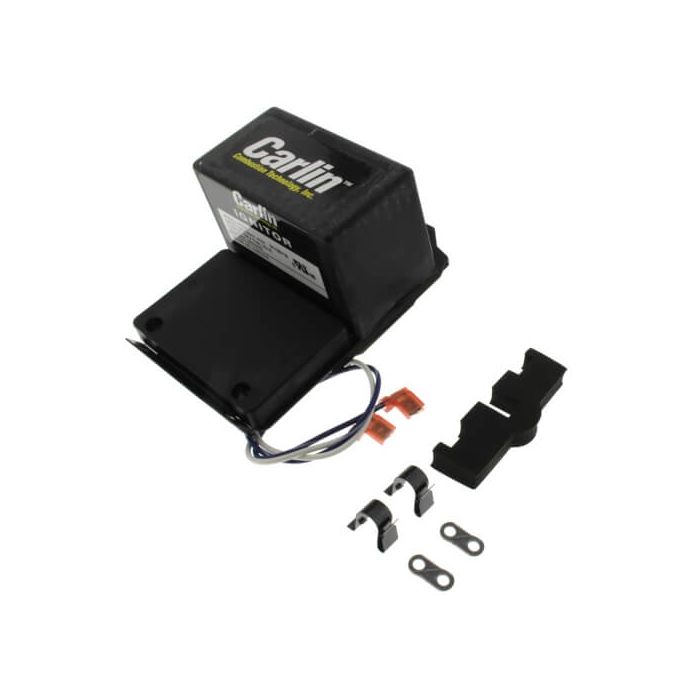

Carlin Combustion Technology 41000S0BK1 Ign/Base Bcktt

Product Description

The CARLIN COMBUSTION TECHNOLOGY 41000S0BK1 igniter/base is designed for use on Beckett AF/AFG burners. It produces a 19,000 volt output for smoother ignition and is manufactured with solid state technology for durability and long life. This ignitor is epoxy sealed for better heat dissipation and water resistance. Energy savings are maximized by its low current draw.

• Used On Beckett AF/AFG Burner
• Baseplate Mounting
• 120v

Product Highlights

The Carlin 41000S0BK1 igniter provides a constant voltage output across a wide range of input voltages and is UL and CSA certified.

Product Information

Standard Information

• Brand: CARLIN COMBUSTION TECHNOLOGY
• Manufacturer Part Number: 41000S0BK1
• Country of Origin: United States

Technical Specifications

• CATALOG NUMBER: 41000S0BK1
• Category: HVAC/R & Fans
• Description: Burner Igniter/Base; Item Igniter/Base; Used On Beckett AF/AFG Burner; Mounting Type Baseplate
• Item: Igniter/Base
• Manufacturer Name: Carlin Combustion Technology
• Manufacturer Part Number: 41000SOBK1
• Used On: Beckett AF/AFG Burner
• Mounting Type: Baseplate
• Product Type: Ignitor
• Voltage: 120v
• Power Source: Corded Electric
• Specification Met: FCC, UL
• Brand: Carlin
• Model: Carlln 41000S0BK1
• MPN: 41000S0BK1
• Volts: 120 V
• Frequency: 60 Hz
• Watts: 40 Watts
