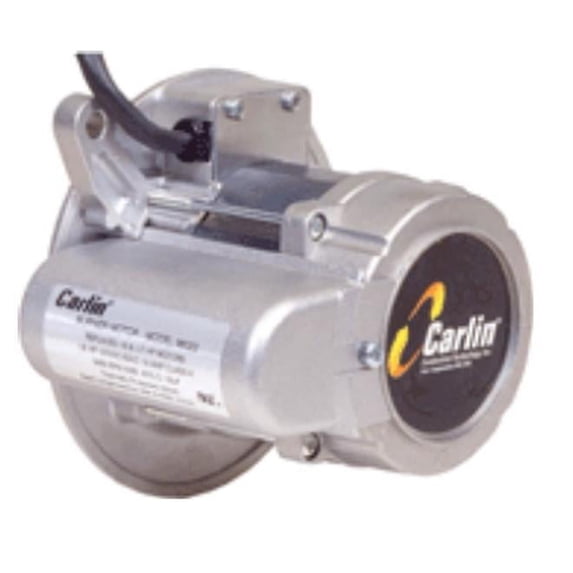

Carlin 98022 Universal Oil Burner Motor 1/7 HP, 120 Volt Beckett 21805U

Product Description

The CARLIN 98022 Universal Oil Burner Motor is engineered for residential burner applications. It operates on 120 VAC, single-phase power at 60 Hz, delivering 0.14 HP with a speed of 3450 RPM. This motor features a 48M frame and a 10-inch lead length, ensuring efficient and reliable performance for oil burner systems. It is recognized as a UL & ULC Component for US and Canadian markets, ensuring compliance with safety standards, and includes a reliable auto-reset thermal overload.

• More Efficient both Starting and Running
• More Reliable Auto Reset Thermal Overload
• Quiet Sealed Ball Bearings

Product Highlights

Features quiet sealed ball bearings and eliminates centrifugal start switch for enhanced durability and performance.

Product Information

Standard Information

• Brand: CARLIN
• Manufacturer Part Number: 98022

Technical Specifications

• Brand: Carlin
• Model: 98022
• Motor Type: AC Motor
• Input Voltage: 120 Volts
• Phase: Single Phase
• Frequency: 60 Hz
• Horsepower: 0.14 HP
• Speed: 3450 RPM
• Starting Current: 6.1 Amps
• Running Current: 1.8 RMS
• Frame: 48M
• Lead Length: 10 Inches
• Rotation: Clockwise
• Capacitor Location: 9:00
• Capacitor: 16 µF
• Certifications: UL & ULC Recognized Component (US & Canada)
