Carlin 41000S0WA3 Ign/Base Wyne M

Product Description

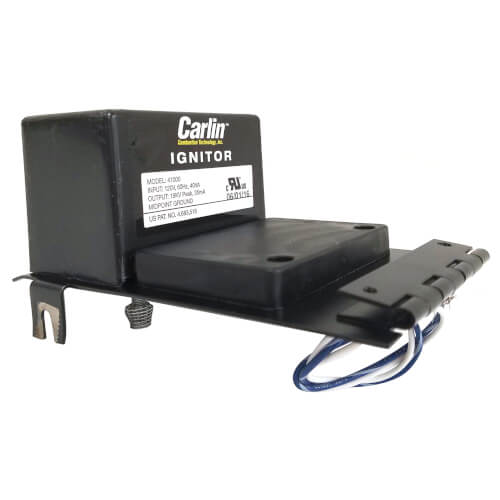

The Carlin COMBUSTION TECHNOLOGY 41000S0WA3 igniter base is designed for use with Wayne M burners. It produces a 14,000 volt output for smoother ignition and is manufactured with solid state technology for durability and high performance. The epoxy sealed unit offers better heat dissipation and water resistance. Energy savings are maximized by its low current draw.

• Designed for use with Wayne M burners
• Solid state technology for durability and high performance
• Epoxy sealed for water resistance and heat dissipation

Product Highlights

The Carlin 41000S0WA3 igniter base provides reliable ignition for Wayne M burners with its durable construction and efficient design.

Product Information

Standard Information

• Brand: CARLIN COMBUSTION TECHNOLOGY
• Manufacturer Part Number: 41000S0WA3

Technical Specifications

• CATALOG NUMBER: 41000S0WA3
• Category: HVAC/R & Fans
• Item: Igniter/Base
• Manufacturer Name: Carlin Combustion Technology
• Manufacturer Part Number: 41000SOWA3
• UNSPSC Code: 40101800
• Used On: Wayne M Burner
• Mounting Type: Baseplate
• Product Type: Ignitor
• Voltage: 120v
• Brand: Carlin
• Model: 41000S0WA3
• Type: Constant Duty, Ignitor Spark
• Flame Sense Type: Electrode
• Ignition Source: Solid State Electronic Spark Ignitor
• Electrical Rating: 40 VA 120 Volt AC 60 Hertz
• Temperature Rating: 32 to 140 Deg F
• Application: Burner
• Approval: UL (Canada and US)
• Ignitor Output: 14 Kilo Volt, 35 Milliamp RMS
• Secondary Grounding: Midpoint
• Storage Temperature: -40 to 185 Deg F
• Includes: Base Plate
• Series: CARLIN IGNITORS
