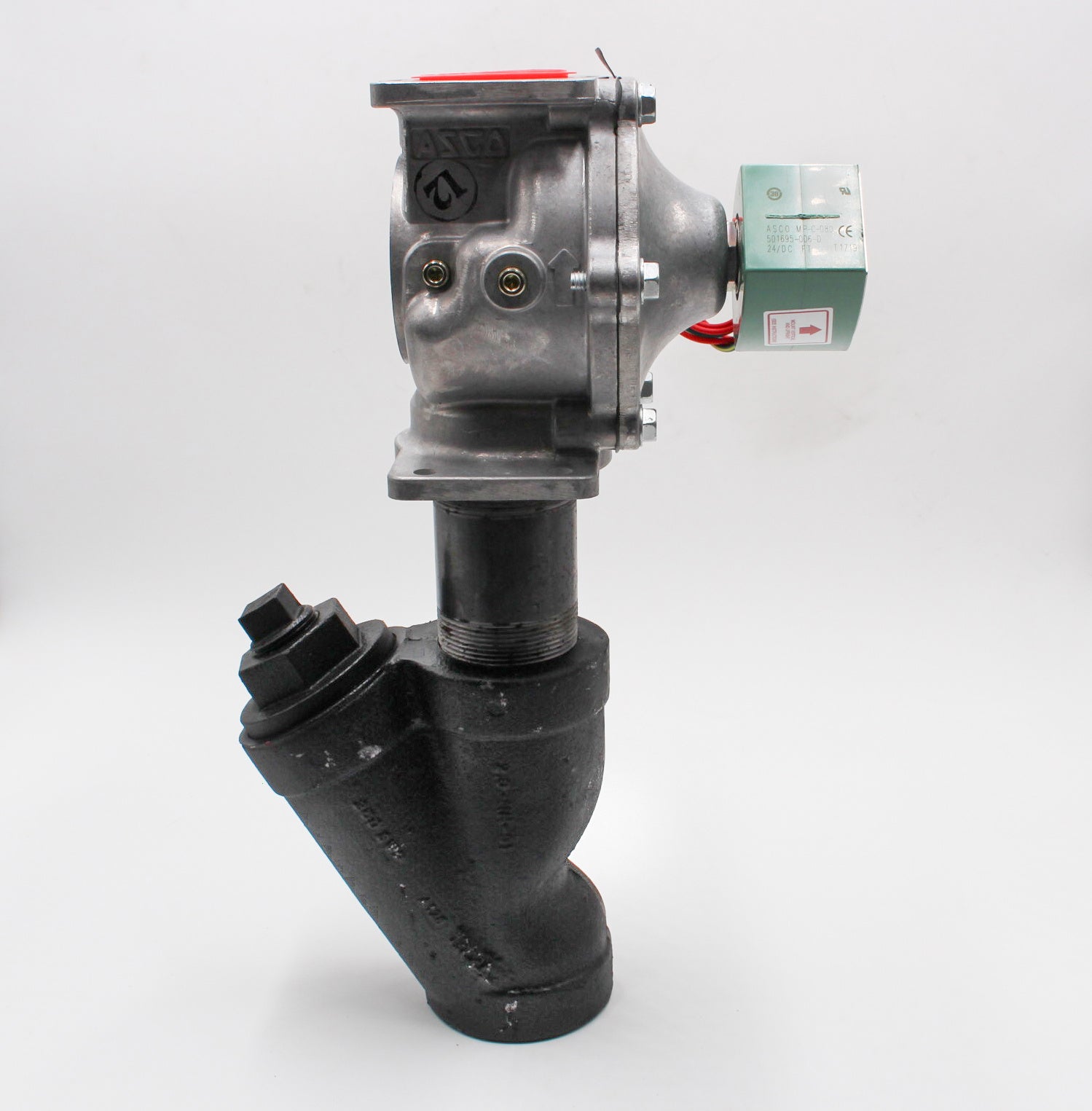

CaptiveAire SC-EGVC2-24 Ansul 2 Inch 24 VDC Electrical Gas Shutoff Valve

Product Description

The CaptiveAire SC-EGVC2-24 is a 2 inch 24 VDC electrical gas shutoff valve. This valve is designed to shut off the gas flow to appliances when activated. It includes an upstream strainer assembly and is compatible with HMI reset systems.

• 2 inch NPT connection
• Maximum operating pressure of five PSI
• Flow capacity rated at 2941

Product Highlights

This valve provides a reliable shutoff solution for gas appliances, ensuring safety during operation.

Product Information

Standard Information

• Brand: CaptiveAire
• Part Number: SC-EGVC2-24

Technical Specifications

• Voltage: 24 VDC
• Pipe Size: 2 inches
• Material: Aluminum, Cast Iron
• BTU/Hr Rating: 2940500
• Flow Capacity: 2941
• Max Operating PSI: 5
• Min Operating PSI: 0
• Mounting Orientation: Vertical
• Threads on Inlet & Outlet: NPT
