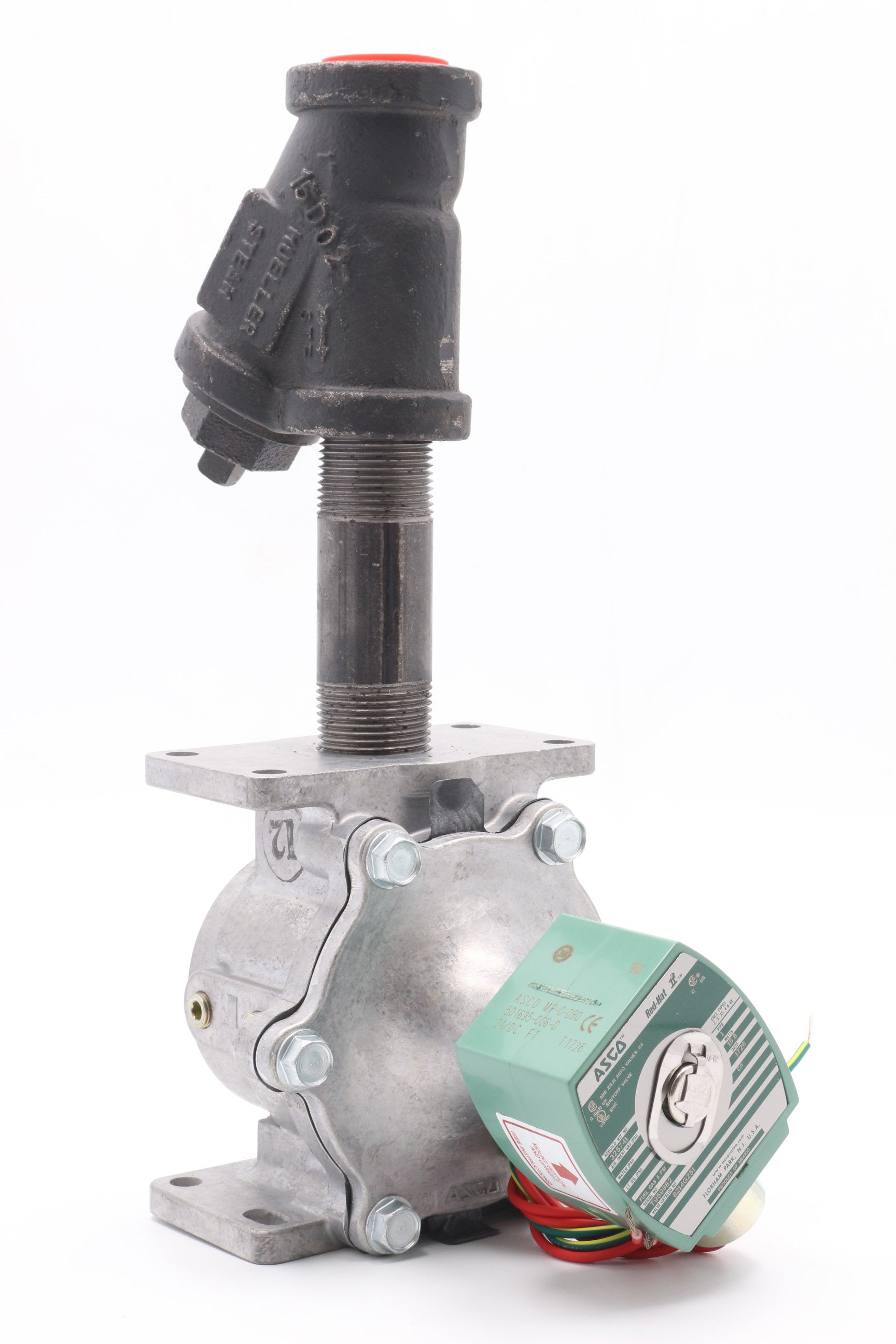

CaptiveAire SC-EGVC1-24 Ansul 1 Inch 24 VDC Electrical Gas Shutoff Valve

Product Description

The CaptiveAire SC-EGVC1-24 is a 1-inch electrical gas shutoff valve designed for use in gas applications. This valve operates at 24 VDC and is built to manage gas flow effectively. The shutoff valve comes with an upstream strainer assembly as a standard feature. It is intended for integration with HMI reset systems, ensuring safe and efficient operation.

• Electrically actuated, designed for gas shutoff.
• Includes upstream strainer assembly.
• Specifications include a max operating PSI of 5.

Product Highlights

This valve allows for safe gas flow management and automatic shutoff for gas appliances, enhancing safety in commercial and industrial applications.

Product Information

Standard Information

• Brand: CaptiveAire
• Part Number: SC-EGVC1-24

Technical Specifications

• Voltage: 24 VDC
• Pipe Size: 1 inch
• Flow Capacity: 1132
• BTU/Hr Rating: 1132300
• Max Operating PSI: 5
• Min Operating PSI: 0
• Mounting Orientation: Vertical
• Threads on Inlet & Outlet: NPT
