Captiveaire SC-EGVA2 Ansul 2 Inch 110 Vac Electrical Gas Shutoff Valve

Product Description

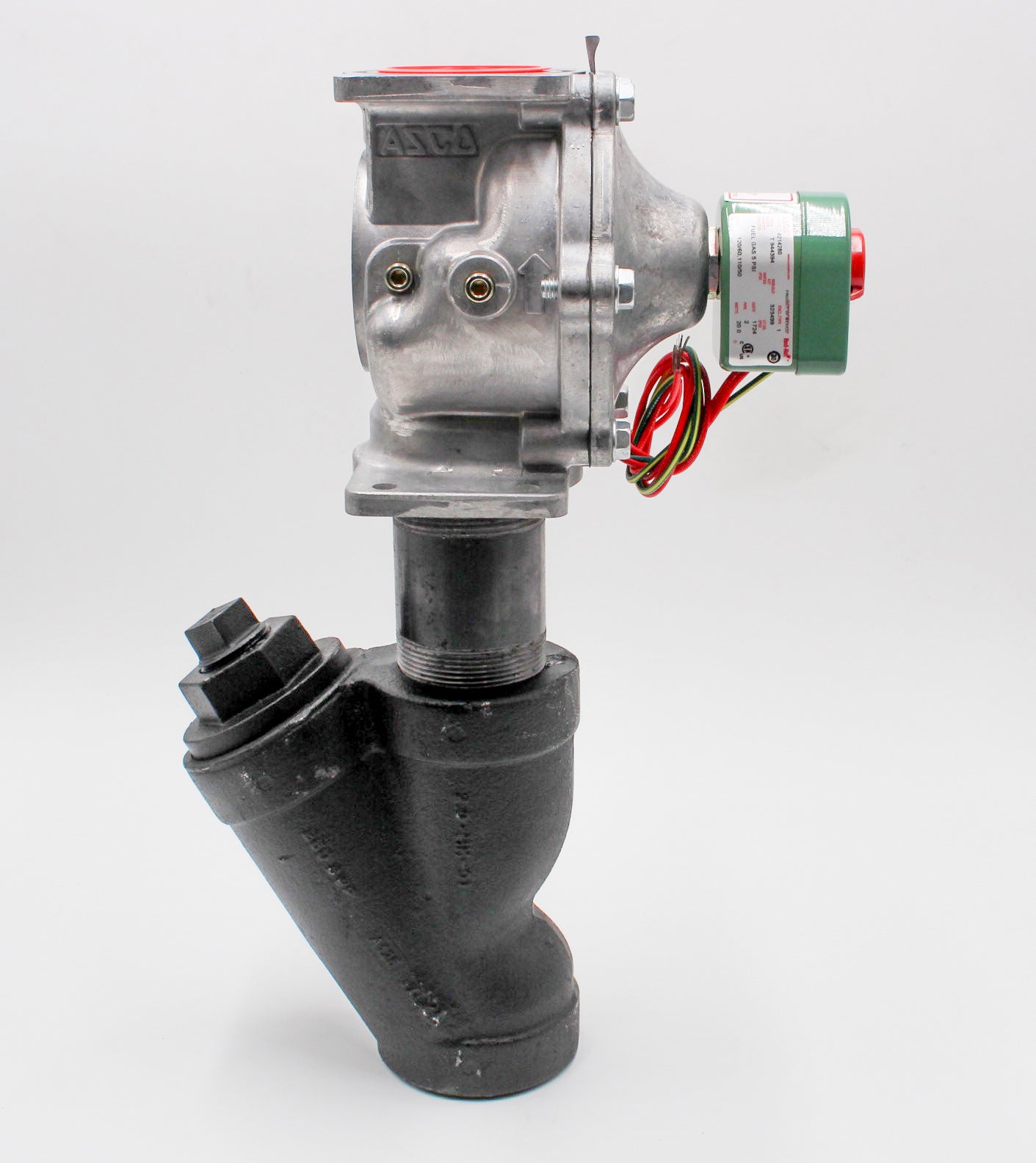

The Captiveaire SC-EGVA2 Ansul electrical gas shutoff valve is designed to provide reliable gas flow control in fire suppression and safety system applications. This 2-inch electric gas valve shutoff automatically stops gas flow when connected regulated release systems are activated.

• 2-inch electric gas valve shutoff for safety system applications

• Operates on 110 VAC power

• Designed to stop gas flow during regulated release activation

• Includes upstream strainer assembly for added protection

• Compatible with HMI reset systems

• Supports horizontal or vertical mounting configurations

• Constructed from aluminum and cast iron materials

• Rated for up to 2,940,500 BTU/Hr applications


Product Highlights

This valve is suitable for various applications in fire systems, ensuring safety by effectively cutting off gas flow when necessary.

• Best for: commercial fire suppression and appliance safety systems needing a reliable 110 VAC electric gas valve shutoff solution.

Product Information

Standard Information

• Brand: Captiveaire
• Part Number: SC-EGVA2

Technical Specifications

• Pipe Size: 2 inches
• Voltage: 110 VAC
• Material: Aluminum, Cast Iron
• BTU/Hr Rating: 2940500
• Flow Capacity: 2941
• Max Operating PSI: 5
• Min Operating PSI: 0
• Mounting Orientation: Horizontal / Vertical
