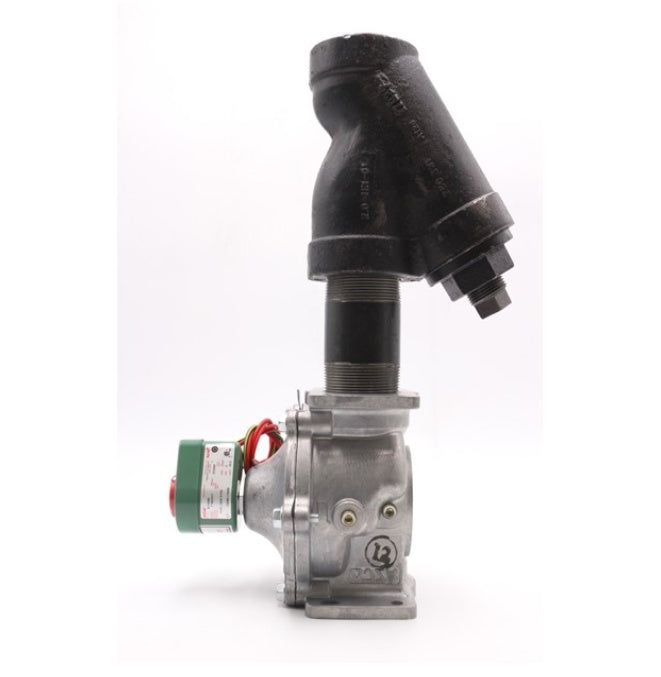

CAPTIVEAIRE SC-EGVA2-1/2 Ansul 2.5 Inch 110 VAC Electrical Gas Shutoff Valve

Product Description

CAPTIVEAIRE SC-EGVA2-1/2 is a 2.5 inch 110 VAC Electrical Gas Shutoff Valve designed to control gas flow to appliances. This valve includes an upstream strainer assembly and functions effectively with HMI reset systems. It is built to shut off gas flow immediately upon actuation of the regulated release assembly.

• Flow capacity of five thousand six hundred eight BTU.
• Maximum operating pressure of five PSI.
• Durable construction using aluminum and cast iron.

Product Highlights

This gas shutoff valve is essential for safety in gas-operated appliances, providing reliable flow control and protection against leaks.

Product Information

Standard Information

• Brand: CAPTIVEAIRE
• Part Number: SC-EGVA2-1/2

Technical Specifications

• Voltage: 110
• Pipe Size: 2.5 inches
• BTU/Hr Rating: 5607800
• Flow Capacity: 5608
• Max Operating PSI: 5
• Min Operating PSI: 0
• Mounting Orientation: Horizontal
• Threads on Inlet & Outlet: NPT
