CAPTIVEAIRE SC-EGVA1-1/4 Ansul 1.25 inch 110 VAC Electrical Gas Shutoff Valve

Product Description

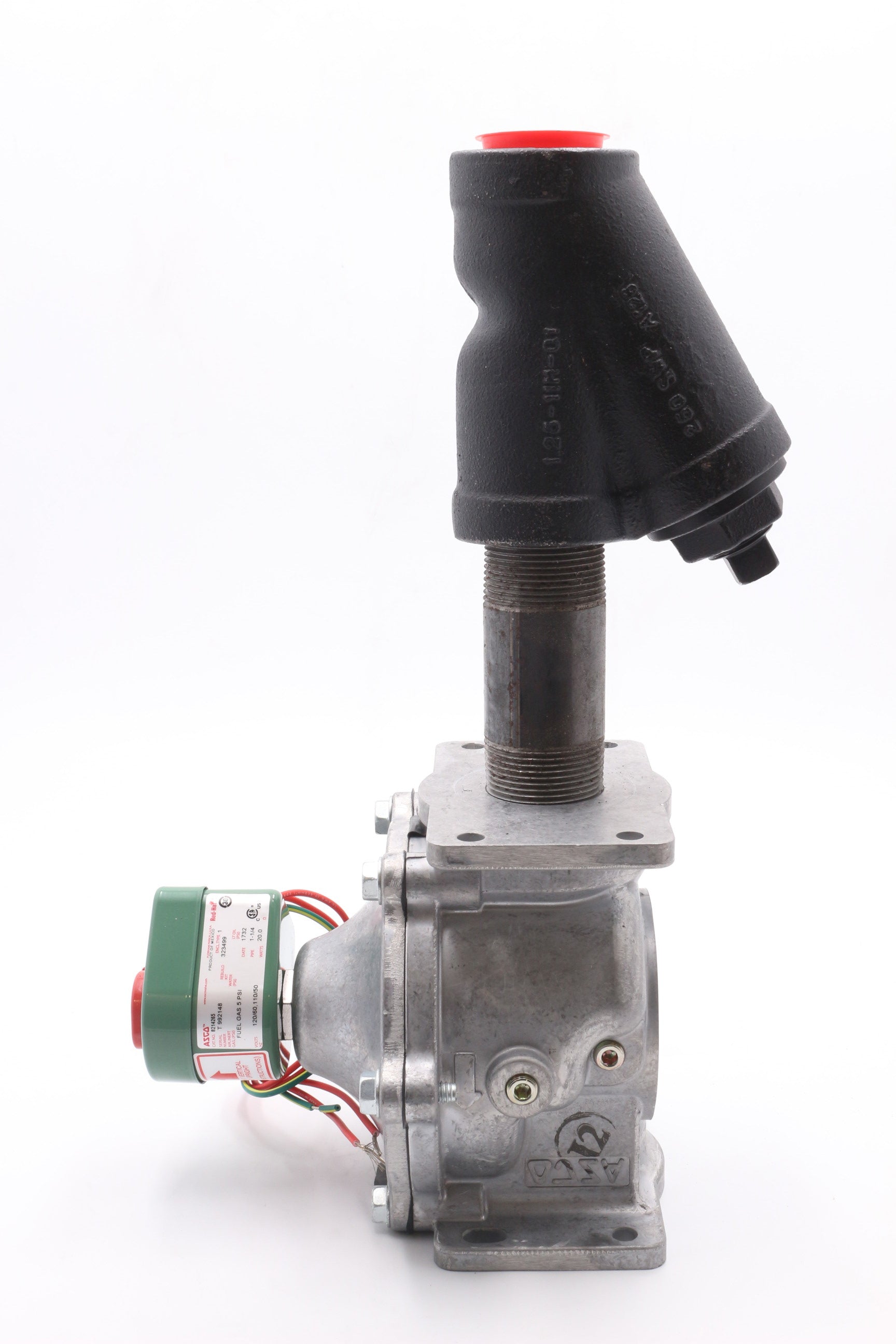

The CAPTIVEAIRE SC-EGVA1-1/4 is a 1.25 inch, 110 VAC electrical gas shutoff valve. This valve is designed to control the flow of gas to appliances. It features an upstream strainer assembly and works with HMI reset functionality. When the regulated release assembly is activated, this valve will shut off gas flow. It is suitable for commercial kitchen applications.

• Includes an upstream strainer assembly
• Works with HMI reset
• 1.25-inch NPT connection

Product Highlights

This valve is essential for safely managing gas supply to kitchen equipment. Its reliable shutoff capabilities ensure compliance with safety regulations in food service environments.

Product Information

Standard Information

• Brand: CAPTIVEAIRE
• Part Number: SC-EGVA1-1/4

Technical Specifications

• Pipe Size: 1.25 inches
• Voltage: 110 VAC
• Material: Aluminum, Cast Iron
• Flow Capacity: 1726
• Max Operating PSI: 5
• Min Operating PSI: 0
• Mounting Orientation: Horizontal / Vertical
• Threads on Inlet & Outlet: NPT
