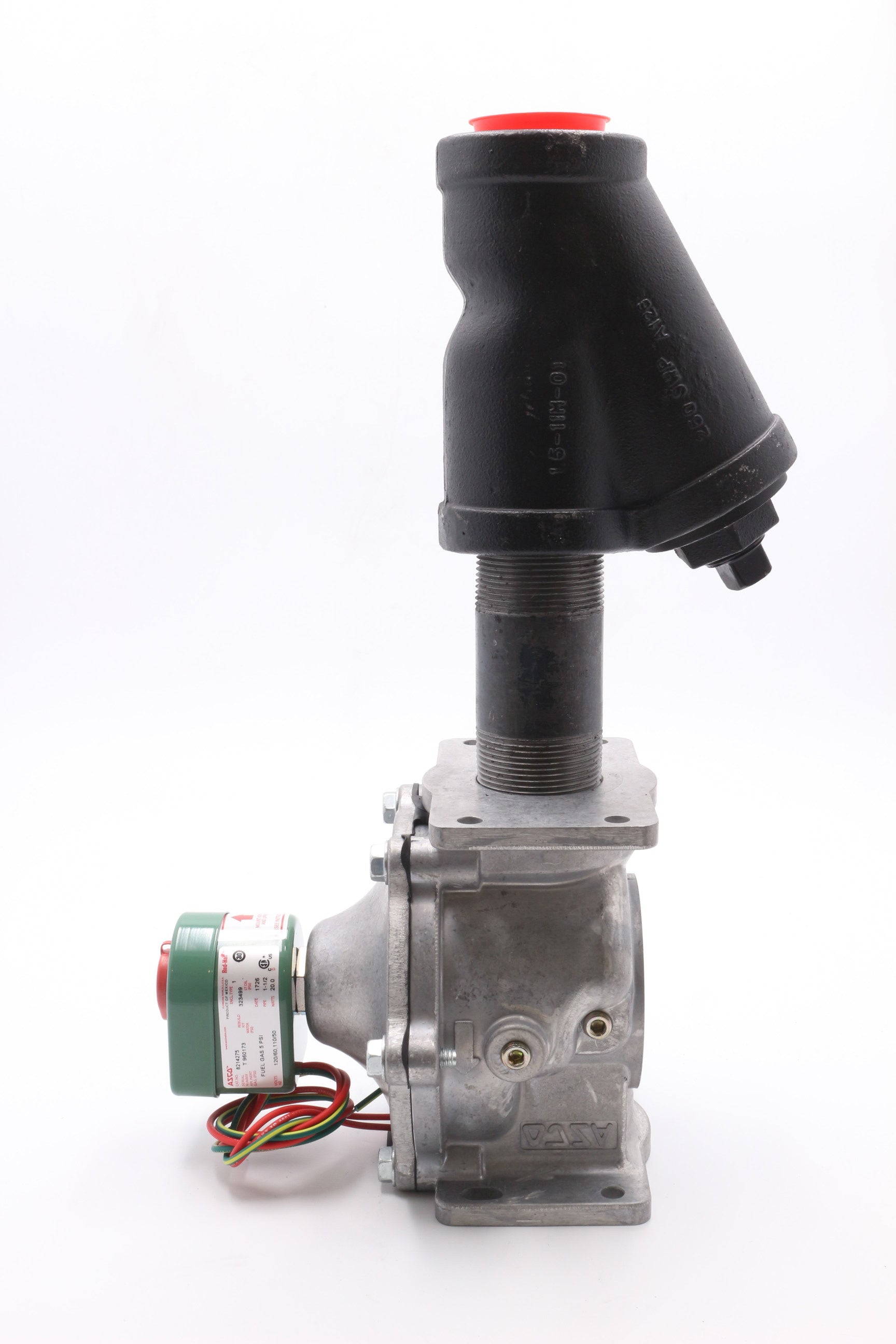

CaptiveAire SC-EGVA1-1/2 Ansul 1.5 inch 110 VAC Electrical Gas Shutoff Valve

Product Description

The CaptiveAire SC-EGVA1-1/2 is a reliable 1.5 inch 110 VAC electrical gas shutoff valve. This valve is designed to automatically stop gas flow to appliances. It is activated by the regulated release assembly for safety and compliance.

• Includes upstream strainer assembly
• Works with HMI reset
• Suitable for horizontal and vertical installation

Product Highlights

The valve provides an effective means to control gas flow, ensuring safe operation of connected appliances.

Product Information

Standard Information

• Brand: CaptiveAire
• Part Number: SC-EGVA1-1/2

Technical Specifications

• Pipe Size: 1.5 inches
• Voltage: 110 VAC
• Flow Capacity: 2406 BTU/Hr
• Max Operating PSI: 5
• Min Operating PSI: 0
• Material: Aluminum, Cast Iron
• Threads on Inlet & Outlet: NPT
• Mounting Orientation: Horizontal / Vertical
