CaptiveAire MGVA1 Ansul 1 Inch Mechanical Gas Shutoff Valve

Product Description

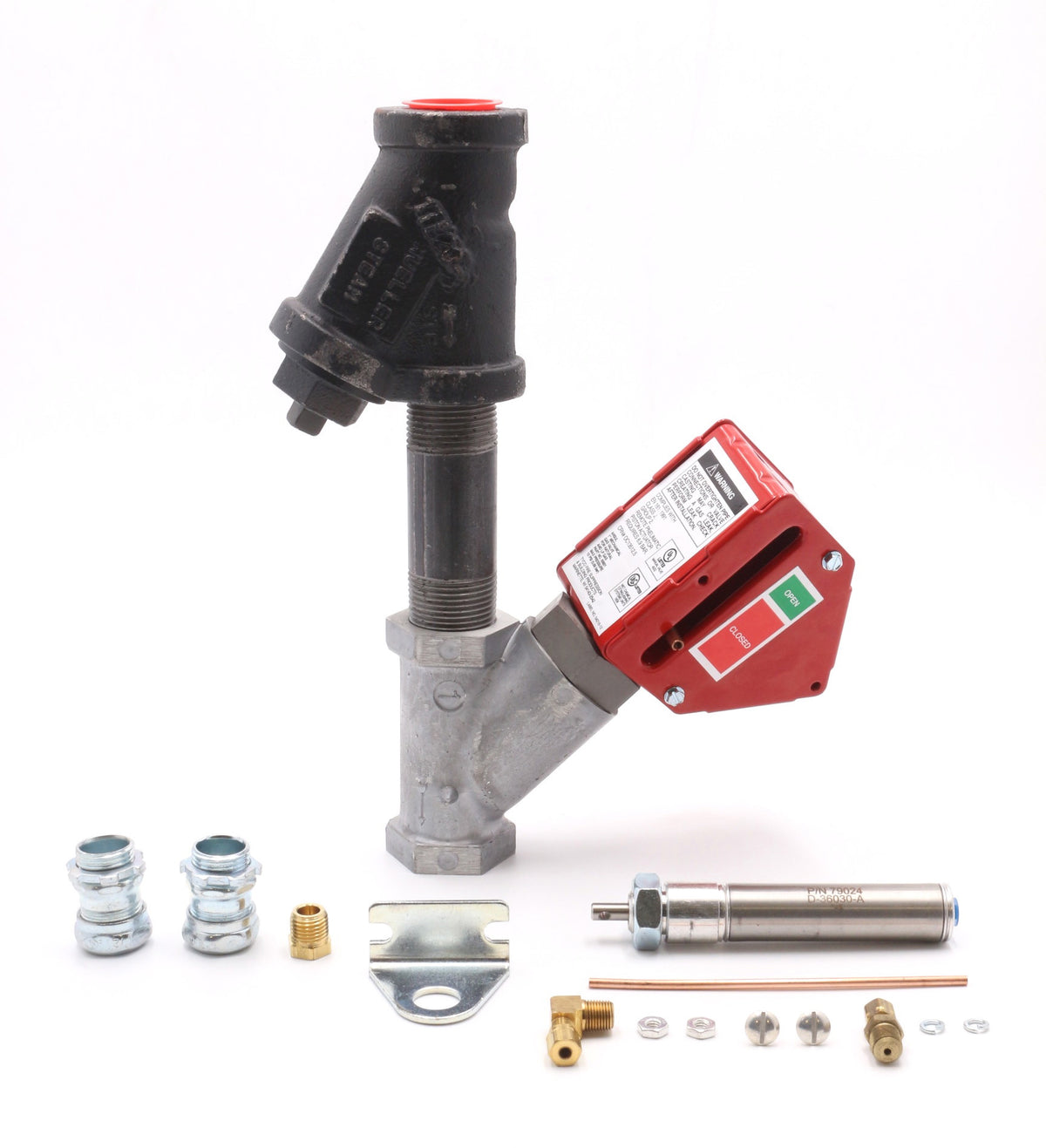

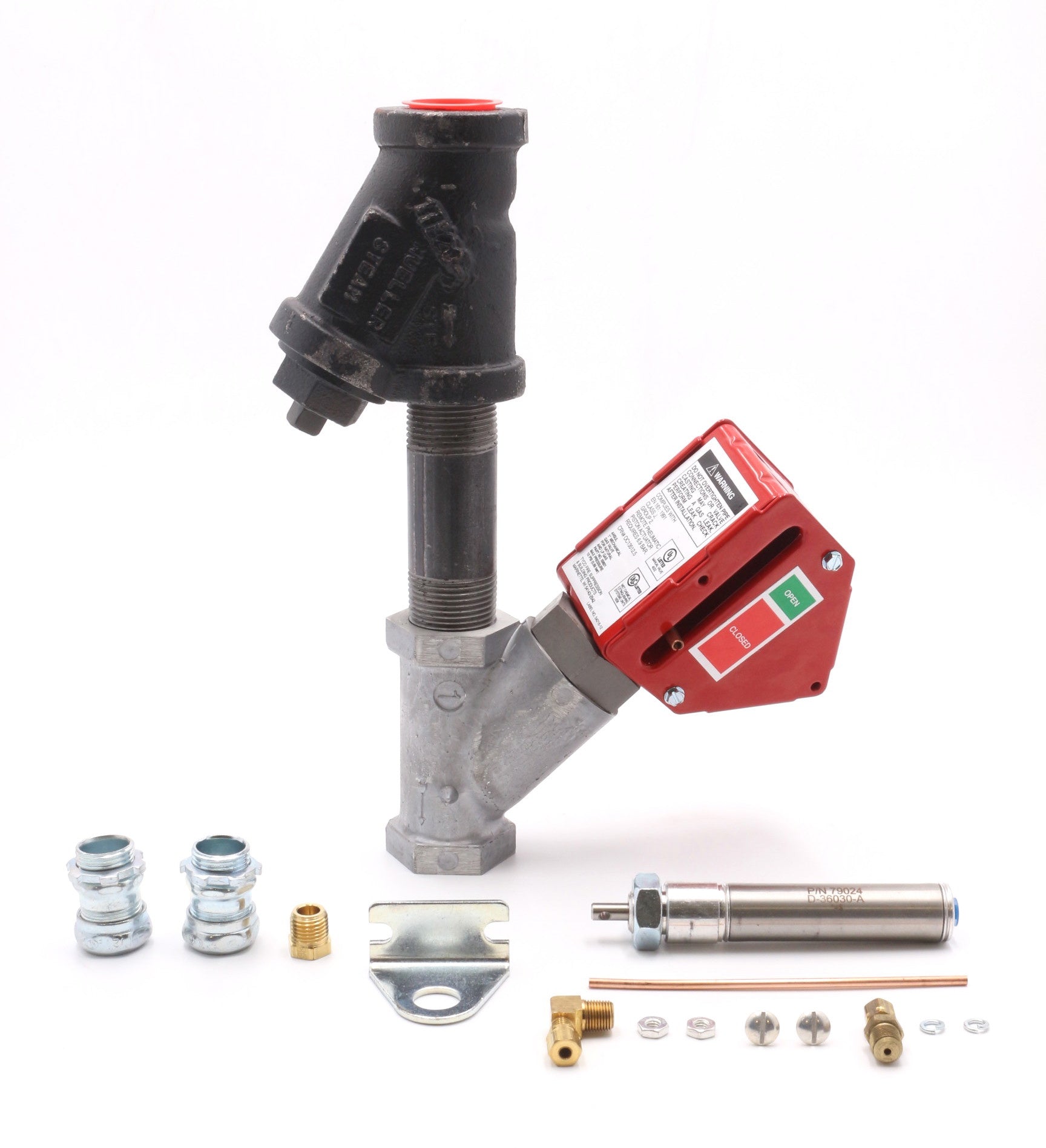

The CaptiveAire MGVA1 is a one-inch mechanical gas shutoff valve designed for effective gas control in commercial applications. This valve features an upstream strainer assembly that helps to prevent debris from entering the gas line, which ensures smoother operation and higher safety standards.

• Includes upstream strainer assembly
• Shuts off gas flow upon activation
• Compatible with various gas appliance systems

Product Highlights

This gas shutoff valve is crucial for safety in gas appliances, preventing unintentional gas flow during emergencies or service interventions.

Product Information

Standard Information

• Brand: CaptiveAire
• Part Number: MGVA1
• Pipe Size: 1 inch
• Material: Aluminum, Cast Iron
• Max Operating PSI: 10
• Min Operating PSI: 0
• BTU/Hr Rating: 1288000
• Mounting Orientation: Horizontal

Technical Specifications

• Threads on Inlet & Outlet: NPT
• Includes Gas Y-Strainer: 100 Micron Mesh, 1 NPT
• Available Quantity: Minimum order 1, maximum order 500
