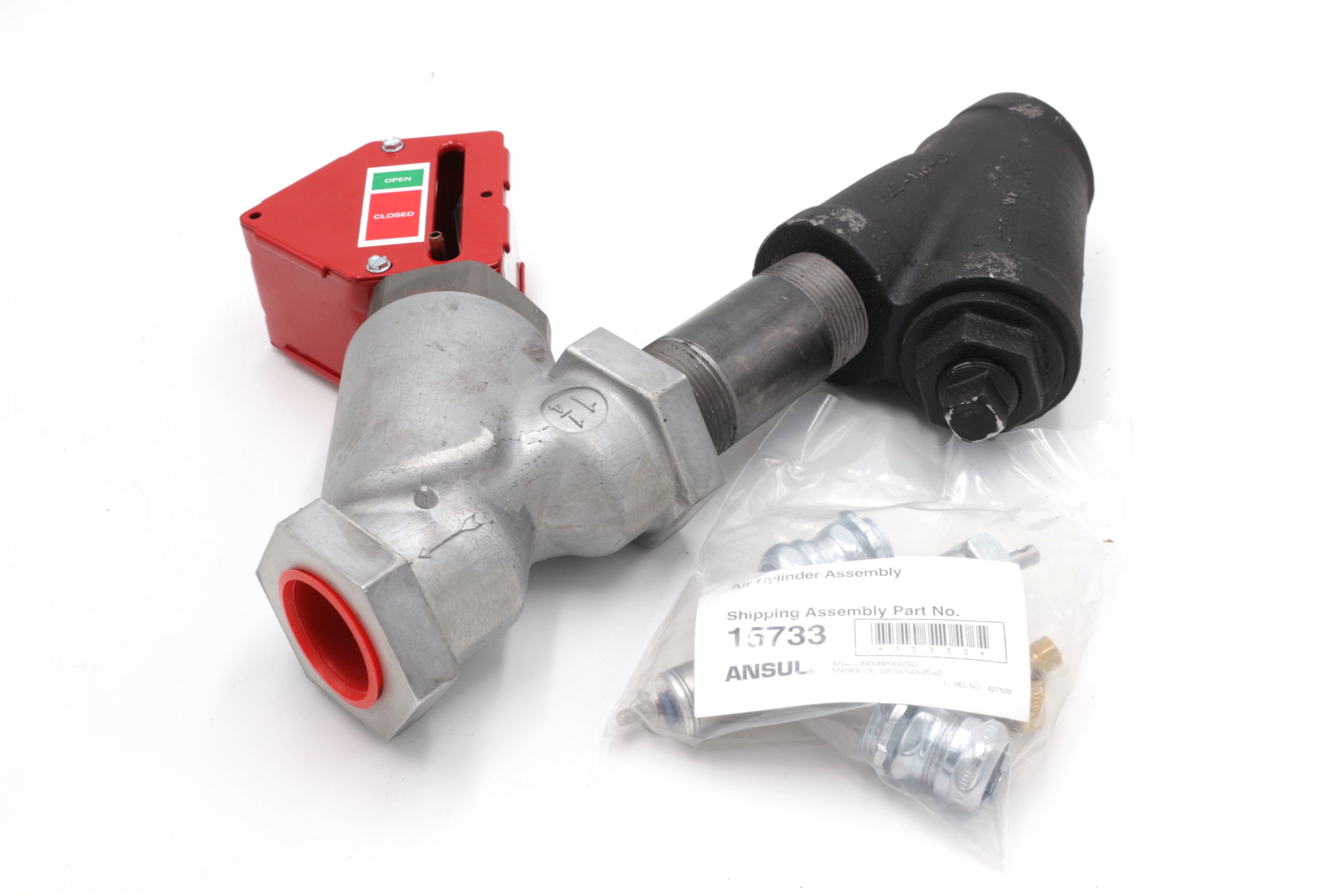

CaptiveAire MGVA1-1/4 Ansul 1.25 Inch Mechanical Gas Shutoff Valve

Product Description

The CaptiveAire MGVA1-1/4 is an Ansul 1.25 inch mechanical gas shutoff valve. This valve includes an upstream strainer assembly. It is designed to shut off the flow of gas to appliances when activated by the regulated release assembly.

• 1.25 inch pipe size
• Maximum operating pressure of ten PSI
• Flow capacity rated at 1718

Product Highlights

This valve provides effective gas flow control for various gas appliances. It is easy to install and suitable for horizontal mounting.

Product Information

Standard Information

• Brand: CaptiveAire
• Part Number: MGVA1-1/4

Technical Specifications

• Material: Aluminum, Cast Iron
• Pipe Size: 1.25 inches
• BTU/Hr Rating: 1718000
• Flow Capacity: 1718
• Maximum Operating PSI: 10
• Minimum Operating PSI: 0
• Mounting Orientation: Horizontal
• Threads on Inlet & Outlet: NPT
