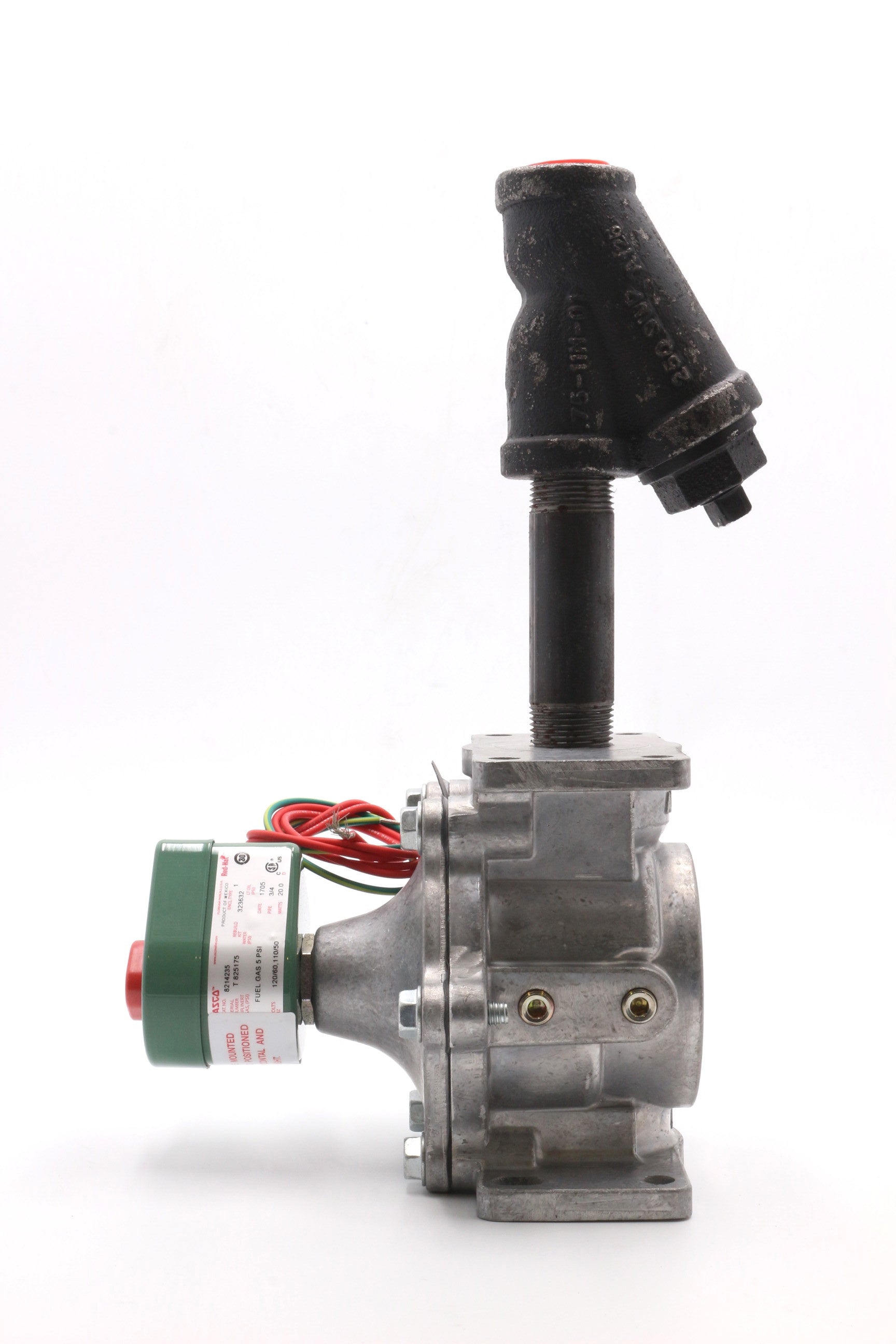

CAPTIVEAIRE EGVA3/4 Ansul 0.75 inch 110 VAC Electrical Gas Shutoff Valve

Product Description

The CaptiveAire EGVA3/4 is a 0.75 inch electrical gas shutoff valve designed for use in fire prevention systems. This valve operates at 110 VAC and ensures the safety of gas appliances by shutting off the gas supply upon actuation. It includes an upstream strainer assembly and is compatible with HMI reset systems.

• Operates at 110 VAC
• Features an upstream strainer assembly
• Ideal for fire safety applications

Product Highlights

This valve is essential for effective gas control in commercial kitchens and industrial settings, ensuring safe operation and compliance with safety regulations.

Product Information

Standard Information

• Brand: CaptiveAire
• Part Number: EGVA3/4

Technical Specifications

• Pipe Size: 0.75 inches
• Voltage: 110 VAC
• Material: Aluminum, Cast Iron
• Flow Capacity: 593 BTU/Hr
• Max Operating PSI: 5
• Min Operating PSI: 0
• Mounting Orientation: Horizontal / Vertical
• Threads on Inlet & Outlet: NPT
