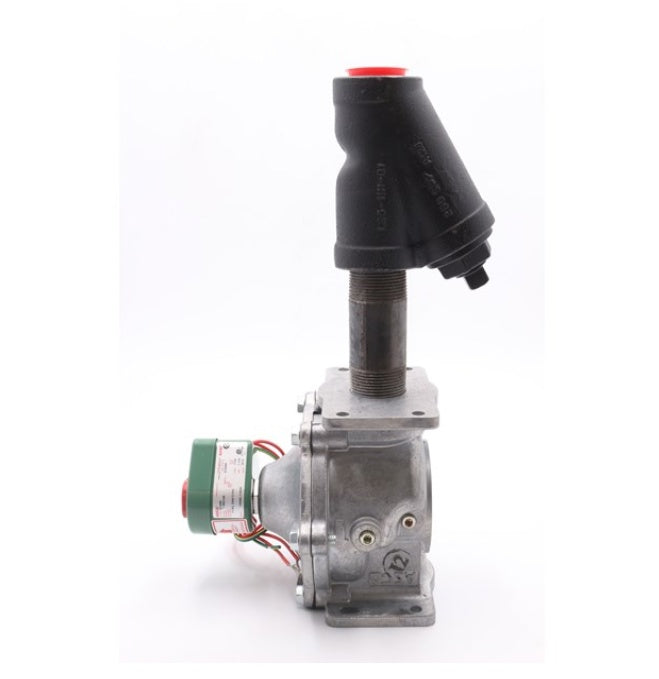

CAPTIVEAIRE EGVA1-1/4 Ansul 1.25 Inch 110 VAC Electrical Gas Shutoff Valve

Product Description

The CAPTIVEAIRE EGVA1-1/4 is a 1.25 inch 110 VAC electrical gas shutoff valve that is designed to control the flow of gas to appliances. This valve includes an upstream strainer assembly and is compatible for use with HMI reset systems. It ensures immediate shutoff of gas flow upon activation of the regulated release assembly.

• Includes upstream strainer assembly
• Compatible with HMI reset
• Shuts off gas flow upon actuation

Product Highlights

This shutoff valve is essential for safe gas management in various applications. It provides reliable performance and is built for durability and efficiency.

Product Information

Standard Information

• Brand: CAPTIVEAIRE
• Part Number: EGVA1-1/4

Technical Specifications

• Pipe Size: 1.25 inches
• Voltage: 110 VAC
• Material: Aluminum, Cast Iron
• BTU/Hr Rating: 1725500
• Flow Capacity: 1726
• Max Operating PSI: 5
• Min Operating PSI: 0
• Mounting Orientation: Horizontal / Vertical
• Threads on Inlet & Outlet: NPT
