CaptiveAire DU85V23P6009O Power Pack for DU85 Exhaust Fan

Product Description

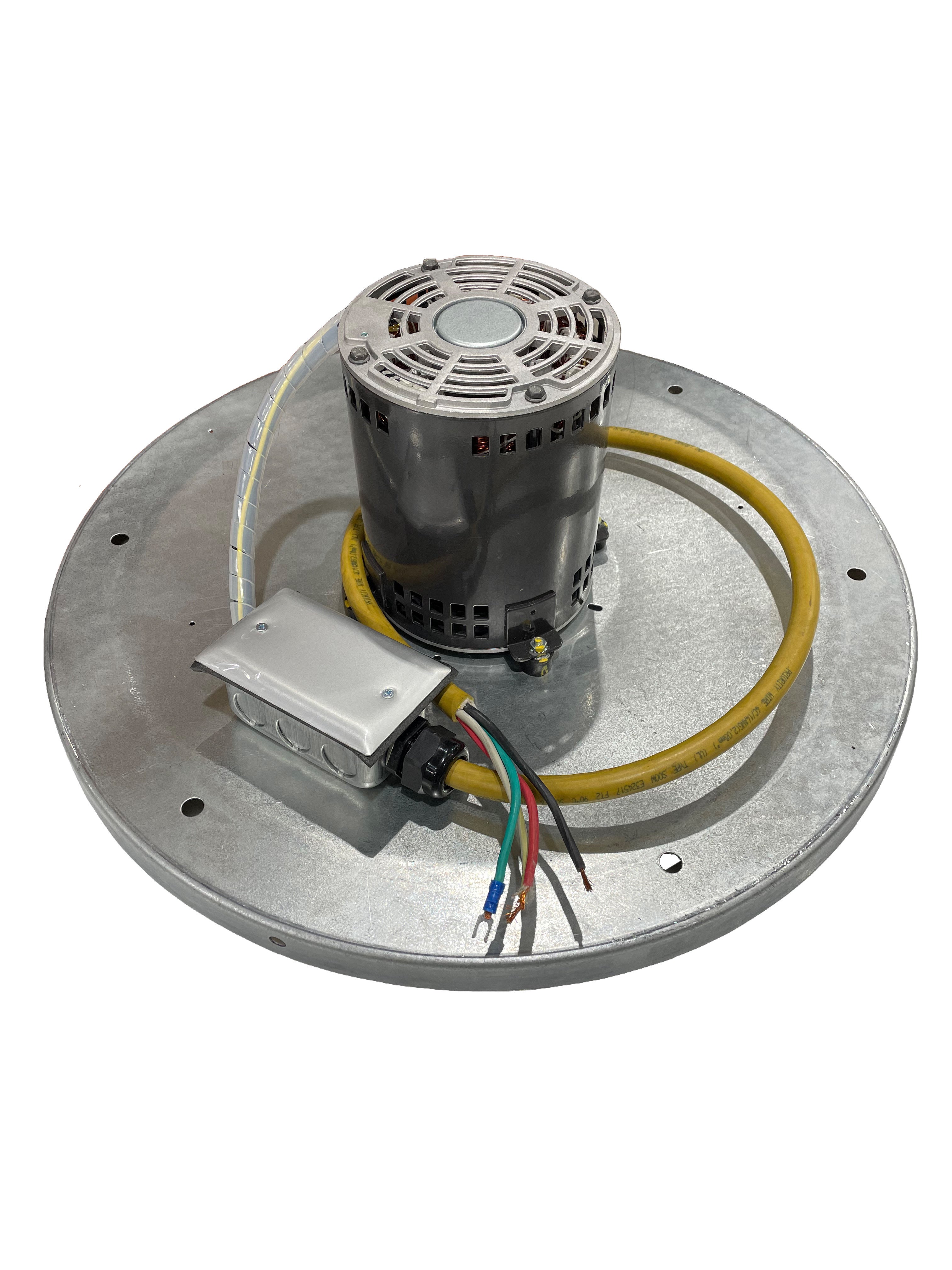

The CaptiveAire DU85V23P6009O is a power pack designed for the DU85 exhaust fan. This assembly includes a preassembled motor plate equipped with a three-phase three-quarters horsepower motor designed for operation at 208/230 volts. The unit is fitted with S11D70 isolators for enhanced stability, although these are not suitable for wall mounting.

• Includes motor, motor plate, and isolators.
• Designed specifically for the DU85 exhaust fan.
• Preassembled for easy installation.

Product Highlights

This unit is ideal for replacement or upgrade, ensuring optimal performance of your existing DU85 exhaust fan. It supports various applications in commercial kitchen ventilation and other industrial settings.

Product Information

Standard Information

• Brand: CaptiveAire
• Part Number: DU85V23P6009O

Technical Specifications

• Motor Type: Three-phase
• Horsepower: 0.75 HP
• Voltage: 208/230V
• RPM: 1725
• Frame Size: 56Z-70
• Insulation Class: F
• Dimensions: 15.75 inches diameter top, 11.625 inches diameter insulated bottom, 7.625 inches height
• Weight: Not specified
