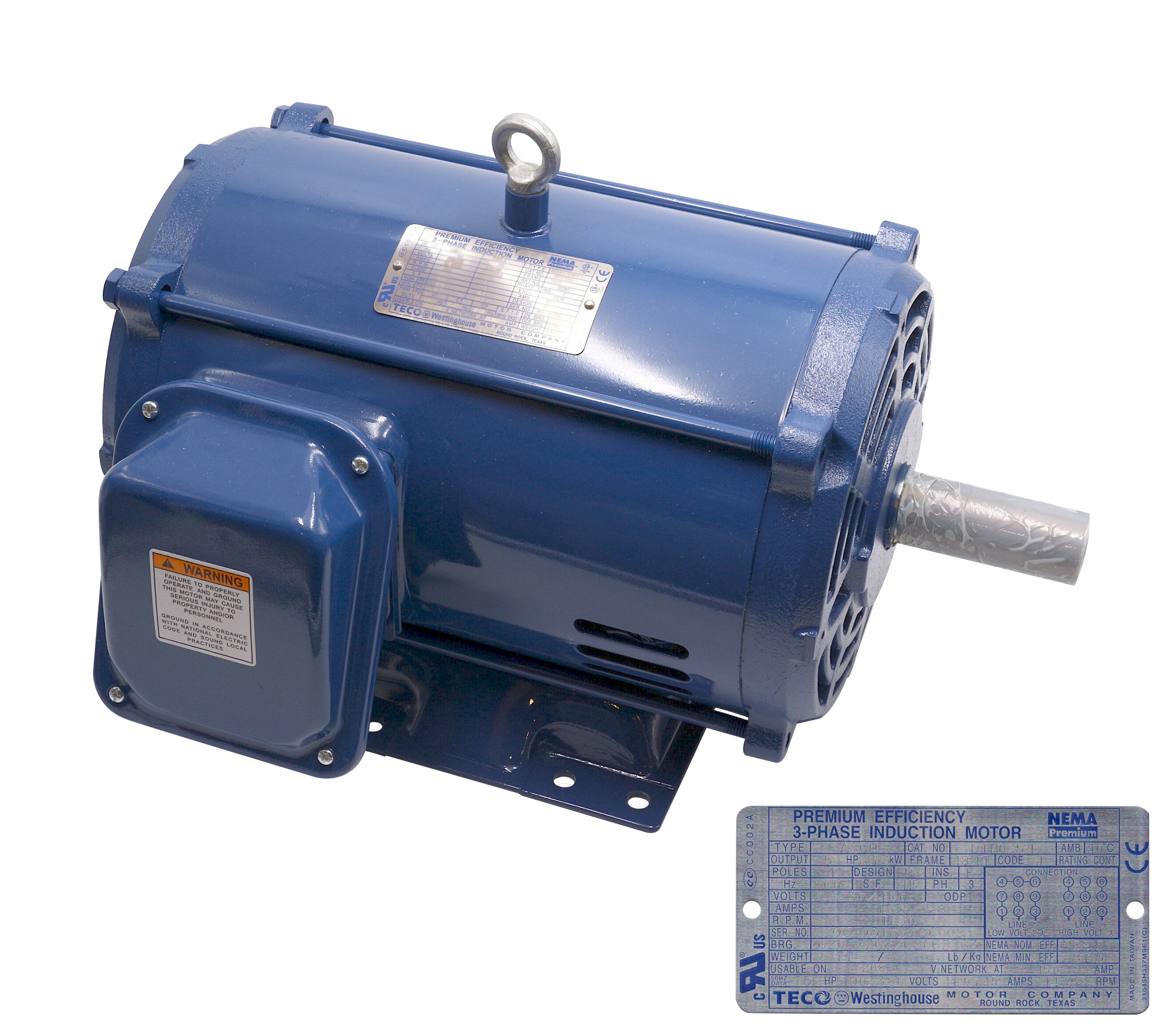

CaptiveAire DTP0054 5 HP 3 Phase Inverter Duty Motor 230/460 VAC

Product Description

The CaptiveAire DTP0054 is a 5 HP 3 Phase Inverter Duty Motor designed for use in various applications requiring reliable performance. This motor operates on 230/460 VAC, offering versatility in power supply options.

• Rated for voltage of 230/460 VAC
• Features four poles for consistent operation
• Constructed with durable metal for longevity

Product Highlights

This motor is inverter rated and features a keyway shaft diameter of one and one-eighth inches, making it suitable for multiple installations.

Product Information

Standard Information

• Brand: CaptiveAire
• Part Number: DTP0054
• Availability: In Stock

Technical Specifications

• Power Rating: 5 HP
• Phase: 3
• Voltage: 230/460 VAC
• Efficiency at 50%: 89%
• Efficiency at 75%: 90%
• Efficiency at 100%: 89.5%
• Nameplate RPM: 1750
• Insulation Class: F
• Inverter Rated: Yes
• Shaft Diameter: Keyway X 1-1/8 inches
• Shaft Length: 2.75 inches
• NEMA Frame Size: 184T
• Enclosure Type: ODP
• Material: Metal
• Max Insulation Temperature: 311 F
• Center to Base Height: 4.5 inches
