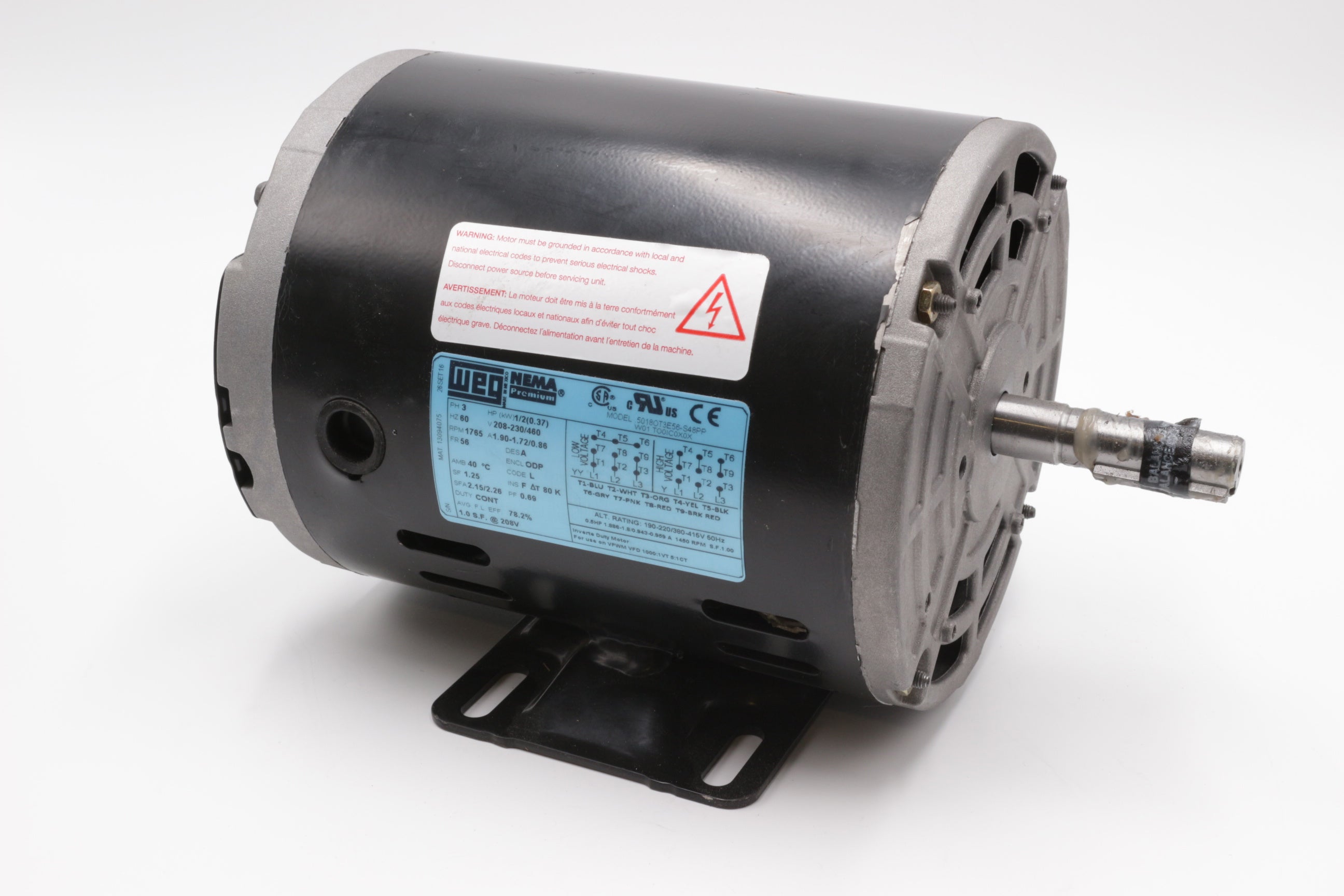

CaptiveAire .5018OT3E56-S48PP 0.5 HP 3 Phase Inverter Duty Motor

Product Description

The CaptiveAire .5018OT3E56-S48PP is a 0.5 horsepower three-phase inverter duty motor designed for efficiency and durability. This motor operates at voltages of 208-230 and 460 VAC, making it suitable for various industrial applications.

• Powerful 0.5 HP with a premium efficiency rating
• Inverter rated for reliable performance
• Designed for ease of installation with a keyway shaft

Product Highlights

This motor features an open drip-proof (ODP) enclosure and is built to handle demanding applications. It has a nameplate RPM of 1765 and a shaft length of 1.875 inches.

Product Information

Standard Information

• Brand: CaptiveAire
• Part Number: .5018OT3E56-S48PP

Technical Specifications

• HP: 0.5
• Voltage: 208-230/460
• Phase: 3
• Poles: 4
• Enclosure Type: ODP
• Shaft Diameter: Keyway x 5/8 inches
• NEMA Frame Size: 56
• Insulation Class: F
• Max Insulation Temp: 311 F
• Efficiency at 50%: 70.0
• Efficiency at 75%: 75.5
• Efficiency at 100%: 78.2
• Center to Base: 3.5 inches
