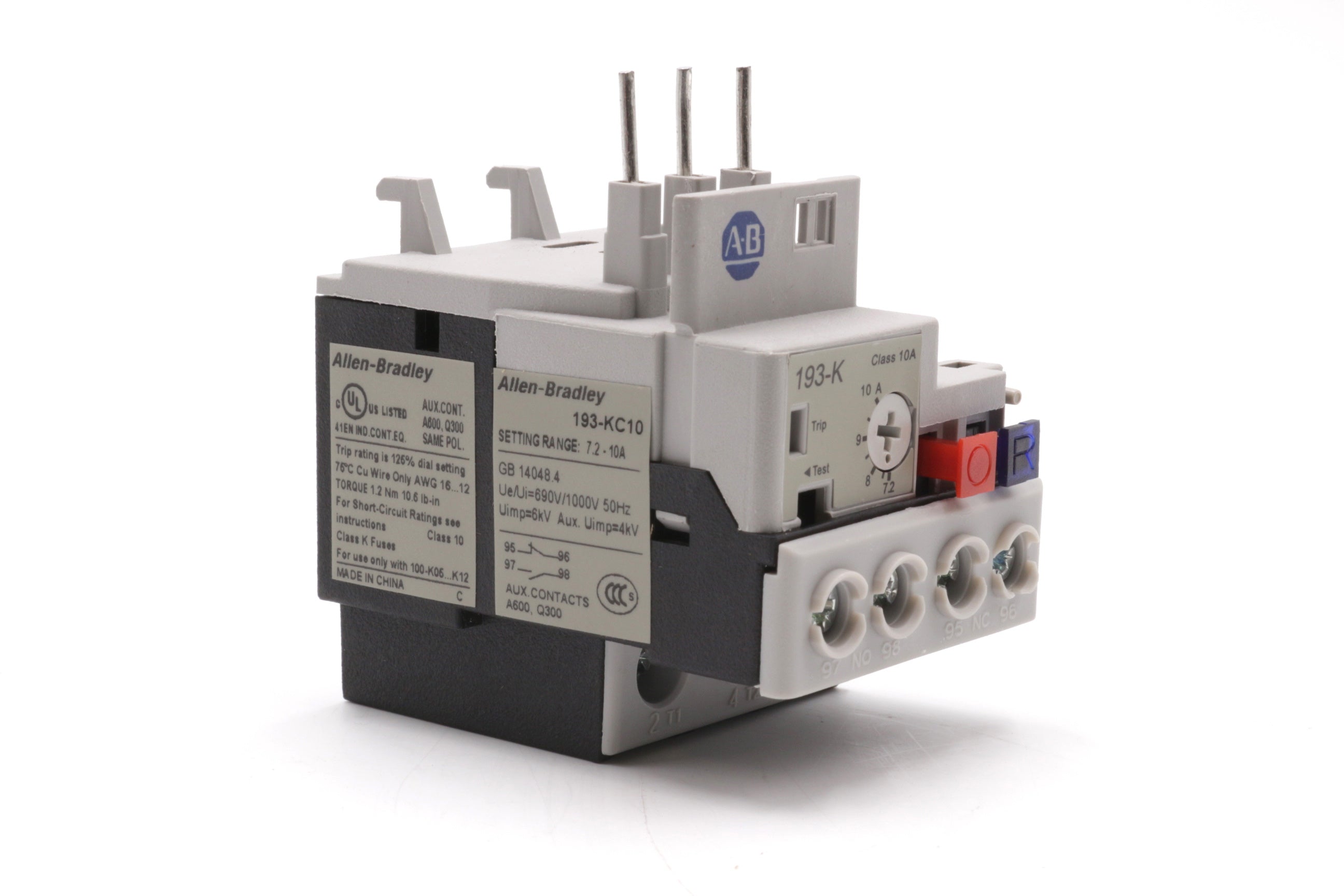

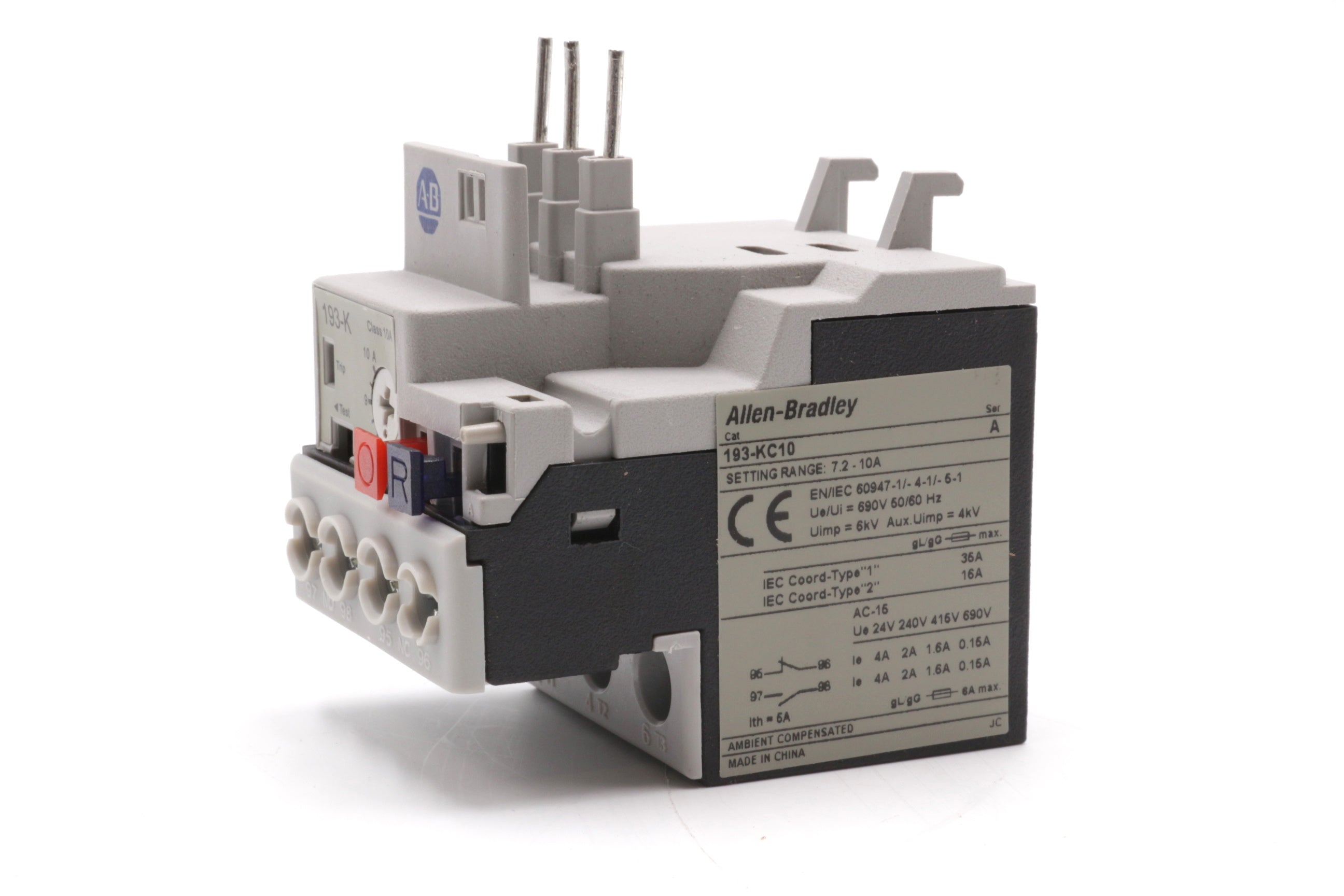

CaptiveAire 193-KC10 Motor Overload - Range of 7.2A to 10.0A

Product Description

The CaptiveAire Motor Overload is designed for use in various electrical applications with a current range of seven point two amperes to ten amperes. This unit is suitable for multiple voltage types, including twenty-four AC, two hundred forty AC, four hundred AC, and six hundred ninety AC, as well as twenty-four DC, one hundred ten DC, two hundred twenty DC, and four hundred forty DC. It features both trip indication and phase loss sensitivity, making it a reliable choice for electrical systems.

• Rated for AC voltages of 24, 240, 400, and 690
• Rated for DC voltages of 24, 110, 220, and 440
• Trip indicator and phase loss sensitivity included

Product Highlights

This motor overload is essential for protecting motors against overload conditions and ensuring proper operation in electrical circuits.

Product Information

Standard Information

• Brand: CaptiveAire
• Part Number: 193-KC10

Technical Specifications

• Color: Gray
• Material: Plastic
• Test Release: Yes
• Trip Indicator: Yes
• Phase Loss Sensitivity: Yes
• Rated Operating Currents (DC): 2A, 0.4A, 0.25A, 0.08A
• Rated Operating Voltages (DC): 24VDC, 110VDC, 220VDC, 440VDC
