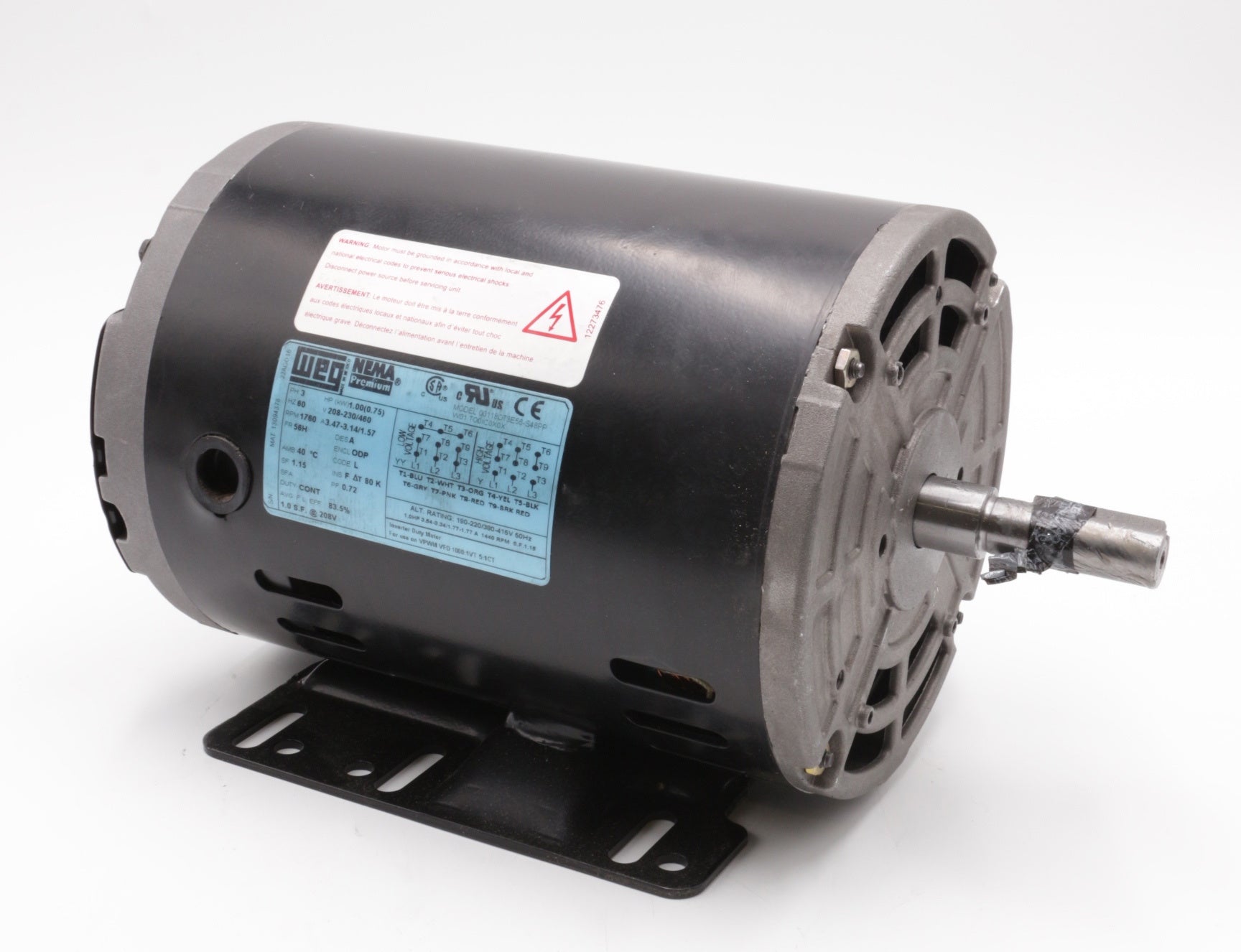

CaptiveAire 00118OT3E56-S48PP 1 HP 3 Phase Inverter Duty Motor

Product Description

The CaptiveAire 1 HP 3 Phase Inverter Duty Motor, MPN 00118OT3E56-S48PP, is designed for high efficiency and durability. This motor operates on a voltage range of two hundred eight to four hundred sixty VAC, suitable for various applications including exhaust fans. It features a robust metal construction, ensuring long-term reliability and performance.

• Rated for 208-230/460 VAC
• Premium efficiency with 100% efficiency rated at 83.5%
• NEMA frame size of 56 for easy installation

Product Highlights

This inverter duty motor is ideal for HVAC applications, providing stable operation under varying loads. Its ODP enclosure type protects against environmental factors.

Product Information

Standard Information

• Brand: CaptiveAire
• Phase: 3

Technical Specifications

• HP: 1
• Poles: 4
• Material: Metal
• Nameplate RPM: 1760
• Shaft Length: 1.875 inches
• Shaft Diameter: Keyway X 5/8 inches
• Insulation Class: F
• Inverter Rated: Inverter
