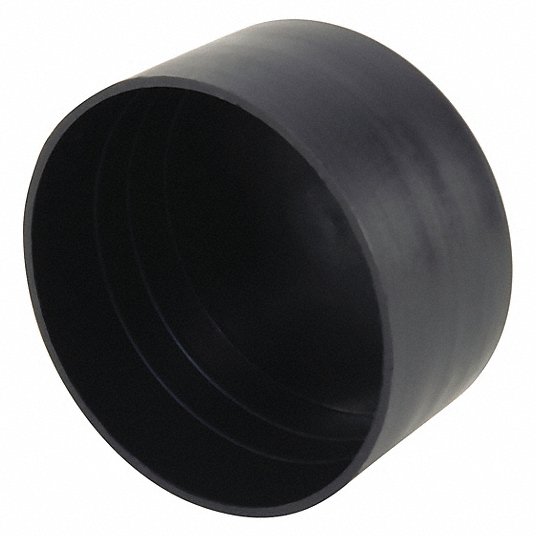

Caplugs CE-317 CE Series 2-1/2 inches NPT Pipe End Thread Protection Cap

Product Description

The CAPLUGS CE-317 is a CE Series plastic pipe cap that is durable and protects against damage and debris. It is designed for easy installation and removal. These caps protect the NPT threads from damage during transit, handling, and storage, and prevent moisture, debris, and rodents from entering the pipe.

• Protects pipe ends
• Keeps dirt and contaminants out of the pipe

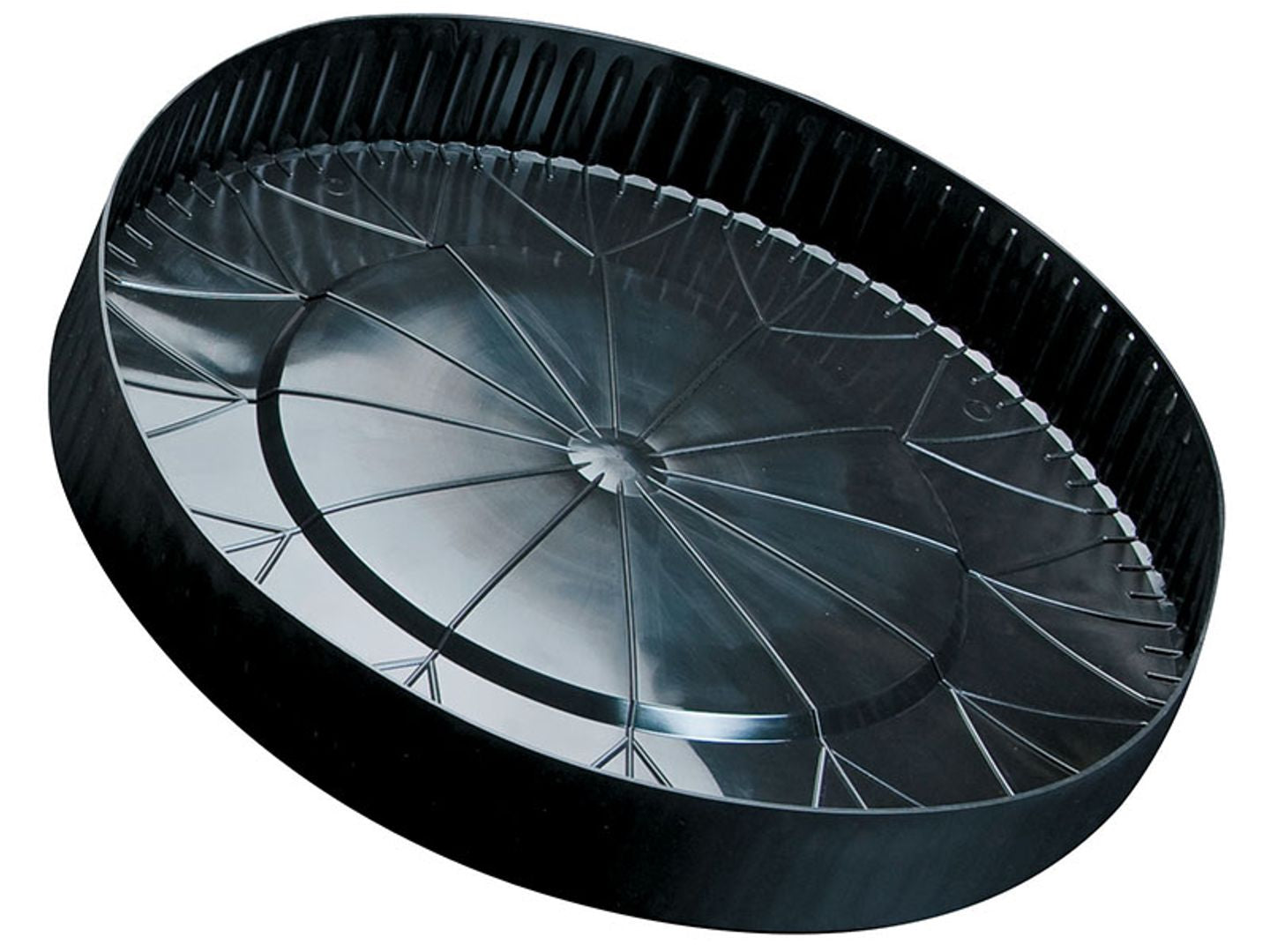

• 14", 16", 18", 20", 24", 30", 36" and 42" have internal ribs for self ventilating and added impact protection

Product Highlights

The CE-317 pipe caps are made of low-density polyethylene and are suitable for use with threaded pipe ends. They feature an NPT taper and have straight walls.

Product Information

Standard Information

• Brand: CAPLUGS
• Manufacturer Part Number: CE-317
• Country of Origin: USA

Technical Specifications

• Material: Low-density polyethylene
• Service Temperature: -94 - 175 F (-70 - 79 C)
• Standard Color: Black
• Fitting Type: Cap
• Color: Black
• Series: CE
• Temperature Rating: -94 to 175 deg F
• For Use With: Threaded Pipe Ends
• Connection 1: 2-1/2 in NPT
• Connection Type 1: NPT
• Connection Size 1: 2-1/2 in
• Thread Size: 2-1/2" NPT
• Type: Thread Protection Cap
• Features: NPT Taper; Protects Pipe Ends
• Fits Tube Size: 2-1/2 in
• Hardness: Shore D41 - D46
• Includes Tear Tab: No
• Use with Surface Type: Threaded
• UNSPSC: 40142310

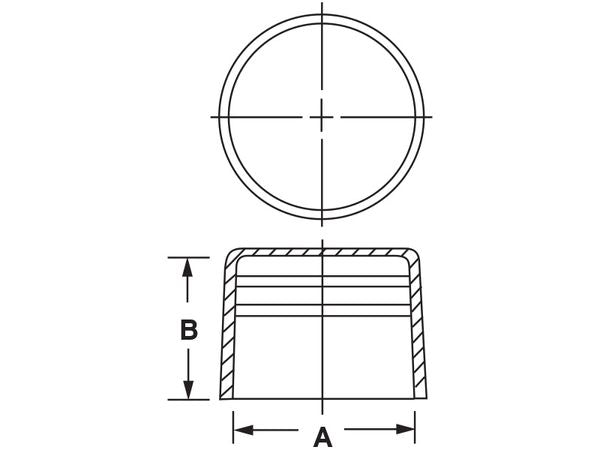

• Cap Top Inside Diameter: 2.87 in
• Inside Length: 1.56 in
• Maximum Continuous Temperature: 150 F
• Maximum Intermittent Temperature: 175 F
