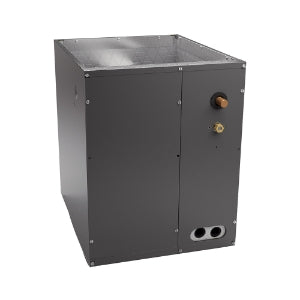

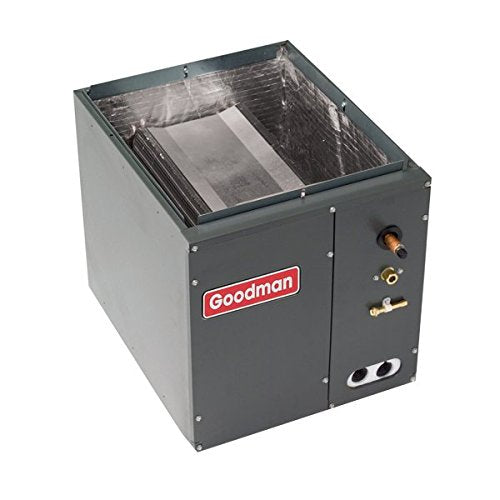

Goodman CAPF3743D6 Evaporator Coil 3-3.5 Ton Vertical Cased R-410A

Product Description

The Goodman CAPF3743D6 is a cased evaporator coil designed for use with heating and cooling systems. This coil is optimized for R-410A refrigerant and is compatible with split system heat pumps and air conditioners. The unit features foil-faced insulation to reduce condensation and all-aluminum construction for durability.

• Includes a 10-year limited warranty when installed by a qualified professional.
• Designed for vertical cased configurations with easy access for maintenance.
• Suitable for both R-410A and R-22 refrigerants.

Product Highlights

This evaporator coil supports high efficiency and effective cooling performance. Its design allows for easy installation in both upflow and downflow applications.

Product Information

Standard Information

• Brand: Goodman
• Model: CAPF3743D6

Technical Specifications

• Coil Configuration: Cased Upflow/Downflow
• Nominal Capacity: 3 - 3.5 ton
• Refrigerant Type: R-22, R-410A
• Liquid Line Size: 3/8 Inch
• Suction Line Size: 7/8 Inch
• Width: 24.5 Inch
• Height: 30 Inch
• Tubing/Fin Construction: Rifled aluminum tubing, enhanced aluminum fins
• Expansion Device - Refrigerant Control: Check Flowrator
