Cantex EZ74TN 3-gang 74 Cu in Ez Box Switch Outlet Box

Product Description

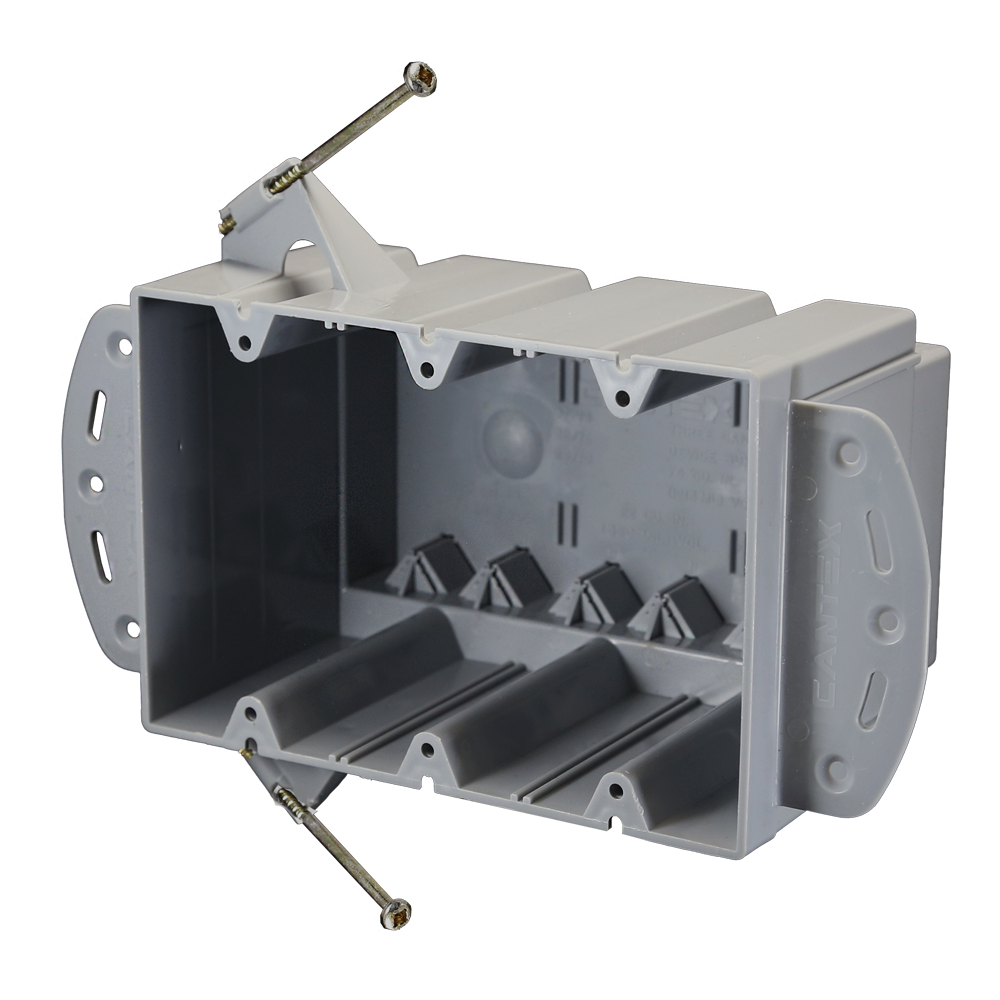

The CANTEX EZ74TN is a 3-gang, 74 cubic inch deep electrical switch and outlet box designed for new work residential and light commercial installations. It ships with molded steel stud brackets, screw-nails for fast attachment, and pre-installed wire clamps for secure conductor entry. The screw-nail design features a sharp point, slotted head, and threaded body, allowing a power screwdriver to drive the fastener directly into aluminum, light to medium grade steel, or wood studs without pre-drilling. Licensed electricians installing new construction framing will find this box suited for switch, outlet, and device rough-in work where a large-volume 3-gang enclosure is required.

This box is intended for new construction framing installations in residential homes and light commercial buildings. It accommodates standard 3-gang device configurations including combinations of switches, duplex receptacles, and other standard wiring devices. The integrated steel stud bracket and screw-nail system reduce installation steps on metal or wood framed walls, making it a practical choice for production electrical work where speed and code compliance both matter.

Key Features

• 74 cubic inch interior volume accommodates 3-gang device configurations with ample wire fill capacity
• Molded steel stud bracket provides secure, rigid mounting without separate hardware
• Screw-nail fasteners install with a power screwdriver into aluminum, light to medium grade steel, or wood studs — no pre-drilling required
• Pre-installed wire clamps secure conductors at entry points
• New work design for use during framing stage before drywall installation

Compatibility

Designed as an OEM-style replacement and new-work solution for standard 3-gang electrical box applications in residential and light commercial framing using wood, aluminum, or light to medium grade steel studs.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize the circuit at the panel before making any wiring connections. The box must be set flush with the finished wall surface per NEC requirements for flush-mounted device boxes. Verify conductor fill does not exceed the 74 cubic inch rated volume when calculating box fill per NEC Article 314.

Technical Specifications

• Gang Count: 3-Gang
• Box Volume: 74 cubic inches
• Box Type: New Work (New Construction)
• Application: Residential and Light Commercial
• Mounting Style: Steel Stud Bracket with Screw-Nails
• Compatible Stud Types: Aluminum, Light to Medium Grade Steel, Wood
• Includes: Screw-Nails, Steel Stud Bracket, Wire Clamps
• Color: Gray
• UPC: 088700043879

Standard Information

• Brand: CANTEX
• Manufacturer Part Number: EZ74TN
