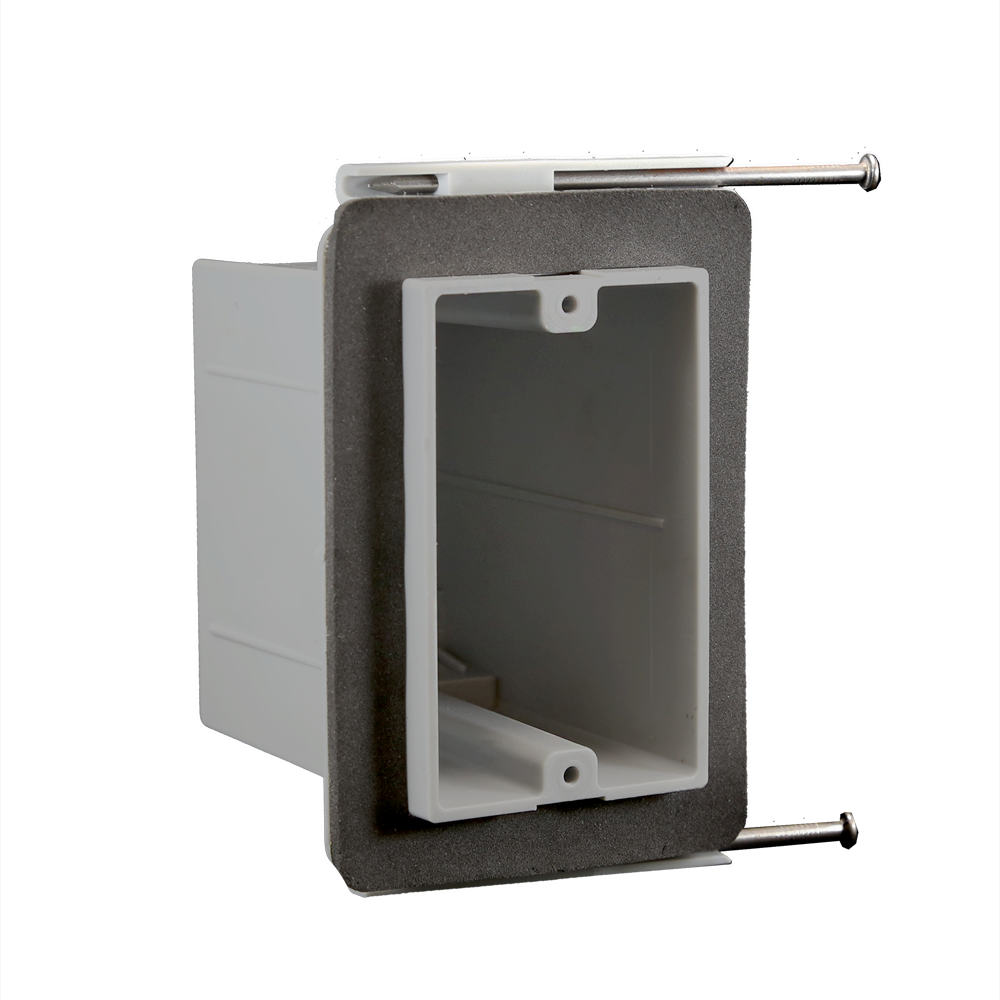

Cantex EZ23SN-RG Vapor Tight Box 1-Gang 23 Cu In

Product Description

Cantex EZ23SN-RG is a 1-gang vapor-tight electrical box with 23 cu in capacity, designed as a compact plastic enclosure for new-work and general outdoor or exterior-wall electrical applications. The box features a drywall flange with foam gasket and foam gaskets over self-clamping cable entry clamps to create a vapor-tight seal. Constructed of resilient plastic for nail-on installation, it measures 5.25 x 4.75 x 3.75 inches and weighs 0.3 lb.

• 23 cu in capacity in a 1-gang form factor for single-device or switch installations
• Drywall flange with foam gasket plus foam seals over self-clamping cable clamps for a vapor-tight seal
• Plastic nail-on design for new-work and exterior-wall applications; dimensions 5.25 x 4.75 x 3.75 in; 0.3 lb; ETL listed, ETL 2-hour fire rated, NEMA OS-4 certified

Product Highlights

1-gang, 23 cu in vapor-tight plastic electrical box with drywall flange, foam gaskets, self-clamping cable clamps, ETL and NEMA certifications

Product Information

Standard Information

• Brand: CANTEX
• Manufacturer Part Number: EZ23SN-RG
• Country of Origin: United States

Technical Specifications

• Brand: Cantex
• Manufacturer: Cantex Industries
• Manufacturer Part Number: EZ23SN-RG
• Model Name: Vapor Tight Box 1-Gang 23 Cu In
• Capacity: 23 cu in
• Number of Gangs: 1-gang
• Material: Plastic
• Mounting Type: Nail-on (new work)
• Application: New work; exterior walls; general outdoor electrical applications
• Gasket: Drywall flange with foam gasket; foam gaskets over cable clamps
• Cable Entry: Self-clamping cable entry clamps
• Certifications: ETL Listed; ETL 2 Hour Fire Rated; NEMA OS-4 Certified
• Country of Origin: United States
• Item Weight: 0.3 Pounds
• Dimensions (L x W x H): 5.25 x 4.75 x 3.75 inches
• UPC: 88700971622
• Included Components: Vapor Tight Box 1g 23 cu in
