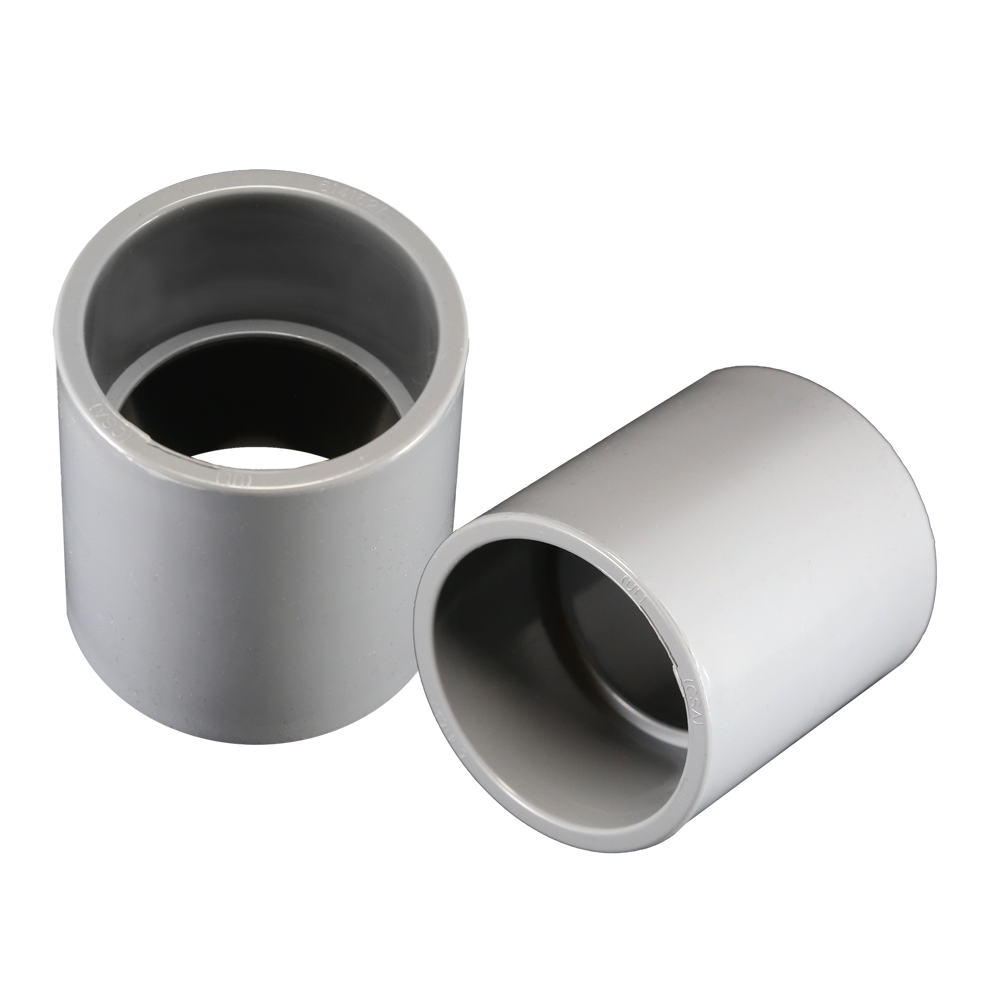

Cantex 6141623 Coupling PVC 1/2 In

Product Description

The Cantex 6141623 is a coupling designed for PVC conduits. This solvent weld coupling is suitable for use with Schedule 40 and Schedule 80 conduit materials. Its overall length is one and one-half inches. The coupling features a center stop that aids in determining the correct depth of connection. It is also suitable for both above ground and underground applications, being non-conductive and resistant to sunlight.

• Material: PVC
• Size: 1/2 inch
• Standards: UL listed

Product Highlights

The Cantex coupling is practical for joining lengths of conduit pipe using two solvent weld socket ends.

Product Information

Standard Information

• Manufacturer: Cantex
• Model: 6141623

Technical Specifications

• Application: Joins lengths of conduit pipe
• Material: PVC
• Color: Gray
• Dimensions: 7/8 in ID x 1-1/16 in OD x 1-1/2 in L
• Suitable For Use With: SCH 40/80 Conduit
• Standards/Approvals: ARRA Compliant, RoHS Compliant, CSA Certified, NEMA TC-3, UL 651 File No. E81590
