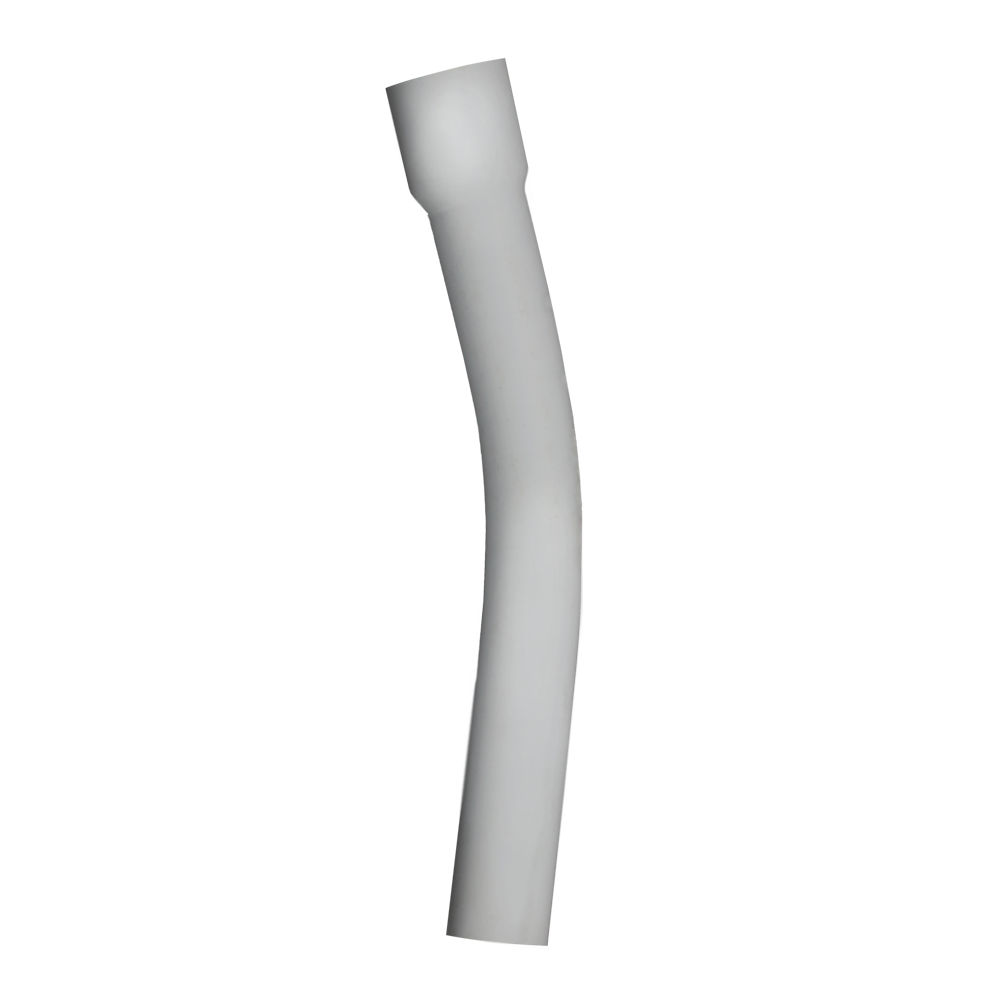

Cantex 5233867 4 Inch Sch 40 Pvc Conduit Elbow 22.5 Deg

Product Description

The CANTEX 5233867 is a Schedule 40 PVC conduit elbow rated for electrical applications, providing a 22.5-degree change of direction in rigid PVC conduit runs. Sized at 4 inches trade size, this fitting is UL listed and manufactured to meet the dimensional requirements of Schedule 40 PVC conduit systems. It is installed by licensed electricians and electrical contractors in both underground and above-grade conduit installations where a shallow-angle direction change is required. The 22.5-degree bend angle allows for gradual routing of conduit around obstructions while maintaining wire pull capacity and minimizing stress on conductors.

This elbow is suited for use in residential, commercial, and light industrial electrical conduit systems. It is commonly installed in direct-burial, concrete-encased, and exposed conduit runs where PVC is the preferred material due to its corrosion resistance and non-conductive properties. The 22.5-degree angle is frequently used in combination with other fittings to achieve custom routing paths in complex electrical installations.

Key Features

• 22.5-degree bend angle for shallow directional changes in conduit runs
• 4-inch trade size accommodates large conductor bundles and feeder circuits
• Schedule 40 PVC construction provides corrosion resistance and non-conductive properties
• UL listed for electrical conduit applications
• Compatible with standard Schedule 40 PVC conduit and fittings of matching trade size

Compatibility

Designed as an OEM-style replacement and standard fitting for use with 4-inch Schedule 40 PVC electrical conduit systems.

Installation Notes

Installation is performed by licensed electricians in accordance with the National Electrical Code (NEC). De-energize all circuits and confirm power is off before working on any conduit system. Solvent-cement both the elbow socket and conduit end per the fitting manufacturer instructions, and allow adequate cure time before pulling wire. Do not use this fitting with Schedule 80 conduit without confirming dimensional compatibility.

Technical Specifications

• Trade Size: 4 inches
• Bend Angle: 22.5 degrees
• Schedule: 40
• Material: PVC
• Listing: UL Listed
• Order Increment: 1

Standard Information

• Brand: CANTEX
• Manufacturer Part Number: 5233867
