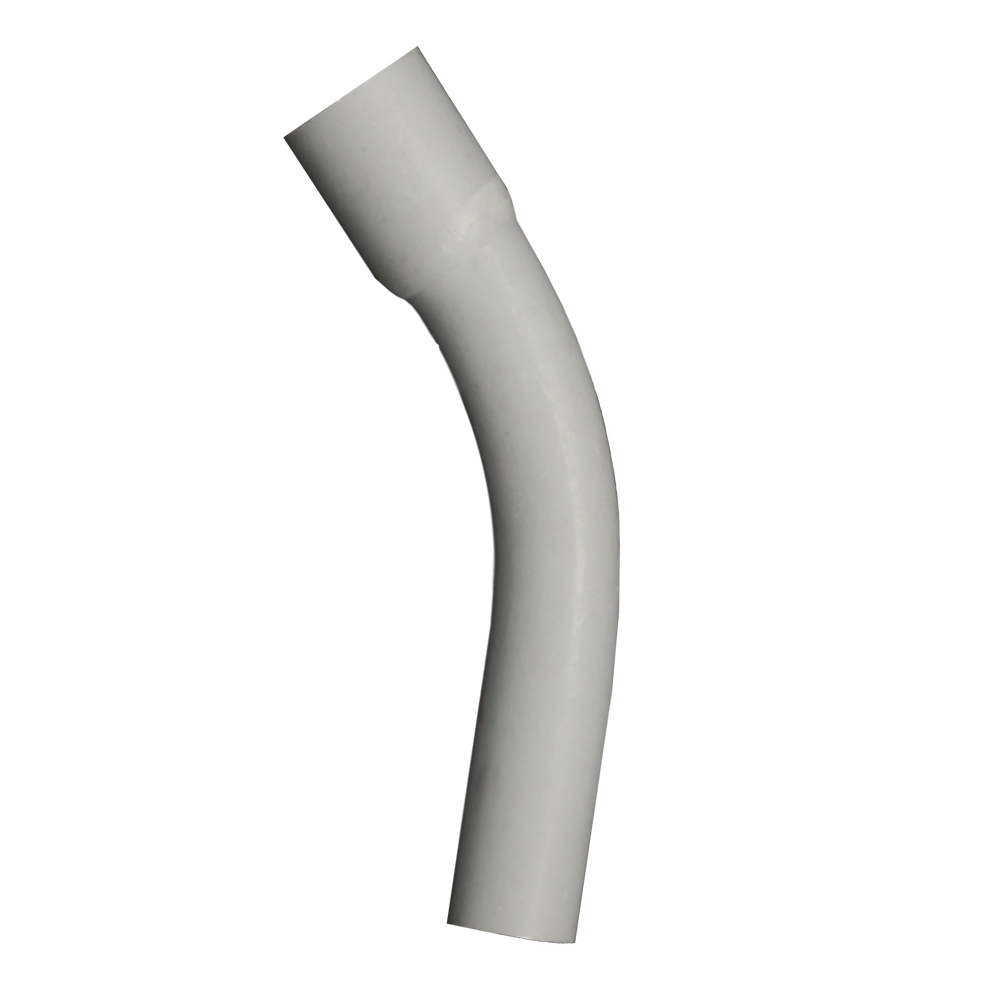

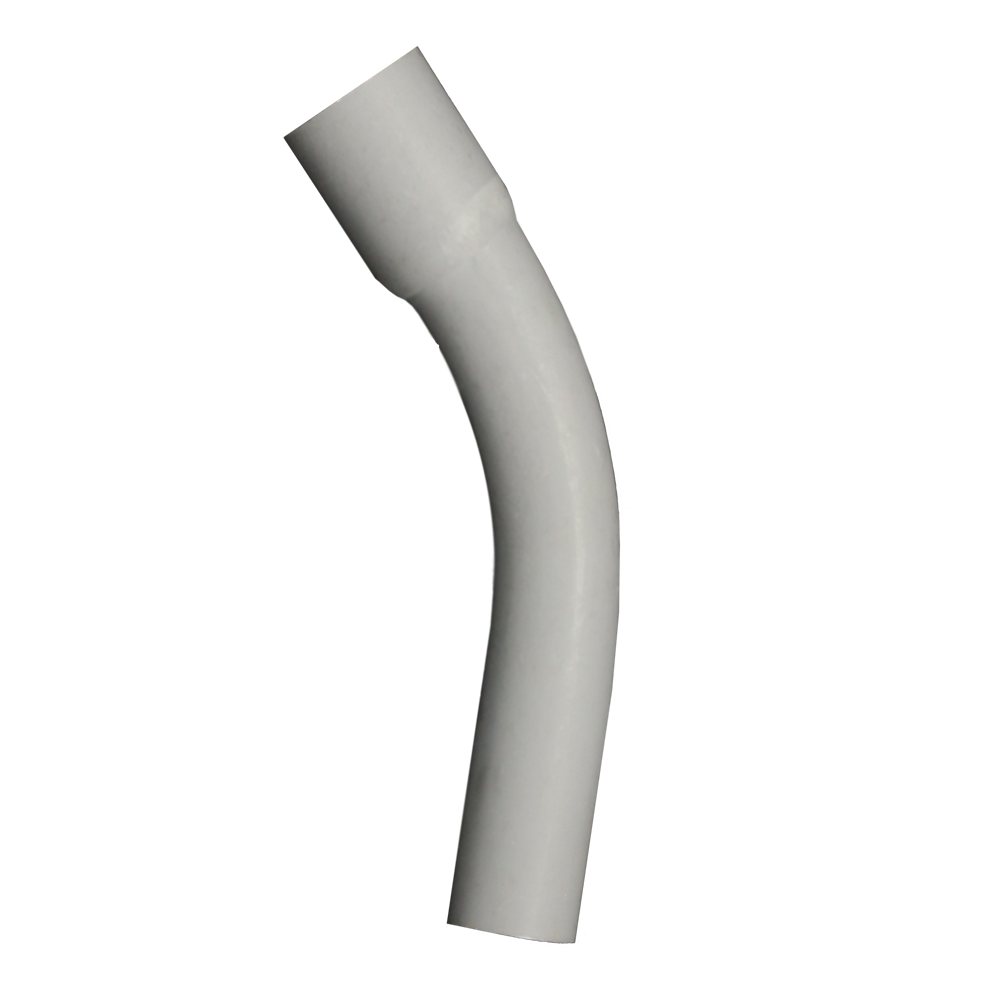

Cantex 5233766 Schedule 40 Pvc 45-degree Elbow 1-1/4 in

Product Description

The CANTEX 5233766 is a Schedule 40 PVC 45-degree elbow designed for use in UL-listed electrical conduit systems. This fitting allows conduit runs to change direction at a 45-degree angle, reducing bend stress on wire and cable during pull-through. Built from rigid PVC, it is lightweight, corrosion-resistant, and suitable for both exposed and concealed electrical installations. The 1-1/4 inch trade size makes it compatible with standard 1-1/4 inch Schedule 40 PVC conduit. Electricians and electrical contractors install this fitting as part of raceway systems in residential, commercial, and light industrial applications.

This elbow is used in PVC conduit raceway systems where a 45-degree directional change is needed along a conduit run. Typical installations include underground ductbanks, in-slab conduit, exterior wall runs, and interior raceway systems where metal conduit is not required. The Schedule 40 wall thickness meets standard electrical conduit specifications for protection of conductors in these environments.

Key Features

• 45-degree sweep angle for smooth wire and cable pulling through direction changes
• Schedule 40 PVC construction provides corrosion resistance and lightweight handling
• 1-1/4 inch trade size fits standard Schedule 40 PVC conduit of the same trade size
• UL listed for electrical conduit use in applicable raceway applications
• Solvent-weld socket ends for secure, watertight connections

Compatibility

Designed as an OEM-style fitting for use with 1-1/4 inch Schedule 40 PVC electrical conduit systems in standard raceway installations.

Installation Notes

Installation is performed by licensed electricians in accordance with applicable NEC requirements for PVC conduit systems. De-energize all circuits in the conduit run before making connections or pulling wire. Use approved PVC conduit solvent cement and primer for socket-end joints to ensure a secure, code-compliant bond. Support conduit runs at intervals required by the NEC and avoid over-bending or heating the fitting during installation.

Technical Specifications

• Trade Size: 1-1/4 inches
• Conduit Type: Schedule 40 PVC Electrical Conduit
• Bend Angle: 45 degrees
• Listing: UL Listed
• Order Increment: 1

Standard Information

• Brand: CANTEX
• Manufacturer Part Number: 5233766
