Cantex 5144009 5144 Series 2-1/2 in. Straight Schedule 40 PVC Conduit Bell End

Product Description

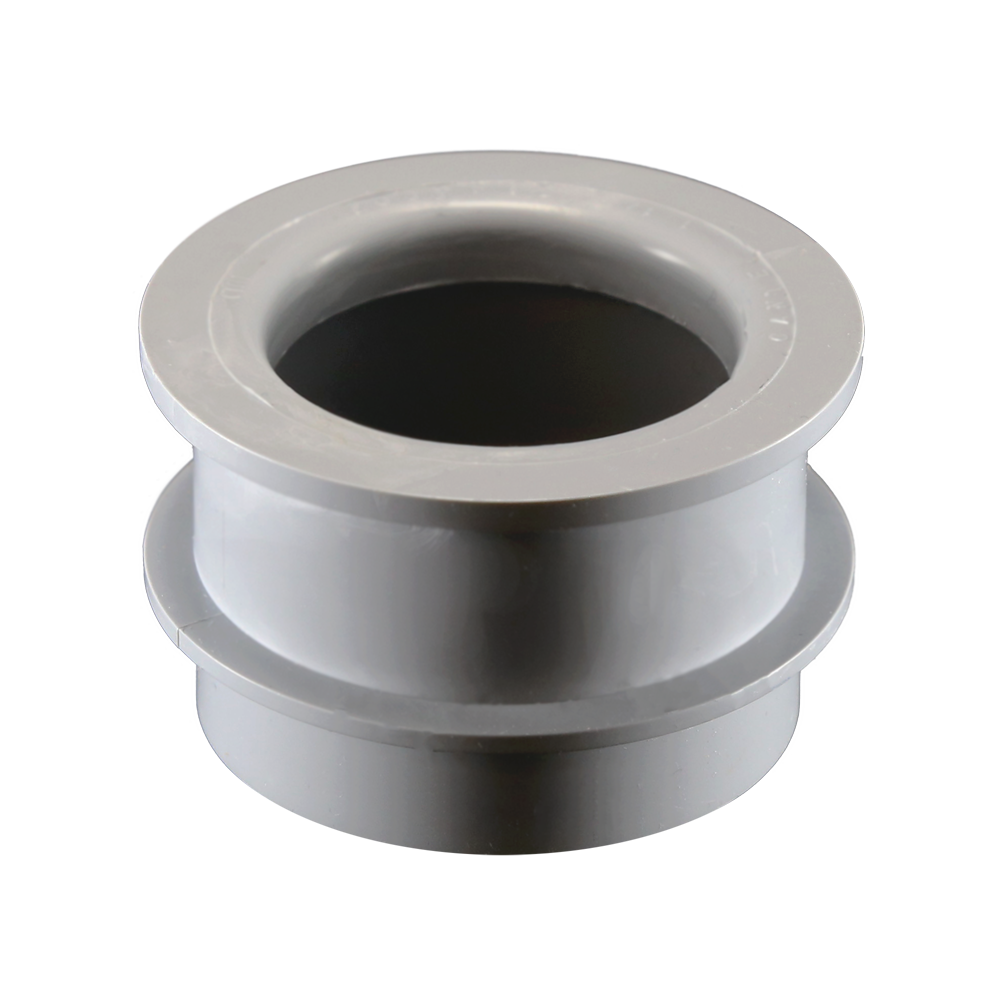

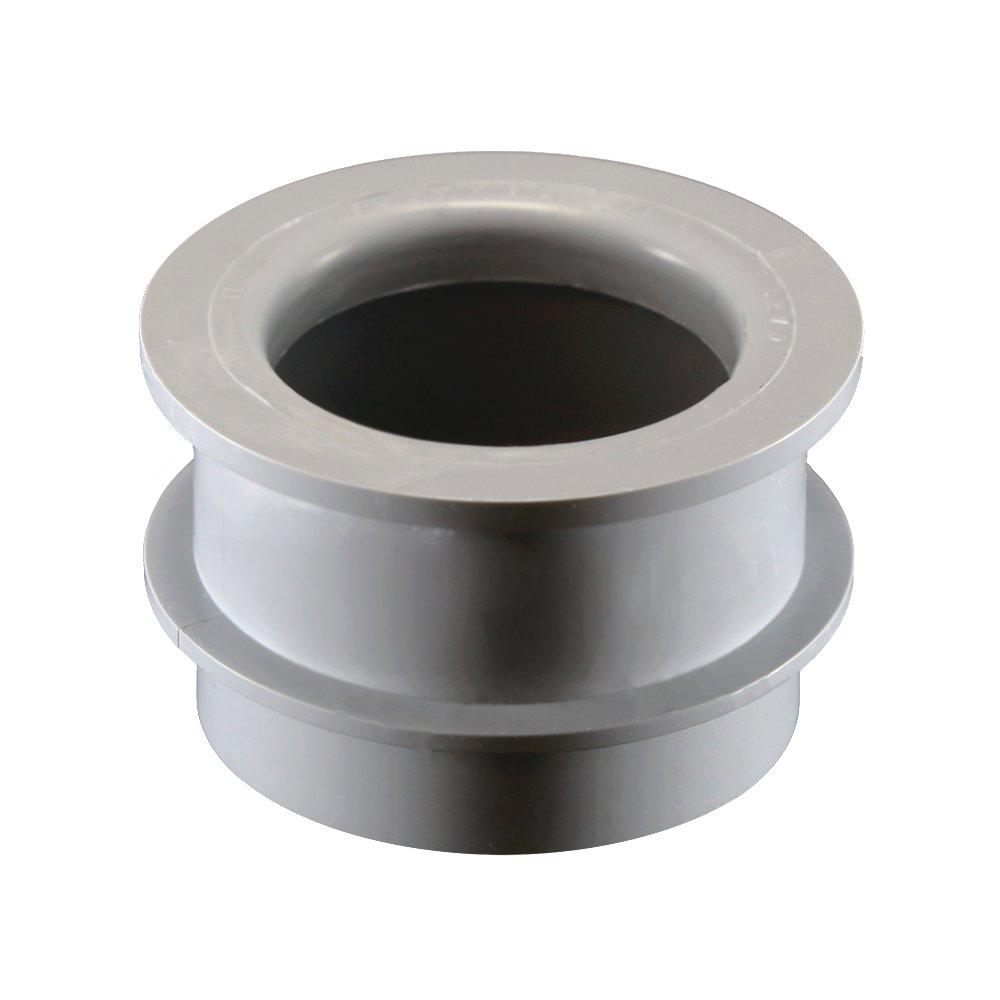

The Cantex 5144009, a molded conduit end bell, is designed for use with schedule 40 and schedule 80 PVC conduit. This end bell creates a smooth entry point for wiring being pulled through concrete vault walls. With a nominal size of two and a half inches, it measures two and a half inches inside diameter and three and three-eighths inches outside diameter. The product ensures compliant and safe wiring connections.

• Constructed from durable PVC material
• Meets various compliance standards including UL and CSA certifications
• Easy installation for efficient conduit setups

Product Highlights

This end bell is ideal for protecting wiring in challenging environments such as concrete vaults. It facilitates safe and secure conduit installations.

Product Information

Standard Information

• Brand: Cantex
• MPN: 5144009

Technical Specifications

• Size: 2-1/2 inches
• Color: Gray
• Material: PVC
• Dimensions: 2-1/2 inches ID x 3-3/8 inches OD x 1-7/8 inches length
• Standards/Approvals: UL Listed, CSA Certified, NEMA TC-9, ARRA Compliant, RoHS Compliant
• Suitable For Use With: Schedule 40/80 Conduit
• Type: Molded
