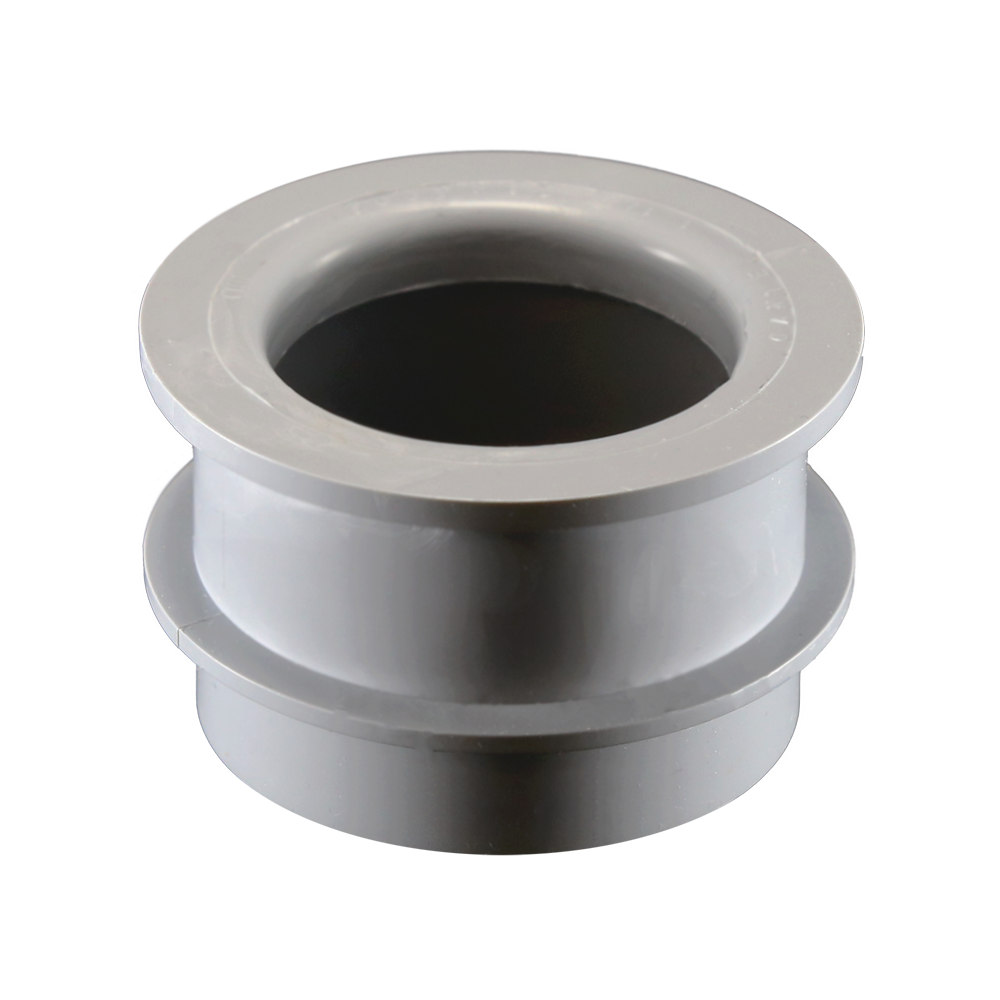

Cantex 5144006 Schedule 40 PVC Bell End 1-1/4 Inch

Product Description

Cantex 5144006 is a molded conduit end bell designed for use with Schedule 40 and Schedule 80 conduit. The end bell is a crucial component for a safe and efficient installation. Its size is one and one-fourth inches with inner and outer diameter specifications of one point three seven five inches and two point one two five inches respectively, and it has a length of one point three one three inches.

• Designed for Schedule 40 and Schedule 80 PVC conduit
• Molded design provides durability and longevity
• Used to provide a smooth entrance to the conduit in concrete vault walls

Product Highlights

This end bell helps protect wiring while being pulled through concrete vault walls.

Product Information

Standard Information

• Brand: Cantex
• Manufacturer Part Number: 5144006

Technical Specifications

• Material: PVC
• Color: Gray
• Dimensions: 1.375 in ID x 2.125 in OD x 1.313 in L
• Type: Molded
• Standards/Approvals: ARRA Compliant, RoHS Compliant, CSA Certified, NEMA TC-9, UL Listed
• Suitable For Use With: SCH 40/80 Conduit
• Fitting Type: Coupling
